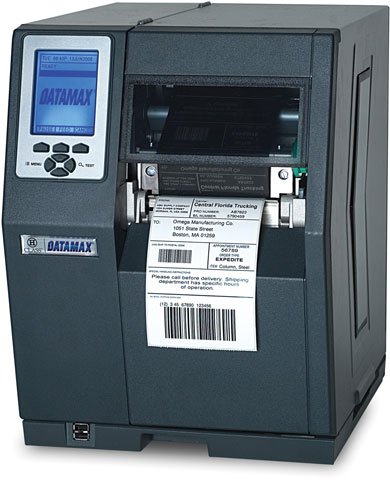

Datamax-O'Neil H-4212 – Barcode Label Printer – 203 dpi – Direct Thermal

Part Number: C52-00-48000007
Model: H-4212
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Direct Thermal
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  4 Inch Direct Thermal 8MB Flash Ethernet/Serial/Parallel/USB US Power Supply
Explore all Honeywell H-4212 Barcode Label Printers
Add to Quote
Datamax-O'Neil C52-00-48000007 Barcode Label Printer
Datamax-O'Neil C52-00-48000007 Barcode Label Printer
Datamax-O'Neil C52-00-48000007 Barcode Label Printer Datamax-O'Neil C52-00-48000007 Barcode Label Printer
Full specifications (PDF)

Honeywell H-4212 Barcode Label Printer Model Overview

The H-4212 features a 4 inch print width, a 200 dpi print resolution, a 12" per second print speed, a large graphic display provide optimum viewing and control of all printer functions, a high-speed 32 bit/200MHz multi-tasking processor decreases processing times to increase data throughput, Standard 16MB DRAM and 8MB FLASH memory assures the space needed for seamless processing of the most demanding applications.The H-4212 provides Standard Ethernet, USB, Parallel and Serial interfaces ensure easy host connectivity across multiple platforms,Standard SDIO and USB Host device ports provide support for additional memory and application versatility
Datamax-O'Neil C52-00-48000007 Barcode Label Printer Overview

The Datamax H-4212 is the most advanced and feature-rich printer solution designed for today's dynamic enterprise applications. H-4212 printer provide throughput that is up to twice as fast as other printers and its gear-driven design provides rugged and reliable performance for 24x7 mission-critical service with short display.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Extension
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • RSS
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Label
  • Continuous Tag
  • Ticket Stock
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
9"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13"
Width:
12.6"
Depth:
18.9"
Miscellaneous
Package Contents:
  • Datamax H-4212 Label Printer
  • Accessories CD
Additional Information:

Real Time Clock:

  • Printer stores time and date with battery backup; Time stamp at print capability

Graphics Support:

  • PCX, .BMP, .IMG, and Datamax ASCII Format files
Platform Supported:
PC
Certifications & Standards:

Safety Standard:

  • FCC
  • CE
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43212108
