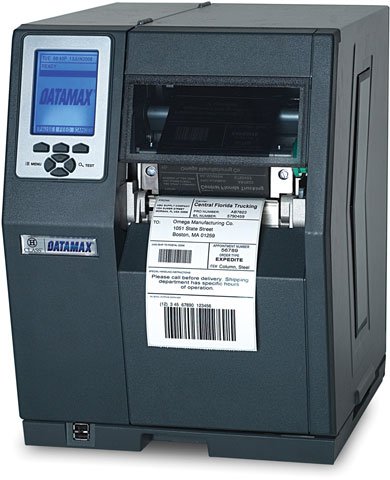

Datamax-O'Neil H-4310 – Barcode Label Printer – 300 dpi, 305 dpi – Thermal Transfer – Peeler, Rewinder

Part Number: C43-00-48900007

Model: H-4310

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Ethernet, Parallel, Serial (RS-232), USB

Print Resolution

300 dpi, 305 dpi

Product Description:

Direct Thermal Transfer Printer (8MB Flash, Tall Dislay, Peel Present, Internal Rewind)

Explore all Honeywell H-4310 Barcode Label Printers

Add to Quote

Datamax-O'Neil C43-00-48900007 Barcode Label Printer

Overview

Full specifications (PDF)

Honeywell H-4310 Barcode Label Printer Model Overview

The Datamax-O'Neil H-Class: H-4310 Industrial Printer features a 4 inch print width, a 300 dpi print resolution, a 10" per second print speed, a large graphic display provide optimum viewing and control of all printer functions, and a high-speed 32 bit/200MHz multi-tasking processor that decreases processing times to increase data throughput. The H-4310 has both standard 16MB DRAM and 8MB FLASH memory, assuring the space needed for seamless processing of the most demanding applications. The Datamax-O'Neil H-Class: H-4310 Industrial Printer provides Standard Ethernet, USB, Parallel and Serial interfaces ensure easy host connectivity across multiple platforms,Standard SDIO and USB Host device ports provide support for additional memory and application versatility.

Datamax-O'Neil C43-00-48900007 Barcode Label Printer Overview

The Industrial Work Horse

The H-Class is a rugged and versatile printer that offers one of the most feature rich solutions for dynamic enterprise applications and is twice as fast as other printers in its class. The H-Class is ideal for high volume label printing in manufacturing, warehouse, transportation, and high resolution labeling. H-Class reduces the total cost of ownership with its gear driven design to provide rugged and reliable performance for 24X7 mission critical services.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

10 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Width:

4.16"

Application/Usage:

Desktop

Print Technology:

Direct Thermal /Thermal Transfer

Memory

Standard Memory:

16 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Media Types & Handling

Media Type:

Roll Fed
Fanfold
Die-cut Label
Continuous Label
Continuous Tag
Ticket Stock
Perforated Label

Maximum Roll Diameter:

Maximum Label Width:

4.65"

Power Description

Power Source:

AC Supply

Physical Characteristics

Height:

13"

Width:

12.6"

Depth:

18.9"

Weight (Approximate):

40 lb

Miscellaneous

Platform Supported:

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108
