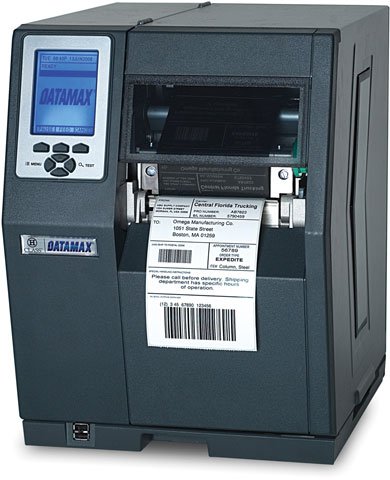

Datamax-O'Neil H-4212 – Barcode Label Printer – 203 dpi

Part Number: C42-00-480000S7
Model: H-4212
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
4.75 inch

Product Description:

  H-4212 Direct Thermal-Thermal Transfer Printer (203 dpi, 4.1 Inch Print Width, 12 ips Print Speed, Tall Display and Scanner)
Explore all Honeywell H-4212 Barcode Label Printers
Add to Quote
Datamax-O'Neil C42-00-480000S7 Barcode Label Printer
Datamax-O'Neil C42-00-480000S7 Barcode Label Printer
Datamax-O'Neil C42-00-480000S7 Barcode Label Printer Datamax-O'Neil C42-00-480000S7 Barcode Label Printer
Full specifications (PDF)

Honeywell H-4212 Barcode Label Printer Model Overview

The H-4212 features a 4 inch print width, a 200 dpi print resolution, a 12" per second print speed, a large graphic display provide optimum viewing and control of all printer functions, a high-speed 32 bit/200MHz multi-tasking processor decreases processing times to increase data throughput, Standard 16MB DRAM and 8MB FLASH memory assures the space needed for seamless processing of the most demanding applications.The H-4212 provides Standard Ethernet, USB, Parallel and Serial interfaces ensure easy host connectivity across multiple platforms,Standard SDIO and USB Host device ports provide support for additional memory and application versatility
Datamax-O'Neil C42-00-480000S7 Barcode Label Printer Overview

The Industrial Work Horse

The H-Class is a rugged and versatile printer that offers one of the most feature rich solutions for dynamic enterprise applications and is twice as fast as other printers in its class. The H-Class is ideal for high volume label printing in manufacturing, warehouse, transportation, and high resolution labeling. H-Class reduces the total cost of ownership with its gear driven design to provide rugged and reliable performance for 24X7 mission critical services.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 3 of 9
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Standard 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Addendums
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • Planet Code
  • FIM
  • USPS-4 State
  • Maxi Code
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Codablock
  • Code 16K
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • GS1 DataBar
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Mirror Printing
  • Linear Bar Code Scanner
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Continuous Tag
  • Perforated Label
  • Ticket Stock
  • Black Mark
  • Roll Fed
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • PLB
  • PLI
  • PLZ
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13"
Width:
12.6"
Depth:
18.9"
Weight (Approximate):
40 lb
Miscellaneous
Package Contents:
  • H-Class H-4212 Label Printer
  • Software CD
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
