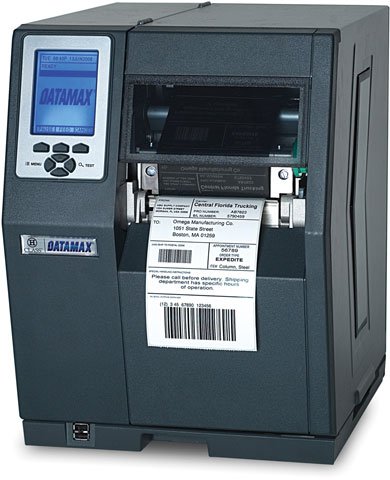

Datamax-O'Neil H-4606 – Barcode Label Printer – 600 dpi – Direct Thermal – Rewinder

Part Number: C36-00-48400007
Model: H-4606
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printing Technology
Direct Thermal
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
600 dpi
Printer Options
Rewinder

Product Description:

  H-4606 BI-TT INT REW 3 PLSTC HUB 8MB FLASH TALL DISPLAY
Explore all Datamax H-4606 Barcode Label Printers
Add to Quote
Datamax-O'Neil C36-00-48400007 Barcode Label Printer
Datamax-O'Neil C36-00-48400007 Barcode Label Printer
Datamax-O'Neil C36-00-48400007 Barcode Label Printer Datamax-O'Neil C36-00-48400007 Barcode Label Printer
Full specifications (PDF)

Datamax H-4606 Barcode Label Printer Model Overview

The H-4606 features a 4 inch print width, a 600 dpi print resolution, a 6" per second print speed, a large graphic display provide optimum viewing and control of all printer functions, a high-speed 32 bit/200MHz multi-tasking processor decreases processing times to increase data throughput, Standard 16MB DRAM and 8MB FLASH memory assures the space needed for seamless processing of the most demanding applications.The H-4606 provides Standard Ethernet, USB, Parallel and Serial interfaces ensure easy host connectivity across multiple platforms,Standard SDIO and USB Host device ports provide support for additional memory and application versatility
Datamax-O'Neil C36-00-48400007 Barcode Label Printer Overview

The Industrial Work Horse

The H-Class is a rugged and versatile printer that offers one of the most feature rich solutions for dynamic enterprise applications and is twice as fast as other printers in its class. The H-Class is ideal for high volume label printing in manufacturing, warehouse, transportation, and high resolution labeling. H-Class reduces the total cost of ownership with its gear driven design to provide rugged and reliable performance for 24X7 mission critical services.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
600
Maximum Print Width:
4.16"
Barcode Symbology Supported:
  • Code 3 of 9
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Standard 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Addendums
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • Planet Code
  • FIM
  • USPS-4 State
  • Maxi Code
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Codablock
  • Code 16K
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • GS1 DataBar
Real Time Clock:
Yes
Rewinder:
Yes
Application/Usage:
Desktop
Features:
  • Mirror Printing
  • Media Supply Hub
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Continuous Tag
  • Perforated Label
  • Ticket Stock
  • Black Mark
  • Roll Fed
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • PLB
  • PLI
  • PLZ
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13"
Width:
12.6"
Depth:
18.9"
Weight (Approximate):
40 lb
Miscellaneous
Package Contents:
  • H-Class H-4606 Label Printer
  • Software CD
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
