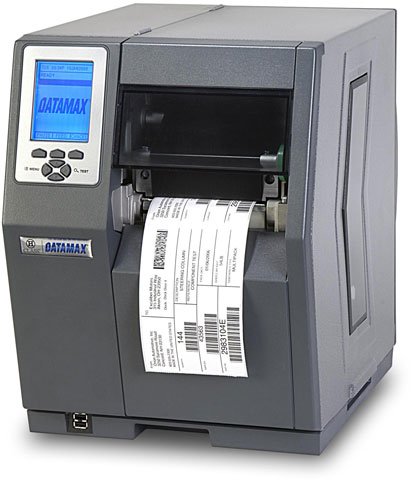

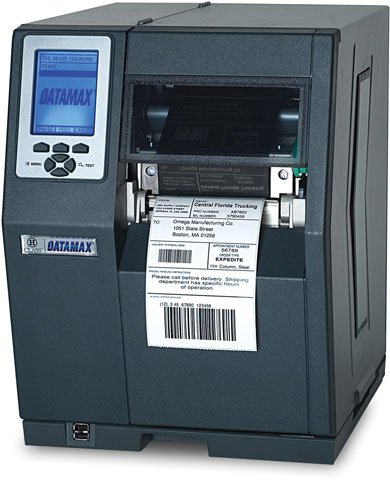

Datamax-O'Neil H-4212X – Barcode Label Printer – 203 dpi

Part Number: C32-00-480000Z4
Model: H-4212X

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
4.75 inch

Product Description:

  4".DT/TT,RFID READY,ETH/SER/USB,US P/S

Honeywell H-4212X Barcode Label Printer Model Overview

The Datamax-O-Neil H-4212X takes printing into the next era of comprehensive thermal and RFID label printing. The new Datamax-O-Neil H-4212X heavy-duty printer provides a state of the art modular design offering the most flexible and accurate print quality in the industry today. The H-4212X makes available the most advanced diagnostics using a sophisticated approach in maximizing the life of the print head while clearly reducing total cost of ownership. In keeping with Datamax-O-Neil high standards, the new H-4212X incorporates a patented precision crafted design that is unmatched. This heavy-duty die cast aluminum frame assures reliable performance with high quality results. The H-4212X printers are designed for the most rugged environments supporting applications in such places as manufacturing, shipping and warehousing, but sophisticated enough to support high-resolution graphics and text on small labels.
Datamax-O'Neil C32-00-480000Z4 Barcode Label Printer Overview

The Datamax H-4212X thermal barcode printer is the most advanced and feature rich printer solution designed for today's dynamic enterprise applications. This printer provides throughput that is up to twice as fast as other printers in its class, and its gear-driven design provides rugged and reliable performance for 24x7 mission-critical service. Modular construction increases up-time for the highest levels of user productivity, and helps provide the lowest cost of ownership. This printer offers the industry's largest graphical display that provides an easy-to-read view for quick navigation and printer notifications.

Technical Information
Recommended Use:
RFID Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
200
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Extension
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • RSS
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
RFID:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Paper
  • Continuous Form
  • Tag
  • Ticket Stock
  • Perforated Label
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
16.4"
Width:
12.6"
Depth:
19.3"
Miscellaneous
Additional Information:
  • Three-inch Media Hub
  • Graphics Supported : .PCX, .BMP, .IMG, and Datamax ASCII Format files
Platform Supported:
PC
Item Numbers
UNSPSC: 43212108
