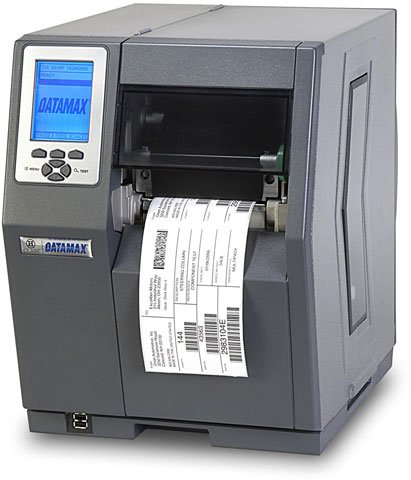

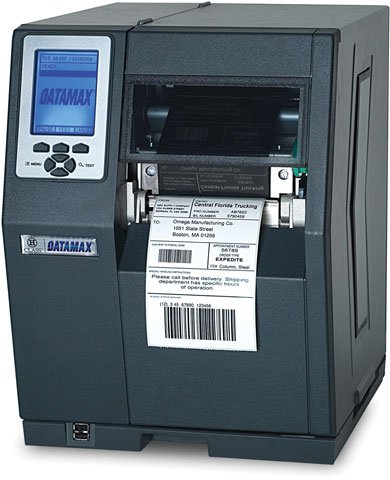

Datamax-O'Neil H-4212X – Barcode Label Printer – 203 dpi

Part Number: C32-00-48000004
Model: H-4212X

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
4.75 inch

Product Description:

  Direct Thermal-Thermal Transfer 4.09" width, 12"/sec, 203 dpi, Serial-Parallel-USB-Ethernet interface, 3" media hub and US power cord.

Honeywell H-4212X Barcode Label Printer Model Overview

The Datamax-O-Neil H-4212X takes printing into the next era of comprehensive thermal and RFID label printing. The new Datamax-O-Neil H-4212X heavy-duty printer provides a state of the art modular design offering the most flexible and accurate print quality in the industry today. The H-4212X makes available the most advanced diagnostics using a sophisticated approach in maximizing the life of the print head while clearly reducing total cost of ownership. In keeping with Datamax-O-Neil high standards, the new H-4212X incorporates a patented precision crafted design that is unmatched. This heavy-duty die cast aluminum frame assures reliable performance with high quality results. The H-4212X printers are designed for the most rugged environments supporting applications in such places as manufacturing, shipping and warehousing, but sophisticated enough to support high-resolution graphics and text on small labels.
Datamax-O'Neil C32-00-48000004 Barcode Label Printer Overview

The Datamax H-4212X is the most advanced and feature-rich printer solution designed for today's dynamic enterprise applications. H-4212X printer provide throughput that is up to twice as fast as other printers and its gear-driven design provides rugged and reliable performance for 24x7 mission-critical service . Modular construction increases up-time for the highest levels of user productivity, and helps provide the lowest cost of ownership.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
200
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Extension
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • RSS
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Label
  • Continuous Tag
  • Ticket Stock
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
9"
Maximum Label Length:
99"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
16.4"
Width:
12.6"
Depth:
19.3"
Miscellaneous
Package Contents:
  • Datamax H-4212X Label Pinter
  • Accessories CD
Additional Information:

Real Time Clock:

  • Printer stores time and date with battery backup; Time stamp at print capability

Graphics Support:

  • PCX, .BMP, .IMG, and Datamax ASCII Format files
Platform Supported:
PC
Certifications & Standards:

Safety Standard:

  • FCC
  • CE
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0053926378494
UPC: 053926378494
EAN: 0053926378494
UNSPSC: 43212108
