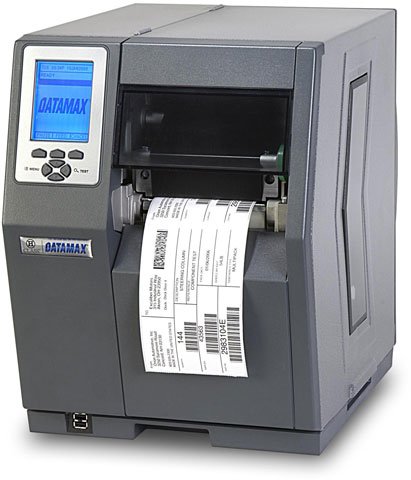

Datamax-O'Neil H-4212X – Barcode Label Printer – 203 dpi – Direct Thermal – Rewinder

Part Number: C32-00-08400004
Model: H-4212X

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Direct Thermal
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  H-4212X, Printer, 4", Direct Thermal, Serial/Parallel/Usb/Ethernet, Internal Rewind, 203Dpi, 12 Ips, Power Cord Included

Honeywell H-4212X Barcode Label Printer Model Overview

The Datamax-O-Neil H-4212X takes printing into the next era of comprehensive thermal and RFID label printing. The new Datamax-O-Neil H-4212X heavy-duty printer provides a state of the art modular design offering the most flexible and accurate print quality in the industry today. The H-4212X makes available the most advanced diagnostics using a sophisticated approach in maximizing the life of the print head while clearly reducing total cost of ownership. In keeping with Datamax-O-Neil high standards, the new H-4212X incorporates a patented precision crafted design that is unmatched. This heavy-duty die cast aluminum frame assures reliable performance with high quality results. The H-4212X printers are designed for the most rugged environments supporting applications in such places as manufacturing, shipping and warehousing, but sophisticated enough to support high-resolution graphics and text on small labels.
Datamax-O'Neil C32-00-08400004 Barcode Label Printer Overview

The Datamax H-4212X is the most advanced and feature rich printer solution designed for today's dynamic enterprise applications. H-4212X printer provide throughput that is up to twice as fast as other printers and its gear driven design provides rugged and reliable performance for 24x7 mission critical service with short display.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
200
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Extension
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • RSS
Print Technology:
Direct Thermal
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Label
  • Continuous Tag
  • Ticket Stock
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Label Core Size:
3"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
16.4"
Width:
12.6"
Depth:
19.3"
Miscellaneous
Additional Information:

Graphics Support : .PCX, .BMP, .IMG, and Datamax ASCII Format files

Platform Supported:
PC
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 45101512
