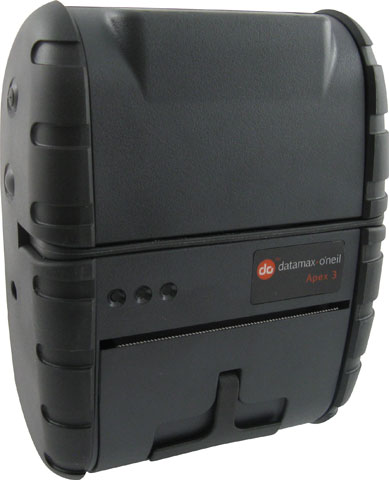

Datamax-O'Neil 78828S1R-2 Portable Barcode Printer

Part Number: 78828S1R-2
Model: Apex 3

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printer Type
Mobile
Printing Technology
Direct Thermal
Print Resolution
203 dpi
Max Print Width
3.25 inch

Product Description:

  RS232 and Wi-Fi Interfaces, Magnetic Card Reader.

Datamax-O'Neil Apex 3 Portable Barcode Printer Model Overview

The Datamax-O'Neil Apex 3 Durable Mobile Receipt Printer offers a solution to the demand for an affordable, light weight and compact three-inch receipt printer without compromising on quality and reliability. The Datamax-O'Neil Apex 3 Durable Mobile Receipt Printer prints a receipt of up to 3.13" wide and has the key features and functions required to meet the expanding requirements associated with retail, hospitality, law enforcement, car rental and field service applications. Lightweight and small enough to carry through a complete shift, the Datamax-O'Neil Apex 3 Durable Mobile Receipt Printer can be worn on a belt strap or optional belt strap without feeling cumbersome. Easy to use with its simple paper loading system and high capacity battery that lasts through a 12 hour shift, the Datamax-O'Neil Apex 3 Durable Mobile Receipt Printer will keep up with the mobile worker during a busy shift while keeping your costs at bay.
Datamax-O'Neil 78828S1R-2 Portable Barcode Printer Overview

The Apex 3 offers a solution to the demand for an affordable, light weight and compact three-inch receipt printer without compromising on quality and reliability. The Apex 3 prints a receipt of up to 3.149" wide and has the key features and functions required to meet the expanding requirements associated with retail, hospitality, law enforcement, car rental and field service applications.The Apex 3 comes standard with Bluetooth V2.0 communication for wireless personal area networking (WPAN).

Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
2 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
2.83"
Barcode Symbology Supported:
  • Code 39
  • Code 128-C
  • Code 128-A
  • Code 128-B
  • UCC/EAN 128
  • Interleaved 2 of 5
  • EAN
  • UPC
  • JAN
  • PDF-417
  • Codabar
Features:
Magnetic Card Reader
Print Technology:
Direct Thermal
Memory
Standard Memory:
1 MB
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11g
Media Types & Handling
Media Type:
Direct Thermal Paper
Media Thickness:
4 mil
Maximum Roll Diameter:
1.37"
Maximum Label Width:
3.14"
Maximum Label Length:
6"
Label Core Size:
0.40"
Power Description
Power Source:
Battery
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Rechargeable:
Yes
Physical Characteristics
Form Factor:
Portable
Height:
6.1"
Width:
5"
Depth:
2.3"
Weight (Approximate):
1.66 lb
Miscellaneous
Package Contents:
  • Apex 3 Receipt Printer
  • 1 x Battery
  • 1 x Roll of Media
  • 1 x AC Adapter
  • 1 x Belt Strap
Power Adapter Included:
Yes
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 45101512

Recommended Accessories

Category

  • Batteries (3)
  • Cables, Connectors, and Adapters (1)
  • Docks and Cradles (2)
  • Portable Barcode Printer Accessories (7)
  • Printer Accessories (1)
  • Scanner Accessories (1)
  • Spare Parts (4)

Recommended Accessories for Model: Datamax-O'Neil 78828S1R-2 Portable Barcode Printer

Top Batteries Purchased With Datamax-O'Neil 78828S1R-2

Top Cables, Connectors, and Adapters Purchased With Datamax-O'Neil 78828S1R-2

Top Docks and Cradles Purchased With Datamax-O'Neil 78828S1R-2

Top Portable Barcode Printer Accessories Purchased With Datamax-O'Neil 78828S1R-2

See All Portable Barcode Printer Accessories for Datamax-O'Neil 78828S1R-2 Portable Barcode Printer >

Top Printer Accessories Purchased With Datamax-O'Neil 78828S1R-2

Top Scanner Accessories Purchased With Datamax-O'Neil 78828S1R-2

Top Spare Parts Purchased With Datamax-O'Neil 78828S1R-2

See All Spare Parts for Datamax-O'Neil 78828S1R-2 Portable Barcode Printer >
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Datamax-O'Neil 78828S1R-2 Portable Barcode Printer is also known as ONE-78828S1R2 or 78828S1R2.
