Datamax-O'Neil 200466-100 Portable Barcode Printer

Part Number: 200466-100
Model: PrintPad
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Receipt Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
2 in/s
Maximum Print Resolution (dpi)
203

Product Description:

  CN3e, PRINTPAD, 4", DIRECT THERMAL, SERIAL/USB/BLUETOOTH, DEX, CARD READER, 4MB FLASH, 2MB RAM, 2 BATTERIES, PAPER, HAND STRAP, CLEANING CARD AND USER MANUAL, REQUIRES AC ADAPTOR 220515-101
Explore all Honeywell Print Pad Portable Barcode Printers
Add to Quote
Datamax-O'Neil 200466-100 Portable Barcode Printer
Datamax-O'Neil 200466-100 Portable Barcode Printer
Datamax-O'Neil 200466-100 Portable Barcode Printer Datamax-O'Neil 200466-100 Portable Barcode Printer
Full specifications (PDF)

Honeywell Print Pad Portable Barcode Printer Model Overview

Integrated Printing Systems combine O'Neil's PrintPad with the industry's leading mobile computers to provide the ultimate integration and portability for users in route accounting, direct store delivery (DSD), and other field. This innovative onepiece printer system combines an enhanced 4" wide thermal printer, the 4te, with an embedded communications charging cradle designed for use in a number of different applications with the Motorola MC70 handheld computer.
Datamax-O'Neil 200466-100 Portable Barcode Printer Overview

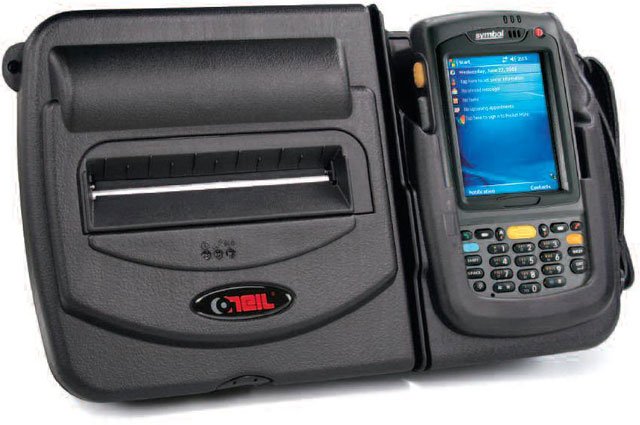

The PrintPAD integrated printing systems offer mobile workers the convenience of a portable thermal printer and mobile computer united in a compact and ergonomic, rugged and reliable unit. It's designed for use with a variety of Motorola, Intermec, and Hand Held Products mobile computers.

Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
2 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Codabar
  • Code 39
  • Code 128
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • MSI
  • Plessey
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • PDF-417
  • Aztec Code
  • QR Code
  • Data Matrix
Features:
Magnetic Card Reader
Print Technology:
Direct Thermal
Memory
Standard Memory:
2 MB
Flash Memory:
4 MB
Media Types & Handling
Media Type:
  • Direct Thermal Paper
  • Synthetic Media
  • UV Coated Media
Maximum Roll Diameter:
2.25"
Maximum Label Width:
4.41"
Label Core Size:
0.40"
Power Description
Input Voltage:
7.2 V DC
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Rechargeable:
Yes
Physical Characteristics
Form Factor:
Portable
Miscellaneous
Package Contents:
  • PrintPAD 200466-100 Receipt Printer
  • 2 x Batteries
  • 1 x Hand Strap
  • 1 x Roll of Media
  • User Guide
  • Dex Cable
Platform Supported:
PC
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 45101512
