Datamax-O'Neil 200412-100 Portable Barcode Printer

Part Number: 200412-100
Model: PrintPad
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Mobile
Printing Technology
Direct Thermal
Interface Options
DEX, Serial (RS-232)
Print Resolution
203 dpi

Product Description:

  PrintPAD Thermal Receipt Printer (MC7004/7090/7094/7095 Card Reader Dex Option)
Explore all Honeywell Print Pad Portable Barcode Printers
Add to Quote
Datamax-O'Neil 200412-100 Portable Barcode Printer
Datamax-O'Neil 200412-100 Portable Barcode Printer
Datamax-O'Neil 200412-100 Portable Barcode Printer Datamax-O'Neil 200412-100 Portable Barcode Printer
Full specifications (PDF)

Honeywell Print Pad Portable Barcode Printer Model Overview

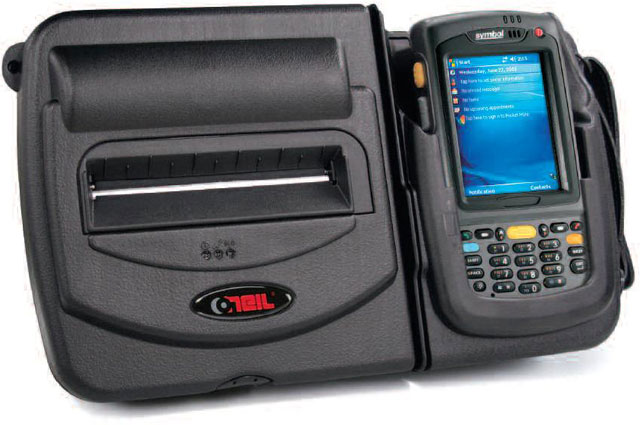

Integrated Printing Systems combine O'Neil's PrintPad with the industry's leading mobile computers to provide the ultimate integration and portability for users in route accounting, direct store delivery (DSD), and other field. This innovative onepiece printer system combines an enhanced 4" wide thermal printer, the 4te, with an embedded communications charging cradle designed for use in a number of different applications with the Motorola MC70 handheld computer.
Datamax-O'Neil 200412-100 Portable Barcode Printer Overview

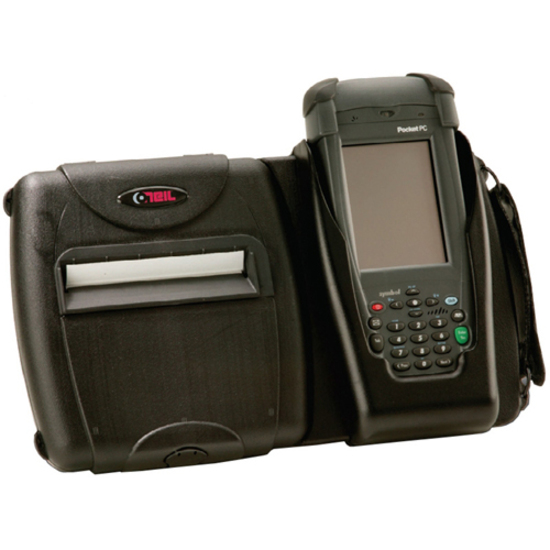

The PrintPAD portable printer offers innovative mobile printing for rugged environments to enable the production of hard copy back-ups of digital information and signature printing, as well as the generation of receipts, tickets, labels, and barcodes for a variety of applications.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
2 in/s
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • MSI PLESSEY
  • UCC/EAN 128
  • UPC-E
  • UPC-A
  • Aztec Code
  • PDF-417
  • QR Code
Features:
Magnetic Card Reader
Print Technology:
Direct Thermal
Memory
Standard Memory:
2 MB
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
Media Types & Handling
Media Type:
  • Thermal Paper
  • Synthetic Media
  • UV Coated Media
  • Label
Maximum Roll Diameter:
2.25"
Maximum Label Width:
4.41"
Battery Information
Number of Batteries Supported:
2
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
2200 mAh
Physical Characteristics
Form Factor:
Portable
Miscellaneous
Additional Information:
  • Supports Motorola MC7004/7090/7094/7095 hand-held computer models
  • Advanced 32-bit architecture RISC processor
  • DEX Port: DEX/UCS
  • Cradle Standard MC70/75 interface connector
Platform Supported:
PC
Item Numbers
UNSPSC: 45101512
