Datamax-O'Neil 200410-100 Portable Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

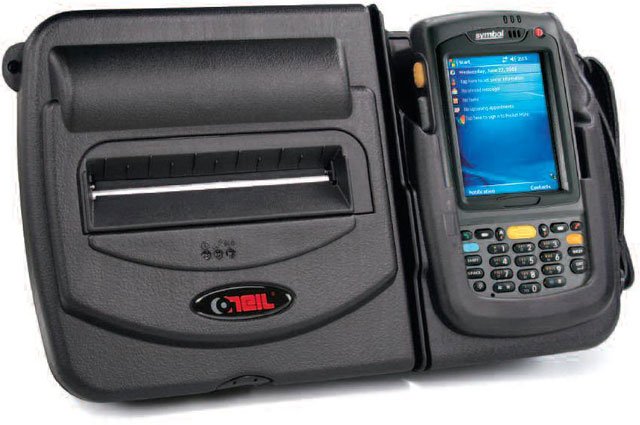

Datamax-O'Neil PrintPad - Thermal Receipt Printer (MC7004/7090/7094/7095)
Offers innovative mobile printing for rugged environments

Integrated Printing Systems combine O'Neil's PrintPad with the industry's leading mobile computers to provide the ultimate integration and portability for users in route accounting, direct store delivery (DSD), and other field. This innovative onepiece printer system combines an enhanced 4" wide thermal printer, the 4te, with an embedded communications charging cradle designed for use in a number of different applications with the Motorola MC70 handheld computer.

Technical Information

  • Maximum Mono Print Speed: 2 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Number of Columns: 80
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 39
    • Code 93
    • Code 128
    • EAN-13
    • EAN-8
    • Interleaved 2 of 5
    • Plessey
    • MSI
    • UCC/EAN 128
    • UPC-A
    • UPC-E
    • Aztec Code
    • PDF-417
    • QR Code

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: 200410-100
  • Product Name: PrintPAD 200410-100 Label Printer
  • Product Line: PrintPAD

Physical Characteristics

  • Form Factor: Portable

Interfaces/Ports

  • Serial Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • PrintPAD 200410-100 Portable Label Printer
    • Roll of Paper
    • Hand Strap
    • 2 x Batteries
    • PrintPAD 200410-100 Portable Label Printer
    • Roll of Paper
    • Hand Strap
    • 2 x Batteries

Media Types & Handling

  • Maximum Label Width: 4.41"
  • Media Type:
    • Label
    • Receipt
    • Synthetic Media
    • UV Coated Media
  • Label Core Size: 0.40"
  • Maximum Roll Diameter: 2.25"

Memory

  • Standard Memory: 2 MB
  • Flash Memory: 4 MB

Battery Information

  • Number of Batteries Supported: 2
  • Battery Chemistry: Lithium Ion (Li-Ion)

Warranty

  • Limited Warranty: 2 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model PrintPad
Interface Options Serial
Label Core 0.4 inches
Print Method Direct Thermal
Max Label Width 4.41
Print Resolution 203 dpi
Print Speed 2
Maximum Print Width 4.10
Max Roll Outer Diameter 2.25
Printer Type Mobile
Printer Mobility Not Mobile, Mobile
