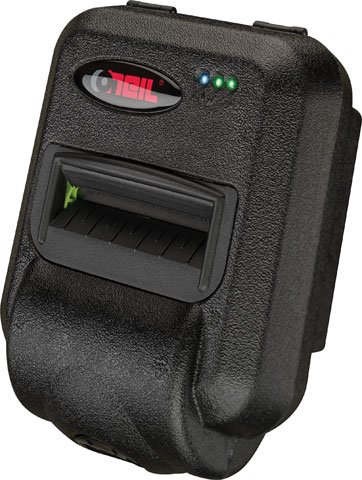

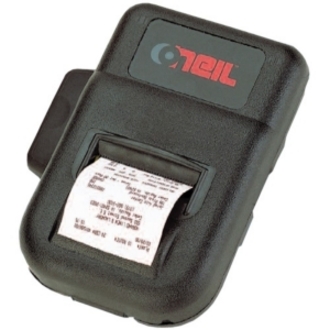

Datamax-O'Neil 200383-100 Portable Barcode Printer
Eight generations of innovations and a relentless pursuit of reliably have resulted in the Datamax-O-Neil microFlash 2te - the smallest 2" printer with a design proven to thrive in the mobile environment. The microFlash 2te prints outstanding quality 2" direct thermal receipts, proof of deliveries, invoices, barcodes and labels. Whether in serial or wireless mode, the microFlash 2te is the printer of choice around the globe for field mobile service, route accounting, direct store delivery (DSD), logistics, home delivery and pre-sales systems. The Datamax-O-Neil microFlash 2te is amazingly small, in fact, it's up to 33% smaller than competitive rugged printers! The microFlash 2te is the only printer that provides the durability required in the demanding field mobile environment. Rugged enough to withstand multiple 6' drops to concrete, the microFlash 2te direct thermal printer is designed and engineered to withstand even the most punishing portable applications. From its peerless internal printing mechanism to its unbreakable high-density polyethylene case, the microFlash line of printers are lauded worldwide for providing the most reliable printing, shift after shift, month after month, and year after year.
Technical Information
- Maximum Mono Print Speed: 2 in/s
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 1.89"
- Recommended Use: Label Print
- Features: Belt Clip
- Barcode Symbology Supported:
- Codabar
- Code 39
- Code 93
- Code 128
- EAN-13
- EAN-8
- Interleaved 2 of 5
- MSI
- Plessey
- UCC/EAN 128
- UPC-A
- UPC-E
- PDF-417
- Aztec Code
General Information
- Product Type: Direct Thermal Printer
- Brand Name: Datamax-O'Neil
- Manufacturer: Datamax-O'Neil
- Product Model: 2te
- Product Name: microFlash 2te Thermal Label Printer
- Product Line: microFlash
Physical Characteristics
- Form Factor: Portable
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Platform Supported: PC
- Package Contents:
- microFlash 2te Thermal Label Printer
- Battery
- Roll of Media
- Swivel Belt Clip
- microFlash 2te Thermal Label Printer
- Battery
- Roll of Media
- Swivel Belt Clip
- Additional Information:
- External LED indicators
- 32-bit architecture RISC processor
- Fonts, graphics and operating system in Flash memory
- Intelligent power management and sleep mode for extended battery life
Media Types & Handling
- Maximum Label Width: 2.25"
- Media Type:
- Direct Thermal Paper
- Synthetic Media
- UV Coated Media
- Label Core Size: 0.40"
- Maximum Roll Diameter: 2"
Battery Information
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Memory
- Standard Memory: 2 MB
- Flash Memory: 4 MB
Warranty
- Limited Warranty: 2 Year
Full specifications (PDF)| Brand | Datamax-O'Neil |
| Model | microFlash 2te |
| Print Speed | 2, 2.5 |
| Max Roll Outer Diameter | 2.25 |
| Printer Type | Mobile |
| Print Resolution | 203 dpi |
| Maximum Print Width | 1.89, 2.00 |
| Interface Options | Serial |
| Label Core | 0.4 inches |
| Print Method | Direct Thermal |
| Max Label Width | 2.25 |
| Printer Mobility | Mobile |
|
