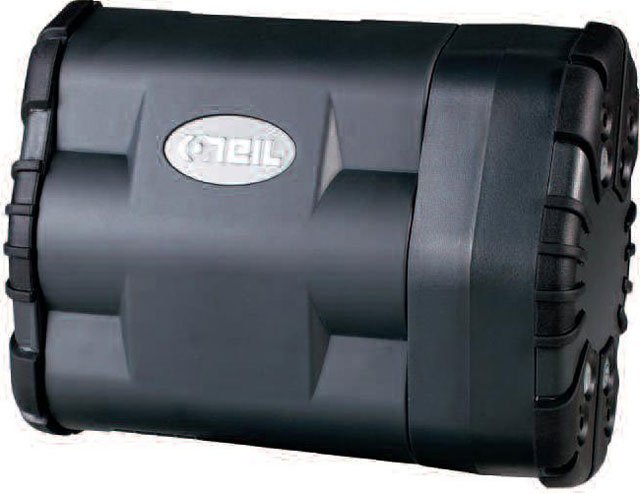

Datamax-O'Neil 200336-100 Portable Barcode Printer


4.0

(1 reviews)

Datamax-O'Neil OC3 - Direct Thermal Portable Printer, 802.11b-g
Serial & Wireless Portable Thermal Printer

OC3 is the world's most streamlined, light weight, and ergonomic portable label and receipt printers. Designed especially for those labeling and transaction applications where ergonomic considerations, ultimate portability, and smart looks are paramount, the OC is ideal for a wide variety of mission-critical applications.

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.84"
  • Recommended Use: Label Print
  • Features: Belt Clip
  • Barcode Symbology Supported:
    • Codabar
    • Code 39
    • Code 93
    • Code 128
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • MSI PLESSEY
    • UCC/EAN 128
    • UPC-A
    • UPC-E
    • Aztec Code
    • PDF-417
    • QR Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: OC3
  • Product Name: OC3 Thermal Label Printer
  • Product Line: OC

Physical Characteristics

  • Height: 2.8"
  • Width: 6.5"
  • Depth: 4.9"
  • Form Factor: Portable

Interfaces/Ports

  • Serial Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • OC3 Label Printer
    • Battery
    • Roll of Media
    • Swivel Belt Clip
    • OC3 Label Printer
    • Battery
    • Roll of Media
    • Swivel Belt Clip
  • Certifications & Standards:
    • FCC B
    • CE
    • UL/cUL
    • RoHS
  • Additional Information:
    • External DC jack, 12-15V, built-in spike and surge protection
    • External charge contacts, 12 -15V, built-in spike and surge protection
    • Prints approx. 2,544 - 2" x 1.125" labels on a single battery charge (22.1 hours)

Media Types & Handling

  • Maximum Label Width: 3"
  • Media Type:
    • Receipt
    • Synthetic Media
    • UV Coated Media
    • Label
  • Media Size:
    • Custom Size - 3.25" - Roll Paper
    • 3.25" x Roll Paper
  • Label Core Size: 1"
  • Maximum Roll Diameter: 2.25"

Battery Information

  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Memory

  • Standard Memory: 2 MB
  • Flash Memory: 4 MB

Network & Communication

  • Wireless LAN: Yes

Warranty

  • Limited Warranty: 2 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model OC3
Max Roll Outer Diameter 2.25
Print Resolution 203 dpi
Max Label Width 3.15
Print Method Direct Thermal
Maximum Print Width 2.84, 3.00
Interface Options Wireless, Serial
Label Core 0.4 inches
Print Speed 1.83
Printer Type Mobile
Printer Mobility Mobile
