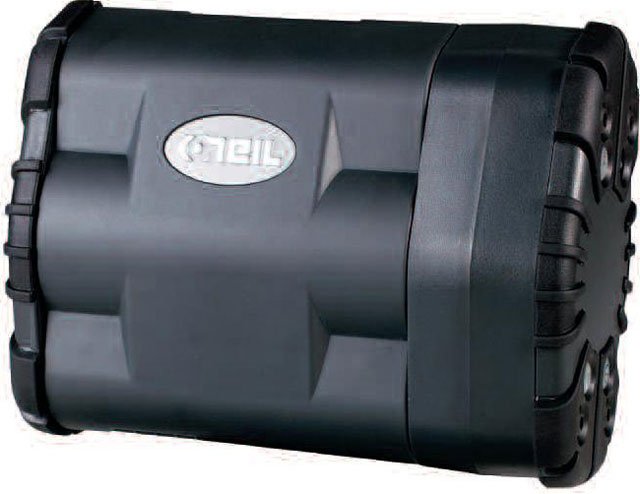

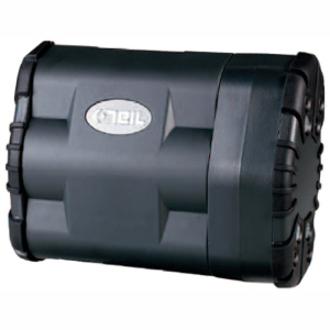

Datamax-O'Neil 200333-100 Portable Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Datamax-O'Neil OC3 - Direct thermal Portable Printer, Bluetooth
$860.90
Ships in 3-5 Days
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
Serial & Wireless Portable Thermal Printer

OC3 is the world's most streamlined, light weight, and ergonomic portable label and receipt printers. Designed especially for those labeling and transaction applications where ergonomic considerations, ultimate portability, and smart looks are paramount, the OC is ideal for a wide variety of mission-critical applications.

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.84"
  • Recommended Use: Receipt Print
  • Features: Belt Clip
  • Barcode Symbology Supported:
    • Codabar
    • Code 39
    • Code 93
    • Code 128
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • MSI PLESSEY
    • UCC/EAN 128
    • UPC-A
    • UPC-E
    • Aztec Code
    • PDF-417
    • QR Code

General Information

  • Product Type: Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: OC3
  • Product Name: OC3 Receipt Printer
  • Product Line: OC

Physical Characteristics

  • Form Factor: Portable

Interfaces/Ports

  • Serial Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • OC3 Receipt Printer
    • Roll of Media
    • Swivel Belt Clip
    • OC3 Receipt Printer
    • Roll of Media
    • Swivel Belt Clip
  • Certifications & Standards:
    • FCC B
    • CE
    • C-Tick
    • UL/cUL
    • GS
  • Additional Information:
    • External DC jack, 12-15V, built-in spike and surge protection
    • External charge contacts, 12 -15V, built-in spike and surge protection
    • Prints approx. 5304-2" x 1.125" labels on a single battery charge (22.1 hours)

Media Types & Handling

  • Media Type:
    • Receipt
    • Synthetic Media
    • UV Coated Media
    • Label
  • Media Size: 2.25" x Roll Paper
  • Maximum Roll Diameter: 2.25"

Memory

  • Standard Memory: 2 MB
  • Flash Memory: 4 MB

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 2 Year

Power Description

  • Input Voltage: 7.2 V DC

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model OC3
Interface Options Serial, Bluetooth
Label Core 0.4 inches
Maximum Print Width 2.84, 3.00
Max Roll Outer Diameter 2.25
Print Method Direct Thermal
Print Speed 1.83
Print Resolution 203 dpi
Max Label Width 3.15
Printer Type Mobile
Printer Mobility Mobile
