Datamax-O'Neil 200323-101 Portable Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

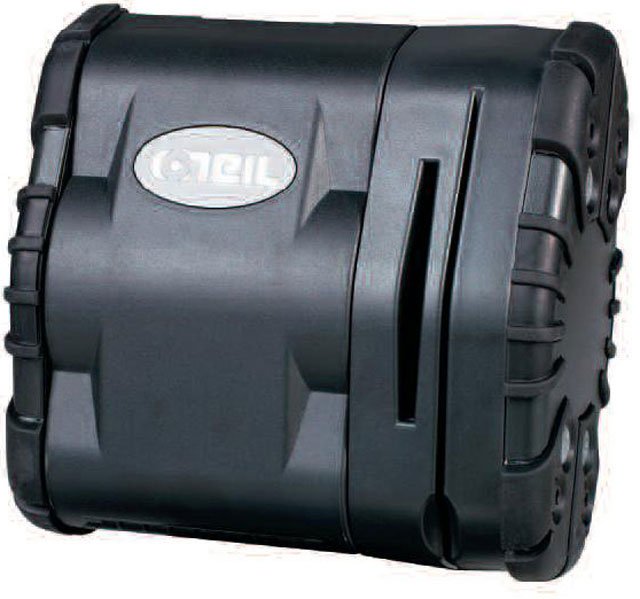

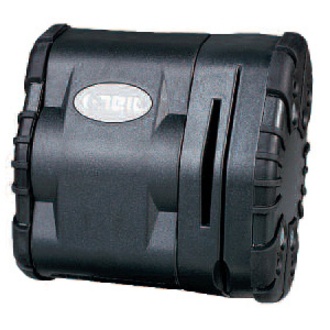

Datamax-O'Neil OC2 - MOBILE PRINTER, 2 INCH, DIRECT THERMAL, SERIAL, Bluetooth, 4MB FLASH, 2MB RAM, 1 YEAR WARRANTY, BATTERY, PAPER, SWIVEL BELT CLIP, USER MANUAL, REQUIRES AC ADAPTER 220515-100
Serial & Wireless Portable Thermal Printer

OC2 is the world's most streamlined, light weight, and ergonomic portable label and receipt printers. Designed especially for those labeling and transaction applications where ergonomic considerations, ultimate portability, and smart looks are paramount, the OC is ideal for a wide variety of mission-critical applications.

Technical Information

  • Maximum Mono Print Speed: 2 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 1.89"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 39
    • Code 93
    • Code 128
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • MSI PLESSEY
    • UCC/EAN 128
    • UPC-A
    • UPC-E
    • Aztec Code
    • PDF-417
    • QR Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: OC2
  • Product Name: OC2 Thermal Label Printer
  • Product Line: OC

Physical Characteristics

  • Height: 2.8"
  • Width: 5.2"
  • Depth: 4.9"
  • Form Factor: Portable

Interfaces/Ports

  • Serial Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • OC2 Thermal Label Printer
    • Swivel belt clip
    • Battery
    • Paper
    • OC2 Thermal Label Printer
    • Swivel belt clip
    • Battery
    • Paper
  • Certifications & Standards:
    • FCC B
    • CE
    • UL/cUL
  • Additional Information:
    • External DC jack, 12-15V, built-in spike and surge protection
    • External charge contacts, 12 -15V, built-in spike and surge protection
    • Prints Approximately 6522" or 1087 - 6" receipts on a single battery charge (18.1 hours)

Media Types & Handling

  • Maximum Label Width: 2.25"
  • Media Type:
    • Receipt
    • Synthetic Media
    • UV Coated Media
    • Label
  • Media Thickness: 6 mil
  • Label Core Size: 0.40"
  • Maximum Roll Diameter: 2.25"

Battery Information

  • Number of Batteries Supported: 1
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Memory

  • Standard Memory: 2 MB
  • Flash Memory: 4 MB

Power Description

  • Input Voltage: 7.2 V DC

Warranty

  • Limited Warranty: 2 Year

Network & Communication

  • Bluetooth: Yes

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model OC2
Print Resolution 203 dpi
Maximum Print Width 1.89
Interface Options Serial, Bluetooth
Label Core 0.4 inches
Print Method Direct Thermal
Max Label Width 2.25
Print Speed 3
Max Roll Outer Diameter 2.25
Printer Type Mobile
Printer Mobility Mobile
