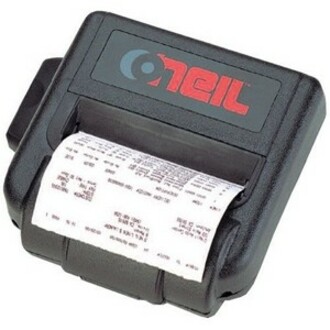

Datamax-O'Neil 200114-100 Portable Barcode Printer

Part Number: 200114-100
Model: microFlash 4t
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Mobile
Interface Options
Infrared (IrDA), Serial (RS-232)
Print Resolution
203 dpi
Max Print Width
4.5 inch

Product Description:

  4" DT, 203 dpi, 2.5 inches per Second, Linerless, IrDA, Serial, standard belt clip. Not Used with swivel clip.
Explore all Datamax-O'Neil microFlash 4t Portable Barcode Printers
Add to Quote
Datamax-O'Neil 200114-100 Portable Barcode Printer
Datamax-O'Neil 200114-100 Portable Barcode Printer
Datamax-O'Neil 200114-100 Portable Barcode Printer Datamax-O'Neil 200114-100 Portable Barcode Printer
Full specifications (PDF)

Datamax-O'Neil microFlash 4t Portable Barcode Printer Model Overview

The microFlash 4t, the Windows -compatible portable printer generates a full four-inch-wide (104mm) printout utilizing multiple fonts and sizes, barcodes, custom logos, graphics, and signatures. It operates easily using wireless input and flash memory for simple updates in the field. It activates when data is sent and automatically goes back to sleep when not in use. The microFlash4t also comes standard with IrDA-compliant wireless infrared communications technology. Data can be sent from a hand-held computer from up to three feet (one meter) away, without any cables to get tangled or damaged.
Datamax-O'Neil 200114-100 Portable Barcode Printer Overview

The 4t is the only portable 4" printer that provides the durability required in the demanding field mobile environment. The 4t thermal printer is designed and engineered to withstand even the most punishing portable applications. Its reliable internal printing mechanism has been field proven in the harshest of environments. The unbreakable high-density polyethylene case protects your investment; taking all the bumps and knocks inherent in the mobile workplace.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
2 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • MSI PLESSEY
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • PDF-417
  • Aztec Code
  • QR Code
Features:
Belt Clip
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
1 MB
Flash Memory:
4 MB
Interfaces/Ports
Infrared:
Yes
Serial Port:
Yes
Network & Communication
Wireless LAN:
Yes
Media Types & Handling
Media Type:
  • Direct Thermal Paper
  • Synthetic Media
  • UV Coated Media
  • Label
  • Linerless
Maximum Roll Diameter:
2.25"
Maximum Label Width:
4.41"
Battery Information
Number of Batteries Supported:
2
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
2200 mAh
Physical Characteristics
Form Factor:
Portable
Miscellaneous
Package Contents:
  • microFlash 4t Portable Label Printer
  • 2 x Lithium-Ion Batteries
Additional Information:
  • Internal DC jack, 12-15V, built-in spike and surge protection
  • Prints approx. 13,440" or 2,240 - 6" receipts on a single battery charge
Platform Supported:
PC
Certifications & Standards:
  • FCC B
  • CE
  • C-Tick
  • RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43212108
