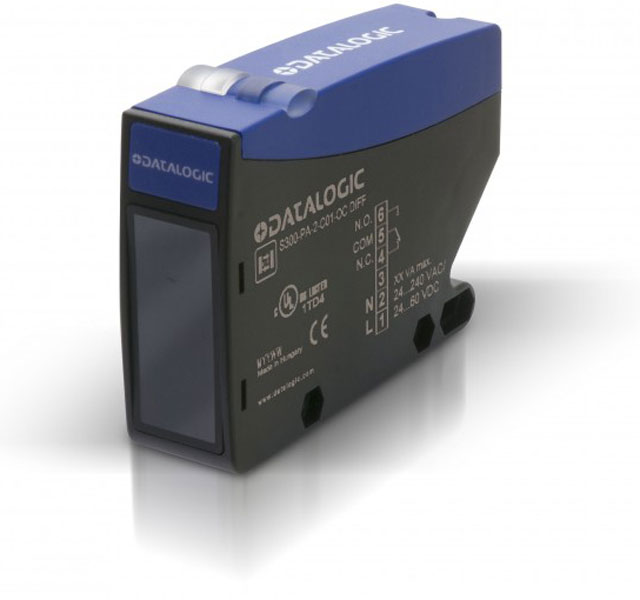

Datalogic S300 Sensor

Datalogic S300  -  The Datalogic S300 PA series of advanced MAXI photoelectric sensors represents the most suitable solution for standard applications, thanks to its excellent cost/performance ratio. The new S300 PA series offers a wide range of models and functions in order to guarantee easy use and installation. The S300 PA presents 5 different models with a through beam optical function up to 50m, retroreflex up to 15m, polarized retroreflex up to 10m, diffused proximity at 2m and background suppression at 2m. All the S300 PA models are available both Vdc from 12 to 30V and Vac/Vdc free-voltage from 24 to 240V versions. This sensor has an IP67 rating and is easy to use and install.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$145.71
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

Datalogic S300 Sensor
Datalogic S300 Sensor
Datalogic S300 Sensor Datalogic S300 Sensor

Datalogic S300 Sensor Options

Page
Full specifications (PDF)

Datalogic S300 Sensor Model Overview

The MAXI SENSORS S300 PA is an advanced photoelectric sensor designed to deliver precision and reliability in various industrial applications. Housed in industrial plastic with robust IP67 protection, this sensor is suitable for both indoor and outdoor use, ensuring optimal performance in challenging environments. With a multi-voltage capability ranging from 12 to 240 Vac/Vdc, it offers versatile installation options and a comprehensive range of detection modes, including through beam, retroreflective, and diffuse proximity. Perfect for packaging, manufacturing, and gate control, the S300 PA simplifies setup with easy-to-use trimmers for distance and timing adjustments.


Key features:
  • IP67 mechanical protection ensures durability in harsh environments.
  • Multivoltage compatibility (12 to 240 Vac/Vdc) for flexible usage.
  • Multiple sensing modes: through beam, polarized retroreflective, and diffuse proximity.
  • Timing functions range adjustable from 0.6 to 16 s, including ON delay, OFF delay, and ONE SHOT.
  • Easy configuration with sensitivity trimmers and DIP switches for output settings.

Specifications:
  • Power Supply: 12...30 Vdc or 24...240 Vac/24...60 Vdc
  • Light Emission: Red LED 660 nm or IR LED 940 nm
  • Connection: Terminal block for both Vdc and Vac/Vdc
  • Output: NPN/PNP or relay, 100 mA (DC models) and 3 A max. (AC models)
  • Response Time: 1 ms (for some models), 25 ms (relay)
  • Operating Temperature: -25 ... 55 °C
  • Dimensions: 25 x 100 x 70 mm
  • Weight: 120 g (DC model), 130 g (AC model)
