The Touch TD1100 series of linear imaging contact readers represents Datalogic's solution for customers who require a cost-effective solution for close-contact bar code reading without sacrificing quality or performance. Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading capability on virtually all linear bar codes, including damaged or poorly printed codes. Small, lightweight and low on energy consumption, the Datalogic Touch TD1100 readers continue to provide robustness with a 1.5 m / 5.0 ft drop resistance, which is typical of higher range products.

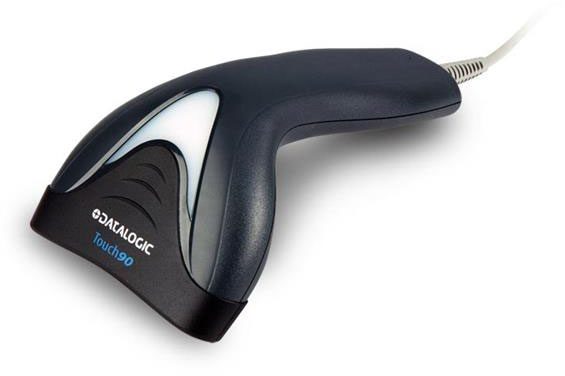

Datalogic TD1170-BK-90 Barcode Scanner Overview
The Touch™ TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.
Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
What barcode types does the Datalogic TD1170-BK-90 scanner read?
The TD1170-BK-90 reads virtually all linear 1D barcodes, including 2/5 family, Code 39, Code 128, EAN/UPC, CODABAR, Code 93, and many others. It's specifically designed to read damaged or poorly printed codes reliably, making it ideal for warehouse environments where label quality varies. We offer this scanner as a cost-effective solution for applications requiring consistent contact reading performance.
Is the Datalogic TD1170-BK-90 corded or wireless?
The TD1170-BK-90 is a corded handheld scanner with a 2-meter (6.6 ft) linear cable. It connects via USB or RS-232/Keyboard Wedge interfaces, drawing power directly from your terminal or PC. This wired design eliminates battery concerns and ensures consistent connectivity for continuous warehouse operations.
What is the reading distance and field for the TD1170-BK-90?
The TD1170-BK-90 (Touch 90 model) has a reading field of 80 mm (3.5 inches) and a maximum reading distance of 0 to 50 mm on standard EAN 13 codes. This 9.0 cm reading window is ideal for scanning wider barcodes on larger items or documents. The contact imaging technology guarantees reliable reads even on damaged labels.
How durable is the Datalogic TD1170-BK-90 for warehouse use?
The TD1170-BK-90 features 1.5 meter (5.0 ft) drop resistance, making it robust enough for typical warehouse handling. It weighs approximately 195 grams and is constructed with ABS material, offering durability comparable to higher-end products while maintaining a lightweight, low-energy design. This durability level makes it suitable for general-purpose, low-throughput applications across multiple markets.
What are the power requirements for the TD1170-BK-90?
The TD1170-BK-90 requires 5 VDC ± 5% power supply with a maximum consumption of 150 mA. Power is drawn directly from your terminal or PC via USB, Keyboard Wedge, or RS-232 mode, eliminating the need for external batteries or power supplies in most configurations. This low power consumption supports extended operational periods without additional infrastructure.
How does the TD1170-BK-90 compare to the TD1120-BK-65 model?
The TD1170-BK-90 is the larger variant in Datalogic's Touch TD1100 series, featuring a 9.0 cm (3.5 inch) reading window compared to the TD1120's 6.5 cm window, making it better suited for wider barcodes. Both models share the same core technology—contact linear imaging, 1.5m drop resistance, and cost-effective performance—but the 90 model's larger field accommodates standard and wide barcode applications. Contact us today to determine which model best fits your warehouse requirements.
The Datalogic TD1170-BK-90 Barcode Scanner is also known as
DTL-TD1170BK90
or TD1170BK90.
Full specifications (PDF)
