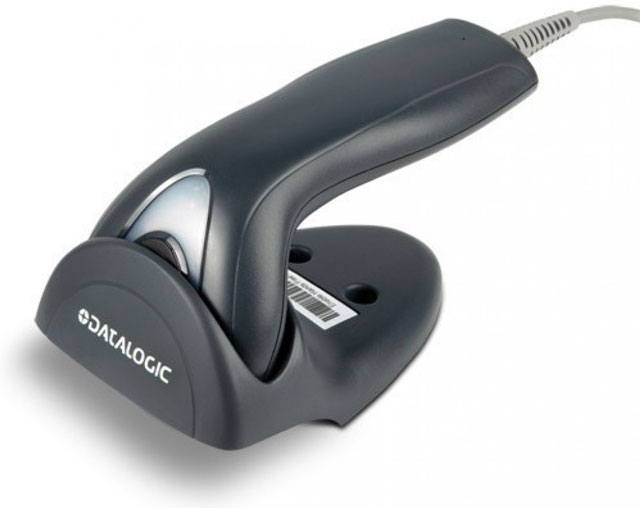

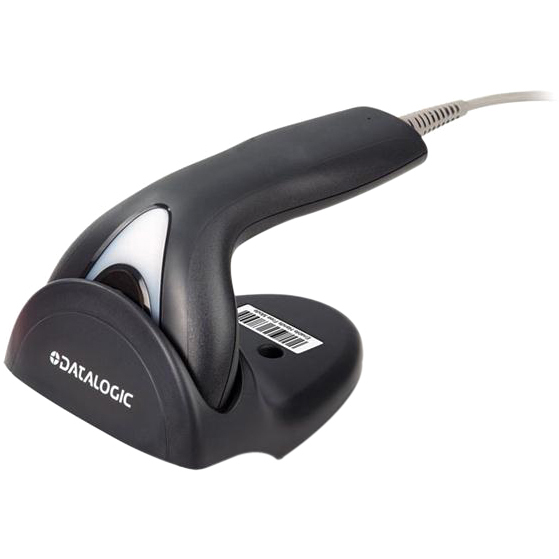

Datalogic TD1120-BK-90K1 Barcode Scanner

Datalogic Touch TD1120 90 Lite - Corded Barcode Scanner, Datalogic Touch TD1120 90 Lite, 1D Linear Imager, General Purpose, Handheld, Black. Incl. Scanner, Holder, and 90A052065 Cable

Offers custom fitted for medium to high volume point-of-sale applications that require elite performance in a single plane horizontal form factor
Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently

Need a different version? See all Datalogic TD1100 Barcode Scanners

$100.03

Recommended TrueSupport Coverage (/mo.)

Quantity	Unit Price	Discount
2	$99.03	1% OFF
5	$97.03	3% OFF

Add to Quote

Datalogic TD1120-BK-90K1 Barcode Scanner

Overview

Full specifications (PDF)

Datalogic TD1100 Barcode Scanner Model Overview

The Touch TD1100 series of linear imaging contact readers represents Datalogic's solution for customers who require a cost-effective solution for close-contact bar code reading without sacrificing quality or performance. Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading capability on virtually all linear bar codes, including damaged or poorly printed codes. Small, lightweight and low on energy consumption, the Datalogic Touch TD1100 readers continue to provide robustness with a 1.5 m / 5.0 ft drop resistance, which is typical of higher range products.

Datalogic TD1120-BK-90K1 Barcode Scanner Overview

The Touch™ TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.

Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

1D / Linear Codes:

Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

Stacked Codes:

GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional

Image Sensor Type:

Imager
Linear

Maximum Scan Resolution:

4 mil

Depth of Field:

0" - 3.2"@7.5mil - Code 39
0" - 4.7"@10mil - Code 39
0" - 6"@13mil - EAN13

Scan Pattern:

Omni-directional

Scanner Range:

Short Range

Scanning Distance:

5.91"

Cable Type Included:

USB

Reading Angle (Skew):

70°

Reading Angle (Pitch):

65°

Reading Angle (Roll):

45°

Maximum Ambient Light:

20000 lux

Drop Specification:

Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface

Minimum Print Contrast:

25%

Minimum Element Resolution (Code 39):

7.5 mil

Maximum Element Resolution (Code 39):

10 mil

Interfaces/Ports

Host Interface:

USB

Physical Characteristics

Form Factor:

Handheld

Product Color:

Black

Height:

6.7"

Width:

2.7"

Depth:

4.1"

Weight (Approximate):

5.40 oz

Miscellaneous

Additional Information:

USB Cable separate

Ingress Protection (IP) Rating:

IP30

Application/Usage:

Library
Government
Industrial
Retail

Country of Origin:

Vietnam

Item Numbers

GTIN: 0650361462520, 0783555097564, 4016138960389, 5711045503375

UPC: 650361462520, 783555097564

EAN: 0650361462520, 0783555097564, 4016138960389, 5711045503375

UNSPSC: 43211701
