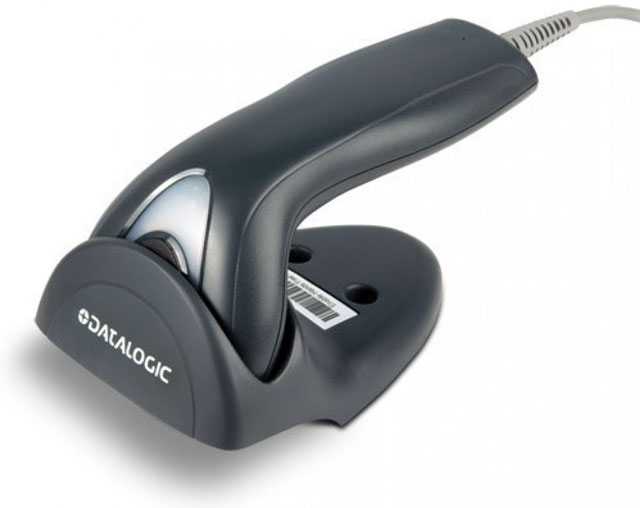

Datalogic TD1120-BK-65 Barcode Scanner

Datalogic Touch TD1120 65 Lite - Corded Barcode Scanner, Datalogic Touch TD1120 65 Lite, 1D Linear Imager, General Purpose, Handheld, USB Connection, SCANNER ONLY, Black
$64.15
Temporarily out of stock; available to order

Full specifications (PDF)

Outstanding flexibility with the innovative read-thru holder to when reading documents
The Touch TD1100 series of linear imaging contact readers represents Datalogic's solution for customers who require a cost-effective solution for close-contact barcode reading without sacrificing quality or performance. Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading capability on virtually all linear barcodes, including damaged or poorly printed codes. Small, lightweight and low on energy consumption, the Datalogic Touch TD1100 readers continue to provide robustness with a 1.5 m / 5.0 ft. drop resistance, which is typical of higher range products.
Datalogic TD1120-BK-65 Overview

The Touch™ TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.

Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.

Protect Your Product
Datalogic Service Contract - 5 year (ZSN5TD11X51)
Ease of Care Agreement, Datalogic TD1100, 5 Days, 5 Years, Service, Maintenance, Parts & Labor, Physical Service
Temporarily out of stock; available to order
$7.00
+ Add to Quote
Datalogic Service Contract - 5 year (ZSC2TD11X51)
Ease of Care Agreement, Datalogic TD1100, 2 Days, Comprehensive, 5 Years, Service, Carry-in, Maintenance, Parts & Labor, Physical Service
Temporarily out of stock; available to order
$13.00
+ Add to Quote
Datalogic Service Contract - 5 year (ZSC1TD11X51)
Ease of Care Agreement, Datalogic TD1100, Overnight Replacement, Comprehensive, 5 Years
Temporarily out of stock; available to order
$16.00
+ Add to Quote
BCI TrueSupport Basic (TRUESUPPORT-BAS-SCAN-1YR)
Plan for Scanners - 1 Year - Includes: Hardware Help Desk Support, RMA Triage, OEM Service contract mgmt.
Ships within 3 to 5 business days
$15.00
+ Add to Quote

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Image Sensor Type:
  • Imager
  • Linear
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 0" - 3.2"@7.5mil - Code 39
  • 0" - 4.7"@10mil - Code 39
  • 0" - 6"@13mil - EAN13
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Color:
Black
Height:
6.3"
Width:
2.3"
Depth:
3.3"
Weight (Approximate):
4.60 oz
Miscellaneous
Additional Information:

USB Cable separate

Item Numbers
GTIN: 0800953605129, 5711045606168
UPC: 800953605129
EAN: 0800953605129, 5711045606168
UNSPSC: 43211701
