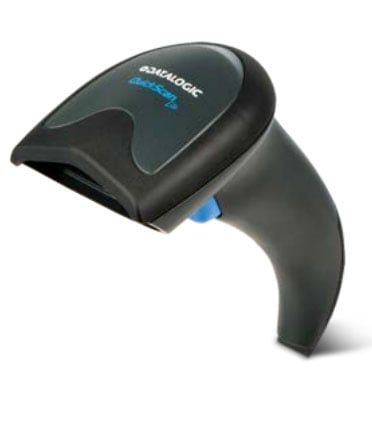

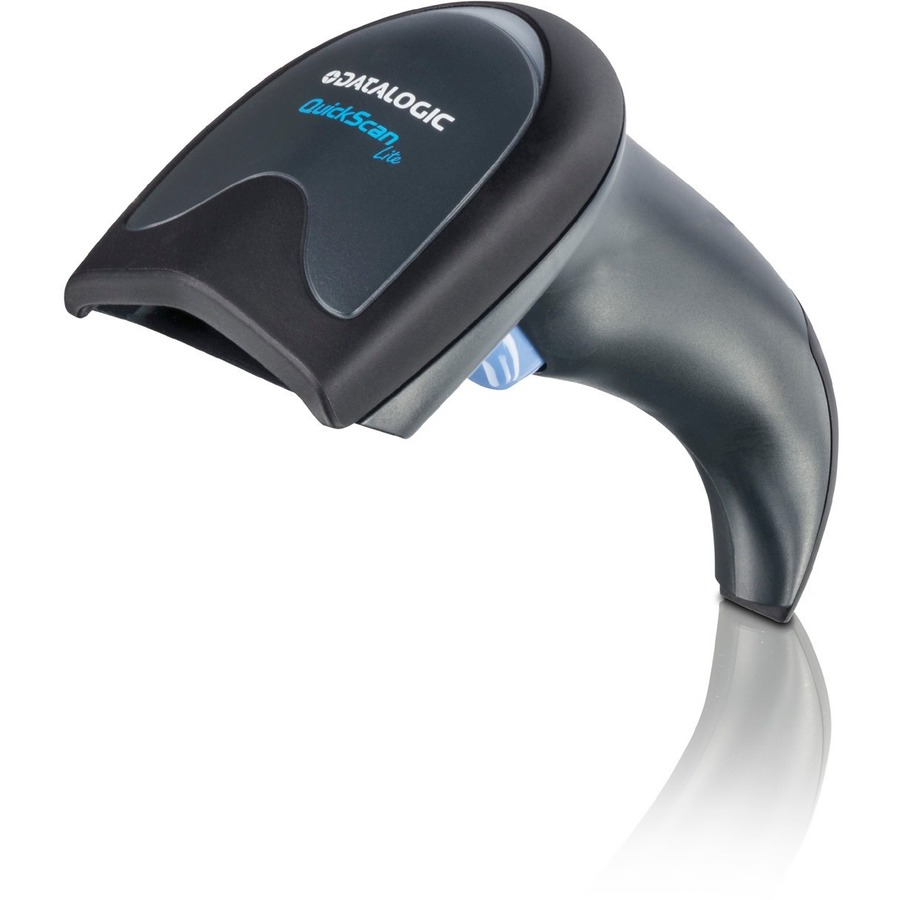

Datalogic QW2420-BKK11S Barcode Scanner

Datalogic QW2520-BKK11S Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic QW2520-BKK11S Barcode Scanner.
Datalogic QuickScan Lite QW2420 - Corded Barcode Scanner, Datalogic QuickScan Lite QW2420, 2D Area Imager, General Purpose, Handheld, USB Interface with Coiled USB Cable (90A052187) and Stand (STD-QW20-BK), Black, IP42
  • Wide scan angle and Field of View (FOV)
  • Blue aiming dot on white illumination
  • Datalogic's patented 'Green Spot' technology for good-read feedback
  • Two interface options: USB or Keyboard Wedge / RS-232
  • Excellent performance in reading bar codes displayed on mobile devices
  • Built with over-molded rubber to protect the imager when dropped
  • Compact and multi-position stand
  • Water and Particulate Sealing Rating: IP42
  • Drop resistance to 1.5 m / 5.0 ft
  • Uses the same cables and power supplies as the current QuickScan products
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Datalogic QuickScan QW2400 Barcode Scanner Model Overview
Datalogic's QuickScan QW2400 area imager is specifically designed for reading long, truncated 1D bar codes and larger 2D codes from close distances. This scanner features an extra-wide Field of View (FOV), which allows the QW2400 to capture these challenging 1D and 2D codes at a nominal distance using different scanning angles. The QW2400 area imager is a wonderful choice to meet the scanning needs in Retail, Light Manufacturing, Document/Bill Processing and Banking/Finance where longer linear bar codes are prevalent and often used.
Datalogic QW2420-BKK11S Barcode Scanner Overview
AREA IMAGING TECHNOLOGY
The QuickScan Lite QW2400 2D area imager is an entry level scanner specifically designed for reading long and truncated 1D codes and larger 2D codes from close distance. The QW2400 imager has an extra-wide Field of View (FOV) which captures these challenging 1D and 2D codes at a nominal distance using different scan angles, meeting the scanning needs in Retail, Light Manufacturing, Document/Bill Processing and Banking/Finance. The QuickScan Lite 2D imager is the most affordable area imager with the best performance in its class.

DESIGNED WITH THE USER IN MIND
The QW2400 imager is small, lightweight and its ergonomic design is comfortable to use in daily operations. It offers snappy reading performance on most commonly used 1D and 2D codes, whether printed or displayed on a mobile device. The white illumination combined with the blue aiming dot provides users with a visible and clear aiming system without irritating the user's eyes. Datalogic's patented 'Green Spot' technology provides goodread feedback in noisy environments and the internal beeper can be silenced for quiet environments.

SIMPLICITY IS THE BEST
The QW2400 area imager is available in two interface options: USB or Keyboard Wedge/RS-232. Customers can purchase the scanner only or separate certified kits which include a cable and stand. All accessories can be shared with the QW2100 linear imager, making it easier for customers to upgrade from 1D to 2D readers.
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / LINEAR CODES:

  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D CODES:

  • Aztec Code
  • Aztec Mesas
  • Data Matri
  • MaxiCode
  • QR Code
  • Micro QR Code
  • China Han Xin Code


POSTAL CODES:

  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • Japanese PostIMB
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)


STACKED CODES:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type:
Imager
Cable Type Included:
USB
Stand Included:
Yes
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Weight (Approximate):
4.23 oz
Miscellaneous
Package Contents:
  • QuickScan I Lite QW2420 Handheld Barcode Scanner
  • Coiled USB Cable
  • Stand
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 5711783911111
EAN: 5711783911111
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic QW2420-BKK11S Barcode Scanner is also known as DTL-QW2420BKK11S or QW2420BKK11S.
