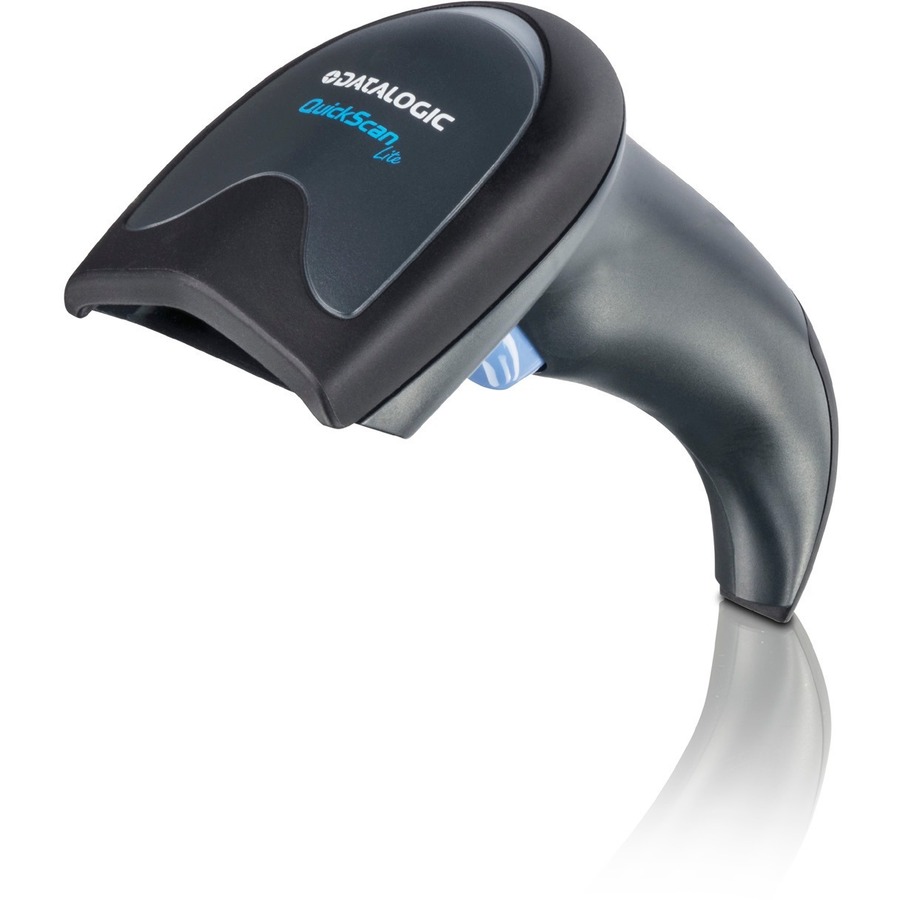

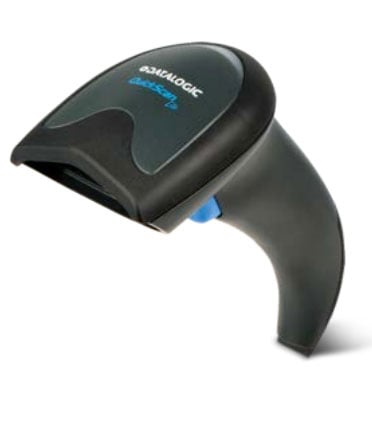

DataLogic QuickScan QW2400 Barcode Scanner Model Overview
The QuickScan Lite QW2400 2D area imager is an entry-level scanner optimized for reading both long and truncated 1D codes, as well as larger 2D codes from short distances. Its extra-wide Field of View (FOV) provides exceptional performance across various industries, including retail, light manufacturing, and banking. Lightweight and ergonomically designed, it ensures comfortable daily use, featuring snappy reading capabilities for printed or mobile device-displayed codes. The innovative blue aiming dot and Datalogic's patented 'Green Spot' technology deliver reliable feedback, making this scanner an affordable yet high-performing choice for your scanning needs. Key features:
Wide scan angle and Field of View (FOV)
Blue aiming dot on white illumination
Good-read feedback with Datalogic's 'Green Spot' technology
Two interface options: USB or Keyboard Wedge/RS-232
Compact, lightweight, and drop-resistant design
Water and particulate sealing rating: IP42
Remote Host Download for operational efficiency
Specifications:
Decoding Capability:
1D/Linear Codes
2D Codes (e.g., QR, Data Matrix)
Postal and Stacked Codes
Electrical:
Input Voltage: 5 VDC +/- 10%
Current: Operating - 170 mA | Standby - 90 mA
Environmental:
Humidity: 0-95% non-condensing
Drop Resistance: 1.5 m / 5.0 ft
Sealing: IP42 rating
Physical Characteristics:
Dimensions: 7.1 x 17.1 x 6.6 cm
Weight: 120 g
Warranty: 3-Year Factory Warranty
Datalogic QW2420-BKK1 Barcode Scanner Overview
AREA IMAGING TECHNOLOGY The QuickScan Lite QW2400 2D area imager is an entry level scanner specifically designed for reading long and truncated 1D codes and larger 2D codes from close distance. The QW2400 imager has an extra-wide Field of View (FOV) which captures these challenging 1D and 2D codes at a nominal distance using different scan angles, meeting the scanning needs in Retail, Light Manufacturing, Document/Bill Processing and Banking/Finance. The QuickScan Lite 2D imager is the most affordable area imager with the best performance in its class.
DESIGNED WITH THE USER IN MIND The QW2400 imager is small, lightweight and its ergonomic design is comfortable to use in daily operations. It offers snappy reading performance on most commonly used 1D and 2D codes, whether printed or displayed on a mobile device. The white illumination combined with the blue aiming dot provides users with a visible and clear aiming system without irritating the user's eyes. Datalogic's patented 'Green Spot' technology provides goodread feedback in noisy environments and the internal beeper can be silenced for quiet environments.
SIMPLICITY IS THE BEST The QW2400 area imager is available in two interface options: USB or Keyboard Wedge/RS-232. Customers can purchase the scanner only or separate certified kits which include a cable and stand. All accessories can be shared with the QW2100 linear imager, making it easier for customers to upgrade from 1D to 2D readers.
The Datalogic QW2420-BKK1 Barcode Scanner is also known as
QW2420BKK1
