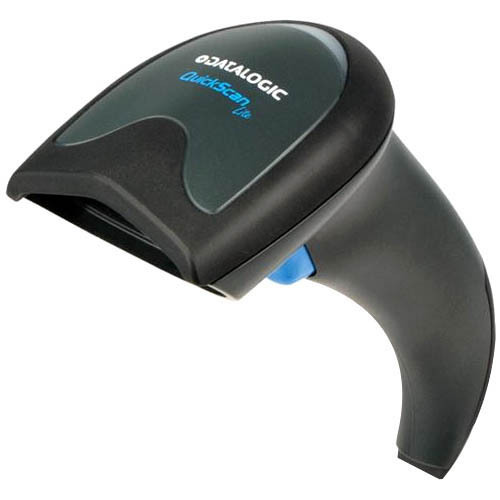

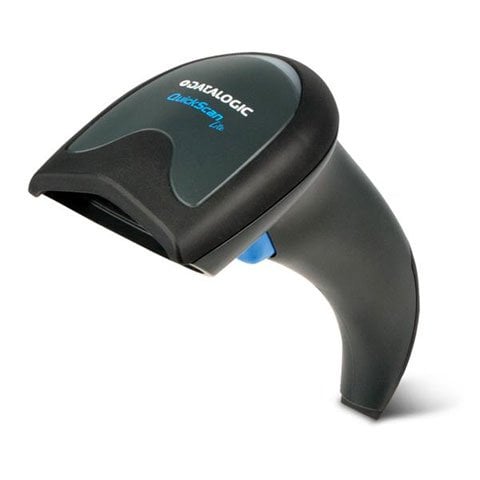

Datalogic QuickScan QW2100 Barcode Scanner Model Overview
Discover the QuickScan™ Lite QW2100, a versatile linear imager designed to efficiently read both long and truncated barcodes. Ideal for retail, light manufacturing, document processing, and banking environments, its compact and ergonomic design ensures comfort during prolonged usage. Equipped with a wide scanning angle and a high-performance scanning line, the QW2100 effortlessly scans various 1D barcodes, including utility bills and electronic parts. With options for USB or Keyboard Wedge interface and a variety of packaging options, it caters to your operational needs.
Key Features:
Wide scan angle for efficient barcode capturing
Thinner and brighter scan line for improved accuracy
Datalogic's patented 'Green Spot' technology for good-read feedback
Two interface options: USB or Keyboard Wedge / RS-232
Drop resistant up to 1.5 m / 5.0 ft

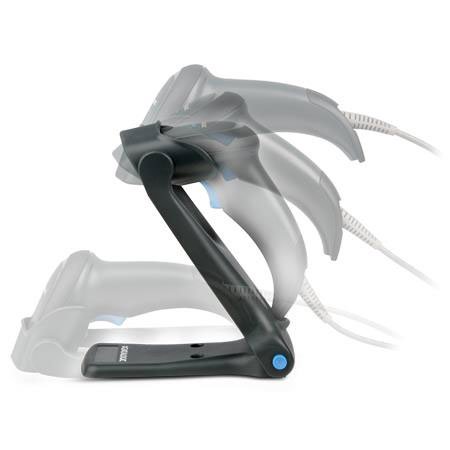

Compact, collapsible, and adjustable stand
Specifications:
Decoding Capability: 1D/Linear Codes, Postal Codes, Stacked Codes
Electrical:
Operating Current: < 180 mA @ 5 VDC
Input Voltage: 5 VDC +/- 0.5 V
Environmental:
Drop Resistance: Withstands drops from 1.5 m / 5.0 ft
Humidity: 5-95% Non-Condensing
Sealing Rating: IP42
Physical Characteristics:
Dimensions: 17.0 x 6.5 x 7.0 cm / 6.7 x 2.5 x 2.7 in
Weight: 119.0 g / 4.2 oz
Reading Performance:
Maximum Read Rate: 400 reads/sec
Maximum Resolution: 0.102 mm / 4 mils (1D Codes)
Warranty: 3-Year Factory Warranty
Datalogic QW2170-BKK3 Barcode Scanner Overview
The QuickScan™ reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan Lite QW2100 linear imager is an entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world. It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments.
Ease of Care Agreement, Datalogic QuickScan I Lite QW2100, QuickScan Lite, 5 Days, 5 Years, Service, Carry-in, Maintenance, Parts & Labor, Physical Service
What barcode types can the Datalogic QW2170-BKK3 read?
The QW2170-BKK3 is a 1D linear imager that autodiscriminates all standard 1D codes including GS1 DataBar linear codes, postal codes (Australian Post, British Post, Canadian Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, and Royal Mail Code), and stacked codes (EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, and GS1 DataBar Stacked Omnidirectional). This makes it ideal for general-purpose scanning in warehouses, manufacturing, and logistics environments.
What interfaces does the QW2170-BKK3 support and what cable comes with it?
The QW2170-BKK3 features RS-232 and Keyboard Wedge interfaces and comes with a KBW (Keyboard Wedge) cable (90G001010) for easy integration into existing systems. This corded design eliminates battery management concerns and provides reliable, continuous connectivity for high-volume scanning operations.
How durable is the Datalogic QW2170-BKK3 in warehouse environments?
The QW2170-BKK3 is built for demanding warehouse conditions with IP42 particulate and water sealing, withstands repeated drops from 1.5 meters (5 feet) onto concrete surfaces, and features 16 kV ESD protection against static discharge. It operates reliably in temperatures from 0 to 50°C (32 to 122°F) and humidity levels up to 95% non-condensing, making it suitable for various indoor logistics environments.
What is the scanning performance and reading angle of the QW2170-BKK3?
The QW2170-BKK3 delivers 400 reads per second with a wide reading angle of ±65° pitch, ±45° roll (tilt), and ±70° skew (yaw), allowing users to scan at wide angles without increasing scanning distance. The extended scanning line and thin, bright illumination make it perfect for capturing longer and wider barcodes typically found on utility bills and electronic parts manufacturing.
Is the QW2170-BKK3 suitable for scanning utility bills and long barcodes?
Yes, the QW2170-BKK3 is specifically designed for this application with an extended scanning line and wide scanning angle that accommodates longer and wider barcodes. The thin and bright scanning line allows operators to capture these codes efficiently at various angles, making it an excellent choice for utility billing departments and electronic parts manufacturers who need to process documents with extended barcode formats.
How does the QW2170-BKK3 compare to other Datalogic QuickScan Lite models?
The QW2170-BKK3 is part of the Datalogic QuickScan Lite QW2100 series, featuring the same compact, lightweight, and ergonomic design as other models in the line. The key difference is the RS-232/Keyboard Wedge interface configuration with included KBW cable, making it ideal for legacy system integration, while the QW2120-BK variant offers USB connectivity for modern environments. Both deliver 400 reads/second performance and identical durability specifications.
The Datalogic QW2170-BKK3 Barcode Scanner is also known as
QW2170BKK3
