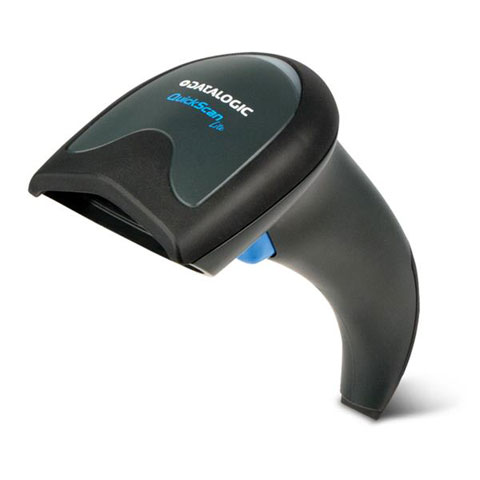

Datalogic QuickScan QW2100 Barcode Scanner Model Overview
Discover the QuickScan™ Lite QW2100, a versatile linear imager designed to efficiently read both long and truncated barcodes. Ideal for retail, light manufacturing, document processing, and banking environments, its compact and ergonomic design ensures comfort during prolonged usage. Equipped with a wide scanning angle and a high-performance scanning line, the QW2100 effortlessly scans various 1D barcodes, including utility bills and electronic parts. With options for USB or Keyboard Wedge interface and a variety of packaging options, it caters to your operational needs.
Key Features:
Wide scan angle for efficient barcode capturing
Thinner and brighter scan line for improved accuracy
Datalogic's patented 'Green Spot' technology for good-read feedback
Two interface options: USB or Keyboard Wedge / RS-232
Drop resistant up to 1.5 m / 5.0 ft

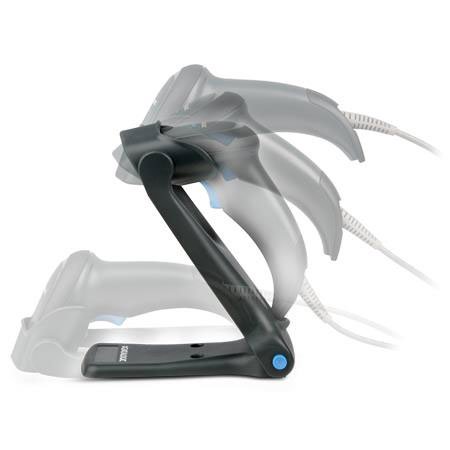

Compact, collapsible, and adjustable stand
Specifications:
Decoding Capability: 1D/Linear Codes, Postal Codes, Stacked Codes
Electrical:
Operating Current: < 180 mA @ 5 VDC
Input Voltage: 5 VDC +/- 0.5 V
Environmental:
Drop Resistance: Withstands drops from 1.5 m / 5.0 ft
Humidity: 5-95% Non-Condensing
Sealing Rating: IP42
Physical Characteristics:
Dimensions: 17.0 x 6.5 x 7.0 cm / 6.7 x 2.5 x 2.7 in
Weight: 119.0 g / 4.2 oz
Reading Performance:
Maximum Read Rate: 400 reads/sec
Maximum Resolution: 0.102 mm / 4 mils (1D Codes)
Warranty: 3-Year Factory Warranty

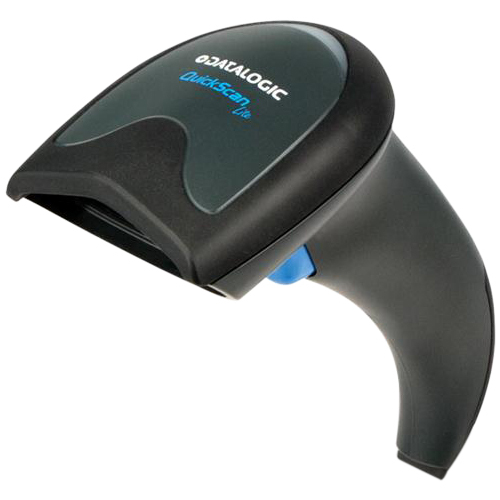

Datalogic QW2170-BK Barcode Scanner Overview
The QuickScan™ reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan Lite QW2100 linear imager is an entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world. It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments.
Ease of Care Agreement, Datalogic QuickScan I Lite QW2100, QuickScan Lite, 5 Days, 5 Years, Service, Carry-in, Maintenance, Parts & Labor, Physical Service
What barcode types does the Datalogic QW2170-BK scanner read?
The QW2170-BK is a 1D linear imager that autodiscriminates all standard 1D codes including GS1 DataBar linear codes, postal codes (Australian Post, British Post, Canadian Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, and Royal Mail Code), and stacked codes (EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, and GS1 DataBar Stacked Omnidirectional). This makes it ideal for general-purpose scanning in warehouses, manufacturing, and logistics environments.
What are the connectivity options for the QW2170-BK barcode scanner?
The QW2170-BK offers dual connectivity with RS-232 serial and keyboard wedge interfaces, allowing flexible integration into existing systems without requiring specialized adapters. This corded configuration ensures reliable, continuous power and data transmission for high-volume scanning operations.
How fast does the QW2170-BK scan barcodes?
The QW2170-BK delivers a maximum read rate of 400 scans per second, providing snappy reading performance for fast-paced warehouse and manufacturing operations. This high throughput combined with its wide scanning angle makes it efficient for capturing longer and wider barcodes like those found on utility bills and electronic parts.
Is the Datalogic QW2170-BK durable for warehouse environments?
Yes, the QW2170-BK is built for demanding warehouse conditions with IP42 particulate and water sealing, withstands repeated drops from 1.5 meters onto concrete, and features 16 kV ESD protection. It operates reliably in temperatures from 0 to 50°C and humidity up to 95%, making it suitable for varied warehouse and manufacturing environments.
What is the reading angle capability of the QW2170-BK?
The QW2170-BK offers exceptional reading flexibility with a pitch of ±65°, roll (tilt) of ±45°, and skew (yaw) of ±70°, combined with a wide scanning angle and extended scanning line. This wide-angle capability allows users to scan barcodes at various orientations without increasing scanning distance, improving operational efficiency.
What are the power requirements for the QW2170-BK scanner?
The QW2170-BK requires 5 VDC ±0.5V input voltage with typical operating current of 340 mA and standby current of 190 mA. As a corded scanner, it draws continuous power from your system rather than relying on batteries, ensuring uninterrupted operation throughout your shift. Contact us today for integration support with your existing infrastructure.
The Datalogic QW2170-BK Barcode Scanner is also known as
DTL-QW2170BK
or QW2170BK.
