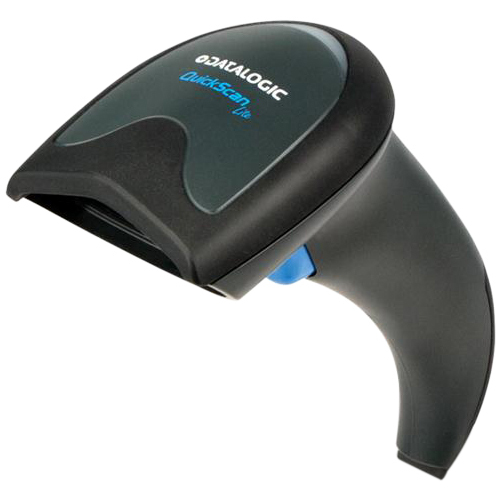

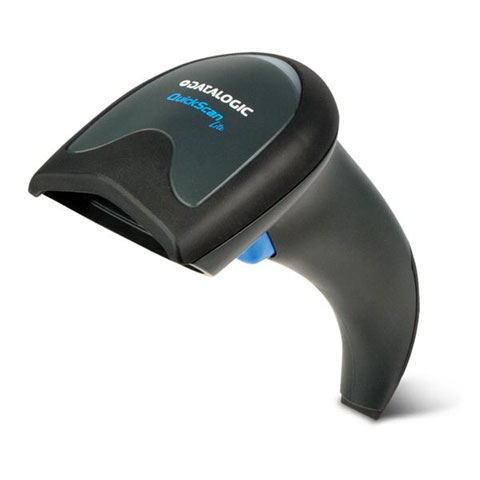

Datalogic QuickScan QW2100 Barcode Scanner Model Overview
Discover the QuickScan™ Lite QW2100, a versatile linear imager designed to efficiently read both long and truncated barcodes. Ideal for retail, light manufacturing, document processing, and banking environments, its compact and ergonomic design ensures comfort during prolonged usage. Equipped with a wide scanning angle and a high-performance scanning line, the QW2100 effortlessly scans various 1D barcodes, including utility bills and electronic parts. With options for USB or Keyboard Wedge interface and a variety of packaging options, it caters to your operational needs.
Key Features:
Wide scan angle for efficient barcode capturing
Thinner and brighter scan line for improved accuracy
Datalogic's patented 'Green Spot' technology for good-read feedback
Two interface options: USB or Keyboard Wedge / RS-232
Drop resistant up to 1.5 m / 5.0 ft
Compact, collapsible, and adjustable stand
Specifications:
Decoding Capability: 1D/Linear Codes, Postal Codes, Stacked Codes
Electrical:
Operating Current: < 180 mA @ 5 VDC
Input Voltage: 5 VDC +/- 0.5 V
Environmental:
Drop Resistance: Withstands drops from 1.5 m / 5.0 ft
Humidity: 5-95% Non-Condensing
Sealing Rating: IP42
Physical Characteristics:
Dimensions: 17.0 x 6.5 x 7.0 cm / 6.7 x 2.5 x 2.7 in
Weight: 119.0 g / 4.2 oz
Reading Performance:
Maximum Read Rate: 400 reads/sec
Maximum Resolution: 0.102 mm / 4 mils (1D Codes)
Warranty: 3-Year Factory Warranty
Datalogic QW2120-BKK1 Barcode Scanner Overview
The QuickScan™ reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan Lite QW2100 linear imager is an entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world. It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments.
Ease of Care Agreement, Datalogic QuickScan I Lite QW2100, QuickScan Lite, 5 Days, 5 Years, Service, Carry-in, Maintenance, Parts & Labor, Physical Service
What barcode types can the Datalogic QW2120 scanner read?
The QW2120 is a 1D linear imager that autodiscriminates all standard 1D codes including GS1 DataBar linear codes, stacked codes like GS1 DataBar Expanded Stacked, and postal codes such as USPS Postnet and Royal Mail. With its 400 reads per second performance and wide 48° field of view, it's ideal for reading longer and wider barcodes found on utility bills and electronic parts inventory. We offer this scanner with full technical support for your specific barcode requirements.
Is the QW2120 scanner durable enough for warehouse environments?
Yes, the QW2120 is built for rugged daily operations with IP42 particulate and water sealing protection and the ability to withstand repeated drops from 1.5 meters onto concrete. It also features 16 kV ESD protection and operates reliably in ambient light up to 100,000 lux and temperatures from 0 to 50°C. Contact us today if you need a scanner that can handle demanding warehouse and logistics environments.
What connectivity options does the QW2120 barcode scanner offer?
The QW2120 connects via USB interface and includes a USB cable (part 90A052065) for direct integration with your computer or POS system. It also supports keyboard wedge and RS-232 interfaces, making it compatible with legacy systems and modern setups alike. Visit barcodesinc.com to verify compatibility with your specific IT infrastructure.
How does the QW2120's scanning performance compare to other handheld scanners?
The QW2120 delivers snappy reading performance at 400 scans per second with an extended scanning line and wide scanning angles (pitch ±65°, roll ±45°, skew ±70°), allowing operators to scan at various angles without increasing scanning distance. The thinner, brighter scanning line makes it particularly effective for hard-to-read codes and longer barcodes typical in manufacturing and utilities. We offer the QW2120 as part of Datalogic's QuickScan Lite line, designed specifically for general-purpose handheld scanning needs.
What is the weight and size of the QW2120 scanner?
The QW2120 is compact and lightweight at 119 grams (4.2 oz) with dimensions of 17.0 x 6.5 x 7.0 cm (6.7 x 2.5 x 2.7 inches), making it comfortable for all-day handheld use during daily warehouse operations. Its ergonomic design reduces operator fatigue during extended scanning sessions. Available from us in black, this scanner balances portability with durability for mobile data collection.
What power and operating specifications should I know about the QW2120?
The QW2120 operates on standard 5 VDC +/- 0.5V input with typical current draw of 340 mA during operation and 190 mA in standby mode, making it suitable for continuous warehouse use. It features a red LED light source (610-650 nm) with a minimum 25% print contrast ratio requirement and includes adjustable tone beeper and Datalogic's 'Green Spot' good read feedback. Contact us today to discuss power supply options and integration with your facility's electrical infrastructure.
The Datalogic QW2120-BKK1 Barcode Scanner is also known as
DTL-QW2120BKK1
or QW2120BKK1.
Full specifications (PDF)
