Datalogic QS65B-3050300-501R Barcode Scanner

The Datalogic QS65B-3050300-501R Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic QS6500BT - Datalogic QuickScan QS6500BT Bar Code Reader - Wireless - Linear
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Scan barcodes with a staggering speed of 450 scan/s
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • A trustworthy linear image scanning provides solid state barcode reading
  • Laser-free design provides high-performance scanning without the risk of eye injury
Read More
Discontinued Need Assistance?
Add to Quote

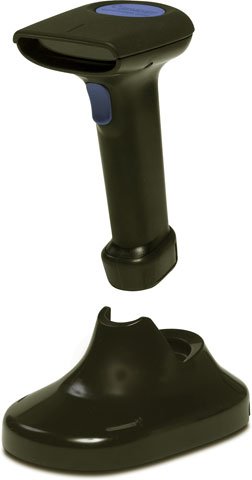

Datalogic QS6500BT Barcode Scanner Model Overview
The QS6500BT combines the latest in linear imaging technology with certified Bluetooth cordless communications up to 33' away from the base unit. The QS6500BT is designed for customers seeking better performance in a handheld scanner for retail, health care, inventory, light commercial, and office applications. The QS6500BT offers aggressive scanning performance with up to 450 scans per second and improved durability and reliability resulting from the elimination of the moving parts typical in older technology laser hand held scanners. Datalogic is a part of Datalogic Scanning, Inc, the recognized worldwide leader in high-performance data capture.
Datalogic QS65B-3050300-501R Barcode Scanner Overview

The QuickScan QS6500BT Bar Code Reader is a high performance member of the QuickScan family designed for retail and general purpose applications. The QS6500BT adds Class I Bluetooth wireless capability to the high speed QS6500, and complaint with the Bluetooth 1.2 standard. The QS6500BT has the ability to read most 1D bar codes while also offering the ability to read several 2D codes like PDF-417, Micro PDF, and EAN 128 stacked composite codes.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
2D
Barcode Symbology Supported:
  • UPC A
  • UPC E
  • EAN 8
  • EAN 13
  • JAN 8 Add-ons (sub 2 or P2, sub 5 or P5 & C128)
  • JAN 13 Add-ons (sub 2 or P2, sub 5 or P5 & C128)
  • Codabar/NW7
  • Code 39 (full ASCII)
  • Code 11
  • GS1 DataBar Expanded, Stacked, Limited and Composites
  • Code 16K
  • ISBN / Bookland EAN
  • Code 93
  • Pharmacode 39
  • Code 128
  • Interleaved 2 of 5
  • UK/Plessey
  • Standard 2 of 5
  • MSI/Plessey
  • PDF-417
  • Micro-PDF
  • ISBT 128
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
450 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 2" - 4.5"@5mil
  • 1" - 6"@7.5mil
  • 0" - 10"@10mil
  • 0" - 13"@13mil - 100% UPC
  • 21"@20mil
  • 35"@40mil
Scan Pattern:
Linear
Scanning Distance:
32.81 ft
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
7.1"
Width:
2.9"
Depth:
4.4"
Weight (Approximate):
8 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • RS-232
  • IBM USB
  • Keyboard Wedge
  • USB
  • IBM 46XX
  • Wand Emulation

USB Cable separate

Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 43211701
