Datalogic QS65B-3010100-105 Barcode Scanners


0.0

(No reviews)

Be the first to

Write a Review

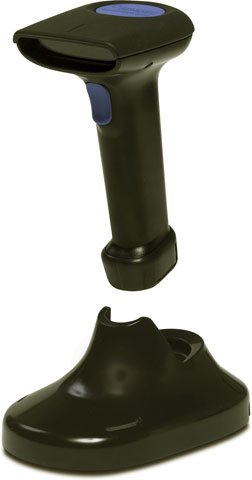

Datalogic QS6500BT - 1D & PDF417 Cordless Imager Kit, Base Station with 9' RS-232 Cable, Power supply, Color: Black
Faster Performance with Cordless Freedom!

The QS6500BT combines the latest in linear imaging technology with certified Bluetooth cordless communications up to 33' away from the base unit. The QS6500BT is designed for customers seeking better performance in a handheld scanner for retail, health care, inventory, light commercial, and office applications. The QS6500BT offers aggressive scanning performance with up to 450 scans per second and improved durability and reliability resulting from the elimination of the moving parts typical in older technology laser handheld scanners. Datalogic is a part of Datalogic Scanning, Inc, the recognized worldwide leader in high-performance data capture.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Linear
  • Scan Rate: 450 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 32.81 ft
  • Light Source: LED
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • JAN-8
    • Codabar (NW7)
    • Code 39 Full ASCII
    • Code 11
    • RSS-14
    • RSS-Expanded
    • RSS-Limited
    • RSS-Stacked
    • Code 16K
    • ISBN / Bookland EAN
    • Pharmacode 39
    • Code 128
    • Interleaved 2 of 5
    • UK Plessey
    • Standard 2 of 5
    • MSI/PLESSEY
    • IATA
    • PDF 417
    • Micro PDF
    • RSS Composite
    • JAN13 Add-ons sub 2 or P2, sub 5 or P5 & C128
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • JAN-8
    • Codabar (NW7)
    • Code 39 Full ASCII
    • Code 11
    • RSS-14
    • RSS-Expanded
    • RSS-Limited
    • RSS-Stacked
    • Code 16K
    • ISBN / Bookland EAN
    • Pharmacode 39
    • Code 128
    • Interleaved 2 of 5
    • UK Plessey
    • Standard 2 of 5
    • MSI/PLESSEY
    • IATA
    • PDF 417
    • Micro PDF
    • RSS Composite
    • JAN13 Add-ons sub 2 or P2, sub 5 or P5 & C128
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2" - 4.50"@5 mil
    • 1" - 6"@7.50 mil
    • 0 mil - 10.50"@10 mil
    • 0 mil - 13"@13 mil - 100% UPC
    • 21"@20 mil
    • 35"@40 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: QS6500BT
  • Product Name: QuickScan QS6500BT Barcode Reader
  • Product Line: QuickScan

Physical Characteristics

  • Height: 7.1"
  • Width: 2.9"
  • Depth: 4.4"
  • Color: Black
  • Weight (Approximate): 8 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • QuickScan QS6500BT Barcode Reader
    • Base Station
    • External Power Supply
    • 12ft Cable
    • QuickScan QS6500BT Barcode Reader
    • Base Station
    • External Power Supply
    • 12ft Cable
  • Certifications & Standards:
    • Electrical:
    • Gost R
    • UL
    • cUL
    • IEC60950
    • Emissions:
    • FCC-A
    • EN 55022-B
    • CISPR-22
    • VCCI-B
    • Radio:
    • FCC Part 15C
    • FCC Part 15RFCC Part TTE
    • FCC Part IC
    • FCC Part IDA
    • Laser Classification:
    • IEC 60825 Class 1 LED
    • Restriction of Hazardous Substances:
    • EU RoHS
  • Additional Information:
    • Interface Option:
    • SerialKeyboard WedgeUSBWand EmulationISB 46XX

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 14 V DC

Full specifications (PDF)

Full specifications (PDF)

Brand Datalogic
Model QS6500BT
Connectivity Cordless
