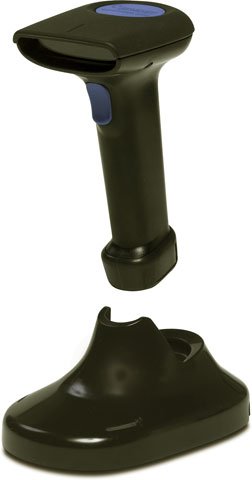

Datalogic QS6500BT – Barcode Scanner – Cordless – 1D

Part Number: QS65B-1030100-301
Model: QS6500BT

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Connectivity
Cordless
Scanner Capability
1D

Product Description:

  Datalogic QuickScan QS6500BT Bar Code Reader - Wireless Connectivity - 450 scan/s - 30 ft Scan Distance - 1D, 2D - Imager - Linear - Bluetooth - Multi-interface - Gray

Datalogic QS6500BT Barcode Scanner Model Overview

The QS6500BT combines the latest in linear imaging technology with certified Bluetooth cordless communications up to 33' away from the base unit. The QS6500BT is designed for customers seeking better performance in a handheld scanner for retail, health care, inventory, light commercial, and office applications. The QS6500BT offers aggressive scanning performance with up to 450 scans per second and improved durability and reliability resulting from the elimination of the moving parts typical in older technology laser hand held scanners. Datalogic is a part of Datalogic Scanning, Inc, the recognized worldwide leader in high-performance data capture.
Datalogic QS65B-1030100-301 Barcode Scanner Overview

The QuickScan QS6500BT Bar Code Reader is a high performance member of the QuickScan family designed for retail and general purpose applications. The QuickScan QS6500BT Bar Code Reader also features an excellent depth of field, multi-interface capability.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • JAN-8
  • JAN-13
  • EAN-8
  • EAN-13
  • Codabar (NW7)
  • Code 39 Full ASCII
  • Code 11
  • Code 16K
  • Code 93
  • Code 128
  • UK Plessey
  • MSI/PLESSEY
  • RSS-14 Stacked
  • RSS-14 Expanded
  • RSS-14
  • RSS-14 Limited
  • ISBN / Bookland EAN
  • Pharmacode 39
  • Interleaved 2 of 5
  • Standard 2 of 5
  • IATA
  • RSS Composite
  • PDF 417
  • Micro PDF
Image Sensor Type:
Imager
Scan Rate:
450 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 2" - 4.5"@5mil
  • 1" - 6"@7.5mil
  • 0" - 10.5"@10mil
  • 0" - 13"@13mil - 100% UPC
  • 21"@20mil
  • 35"@40mil
Scan Pattern:
Linear
Scanning Distance:
30 ft
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
14 V DC
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
Handheld
Product Color:
Gray
Height:
7.1"
Width:
2.9"
Depth:
4.4"
Weight (Approximate):
8 oz
Miscellaneous
Package Contents:
  • QuickScan QS6500BT Bar Code Reader
  • 8ft Keyboard Wedge 5/6 Din Cable
  • 3ft IBM AT/PS2 Cable
  • Base Station
  • Power Supply
Additional Information:

Interface Option:

  • Keyboard Wedge
  • AT/PS2
  • IBM 46XX
  • IBM USB
  • Serial
  • Wand Emulation

USB Cable separate

Certifications & Standards:
  • Laser Classification: IEC 60825 Class 1 LED
  • Water & Dust: IEC 60529 rating IP52DW

Electrical:

  • Gost R
  • UL
  • cUL
  • IEC60950

Emissions:

  • FCC-A
  • EN 55022-B
  • CISPR-22
  • VCCI-B

Radio:

  • FCC Part 15C
  • R and TTE
  • IC and IDA
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
