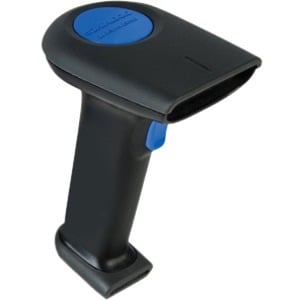

Datalogic QS65-4060001-601R Barcode Scanner

The Datalogic QS65-4060001-601R Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic QS6500 - Datalogic QuickScan QS6500 Handheld Bar Code Reader - Wired - Linear
  • Scan barcodes with a staggering speed of 450 scan/s
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • LED aimer is a perfect choice for patient-facing applications
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
Discontinued Need Assistance?
Add to Quote

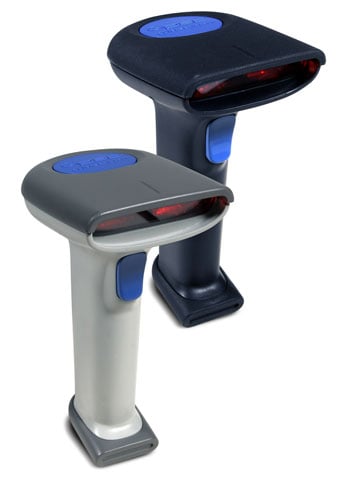

Datalogic QS6500 Barcode Scanner Model Overview
The Datalogic QS6500 is Datalogic's newest general purpose handheld scanner, featuring the latest in linear imaging technology. For retail, office, healthcare and light industrial customers looking for a handheld scanner that has premium performance and durability at an affordable price, the QS6500 offers the best price/performance in the market. The Datalogic QS6500 provides many benefits including aggressive scanning performance, an ergonomic enclosure, excellent depth-of-field, snappy 1D and PDF barcode reading, bright targeting beam, and superior durability and reliability.
Datalogic QS65-4060001-601R Barcode Scanner Overview

The QuickScan QS6500 Bar Code Reader offers a high performance scanner for retail and general purpose applications. The QS6500 linear imaging scanner has the ability to read most 1D bar codes while also offering the ability to read stacked 2D codes like PDF-417, Micro PDF and EAN 128 stacked composite codes.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
2D
Barcode Symbology Supported:
  • UPC A
  • UPC E
  • EAN 8
  • EAN 13
  • JAN 8 Add-ons sub 2 or P2
  • JAN 8 Add-ons sub 5 or P5
  • JAN 8 Add-ons C128
  • JAN 13 Add-ons sub 2 or P2
  • JAN 13 Add-ons sub 5 or P5
  • JAN 13 Add-ons C128
  • GS1 DataBar
  • GS1 Expanded
  • GS1 Stacked
  • GS1 Limited
  • ISBN / Bookland EAN
  • Code 39 (with full ASCII)
  • Pharmacode 39
  • Code 128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Code 16K
  • Code 11
  • Codabar/NW7
  • UK/Plessey
  • MSI/Plessey
  • ISBT 128
  • GS1 DataBar Composites
  • PDF-417
  • Micro-PDF
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
450 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 2" - 5"@5mil - Linear
  • 1" - 7"@7.5mil
  • 0" - 12"@10mil
  • 0" - 15"@13mil
  • 24"@20mil
  • 40"@40mil - 100% UPC
  • 2" - 4.5"@5mil - Linear
  • 1" - 6"@7.5mil
  • 0" - 10.5"@10mil
  • 0" - 13"@13mil
  • 21"@20mil
  • 35"@40mil - 100% UPC
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
6"
Width:
2.9"
Depth:
3.9"
Weight (Approximate):
6.40 oz
Miscellaneous
Package Contents:
  • QuickScan QS6500 Handheld Bar Code Reader
  • 12 ft. USB Power Plus Cable
  • CD
Additional Information:

Supported Interfaces:

  • RS-232
  • Keyboard Wedge
  • IBM 46XX
  • IBM USB
  • USB

USB Cable separate

Certifications & Standards:

Electrical:

  • EN60950
  • CSA60950
  • UL60950

Emissions:

  • FCC-A
  • EN 55022-B
  • BSMI 13438
  • AS/NZS 3548
  • VCCI-B
  • ICES-003

Laser Classification:

  • IEC 60825 Class 1 LED

Restriction of Hazardous Substances:

  • EU RoHS
Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic QS65-4060001-601R Barcode Scanner is also known as QS654060001601R
