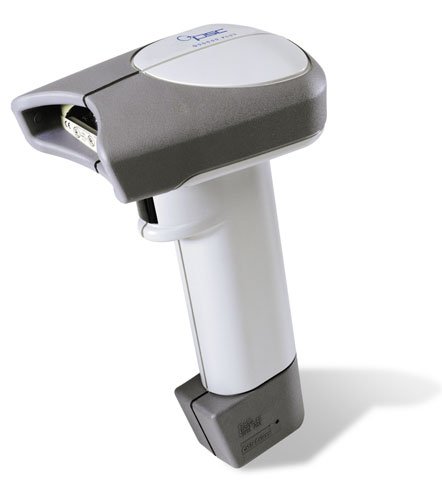

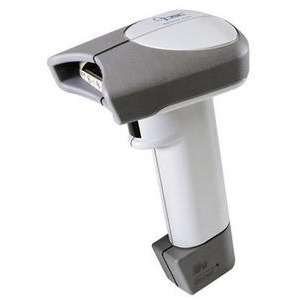

Datalogic QS6-9100 Barcode Scanner

The Datalogic QS6-9100 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic QS6000 Plus - Datalogic QuickScan QS6000 Plus Bar Code Reader - Wired
  • Creates a high ROI because of diminishment in workforce and descend inventory errors
  • Scan barcodes with a staggering speed of 42 scan/s
  • Powerful laser scan source provides 42 scan/s decode rate
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
Discontinued Need Assistance?
Add to Quote
Datalogic QS6000 Plus Barcode Scanner Model Overview
The QS6000 Plus handheld scanner offers great performance at a very affordable price. With a high first pass read rate and the best speed-to-read of any scanner in its class, the QS6000 Plus speeds retail checkout. and its 13" (33 cm) depth of field with 100% UPC labels extends the users working range. With a high visibility option, utilizing a 650nm laser diode, the user can target and read barcodes even in bright light conditions due to the scanners inherent tolerance of high ambient light conditions. Plus, Datalogic's advanced electronics perform well even when reading low contrast labels with poor edge definition. Each unit ships with one user's guide.
Datalogic QS6-9100 Barcode Scanner Overview

The QuickScan QS6000 Plus handheld Bar Code Reader offers great performance at a very affordable price. With a high first pass read rate and the best speed-to-read of any scanner in its class, the QS6000 Plus speeds retail checkout and other general applications. This high performance laser scanner offers extended depth-of-field, allowing the user to read labels at distances of 20" (50 cm) and beyond. Plus, PSC's advanced electronics perform well even when reading low contrast labels with poor edge definition.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC-A
  • EAN-8
  • EAN-13
  • JAN-8
  • JAN-13
  • Code 128
  • EAN-128
  • Codabar
  • Pharmacode 39
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • IATA
  • Code 39
  • MSI/PLESSEY
  • EAN Extensions
  • UPC Extensions
Light Source:
Laser
Scan Rate:
42 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1" - 3"@5mil
  • 0.5" - 6"@7.5mil
  • 0" - 9"@10mil
  • 0" - 13"@13mil
  • 0" - 20"@20mil
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
14 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
Gray
Height:
6.5"
Width:
2.8"
Depth:
4.2"
Weight (Approximate):
6.50 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Wand Emulation

USB Cable separate

Certifications & Standards:

Electrical:

  • Gost R
  • TÜV
  • UL
  • cUL

Emissions:

  • FCC-A
  • EN 55022-B
  • BCIQ CNS 13438
  • AS/NZS 3548
  • VCCI-B

Laser classification:

  • CDRH Class IIa
  • IEC 60825 Class 1 & 2
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic QS6-9100 Barcode Scanner is also known as PSC-QS600081 or QS6-9100.
