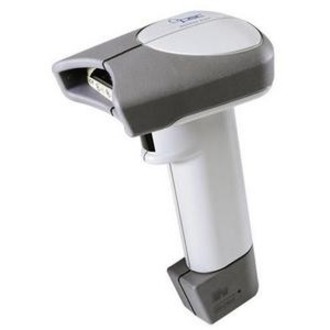

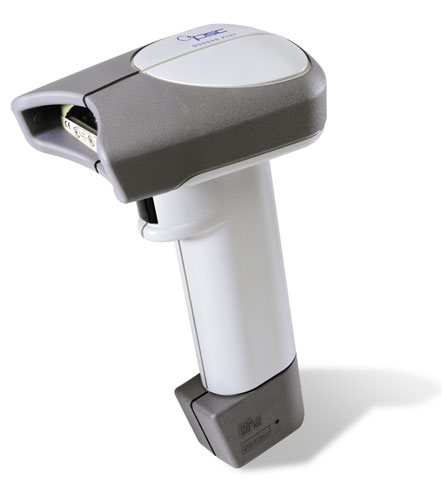

Datalogic QS6-6100 Barcode Scanners


0.0

(No reviews)

Be the first to

Write a Review
Datalogic QS6000 Plus - SCANNER ONLY. 1D Laser, PoweredUSB interface. Interface and power cables are not included. Color: Gray. Call to purchase.
Features an unprecedented combination: the performance and design of a high-end POS scanner and an affordable price.

The QS6000 Plus handheld scanner offers great performance at a very affordable price. With a high first pass read rate and the best speed-to-read of any scanner in its class, the QS6000 Plus speeds retail checkout. and its 13" (33 cm) depth of field with 100% UPC labels extends the users working range. With a high visibility option, utilizing a 650nm laser diode, the user can target and read barcodes even in bright light conditions due to the scanners inherent tolerance of high ambient light conditions. Plus, Datalogic's advanced electronics perform well even when reading low contrast labels with poor edge definition. Each unit ships with one user's guide.

Technical Information

  • Form Factor: Handheld Scanner
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • JAN-8
    • JAN-13
    • Code 128
    • EAN-128
    • Pharmacode 39
    • Code 39
    • Code 93
    • Interleaved 2 of 5
    • Standard 2 of 5
    • IATA
    • MSI/PLESSEY
    • RSS
    • Codabar
  • Scanner Type: Laser
  • Scan Rate: 42 scans/sec (nominal)
  • Interface Options: IBM USB
  • Interface Connectivity: Corded
  • Input Voltage Range: 4.5 to 14 V DC
  • Depth of Field:
    • 1 - 3"@5mils
    • 0.5 - 6"@7.5mils
    • 0 - 9"@10mils
    • 0 - 13"@13mils
    • 20"@20mils

General Information

  • Manufacturer:
  • Product Line: QuickScan
  • Product Name: QuickScan QS6000 Plus Barcode Scanner

Physical Characteristics

  • Dimensions: 6.5" (165.1mm) x 2.8" (71.12mm) x 4.2" (106.68mm)
  • Weight: 6 oz - (scanner)
  • Color: Gray

Agency Approvals

  • Agency Approvals:
    • Gost R
    • TÃúV
    • UL
    • cUL
    • FCC-A
    • EN 55022-B
    • BCIQ CNS 13438
    • AS/NZS 3548
    • VCCI-B
    • CDRH Class IIa; (ATTENTION: Laser Radiation - do not stare into beam)
    • IEC 60825 Class 1 & 2

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 5 Year(s)

Full specifications (PDF)

Full specifications (PDF)

Brand Datalogic
Model QS6000 Plus
Scanner Capability 1D
Scanner Type Laser
