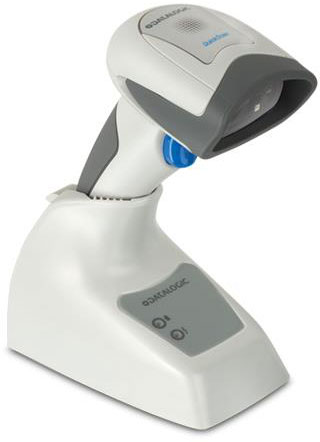

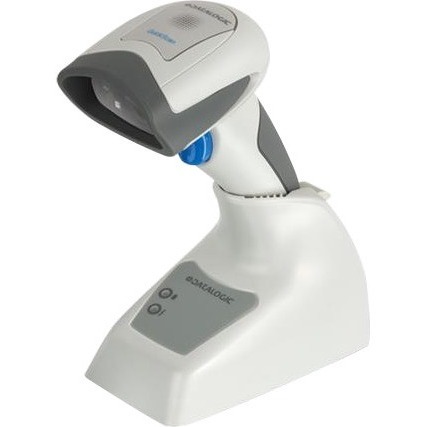

Datalogic QM2131-WH-433 Barcode Scanner

The Datalogic QM2131-WH-433 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Quickscan QM2131 - Cordless Barcode Scanner, Datalogic Quickscan QM2131, 1D Linear Imager, General Purpose, Handheld, 433 MHz, Multi-Interface Connection, SCANNER ONLY, White. Kit inc. Imager and Base Station/Charger. Cables and power supply must be purchased separately.
Connectivity
Cordless
Form Factor
Handheld
Interface Options
Bluetooth
Scanner Capability
1D
Scanner Type
Imager, Laser
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Scan barcodes with a staggering speed of 400 scan/s
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
Read More
Datalogic QuickScan QM2131 Barcode Scanner Model Overview
Datalogic's Quickscan I QM2131 bar code scanner has an extra wide field of view and extra long scan line which makes reading long bar codes in closer distance much easier. The QM2131 is ideal for applications including utilities bills, document processing and packaging, and more. The cordless feature of the QM2131 allows mobility in the workforce with an innovative, long lasting, and user replaceable Li-ion battery package which allows fast replacement.
Datalogic QM2131-WH-433 Barcode Scanner Overview

Long bar codes are commonly used in a variety of applications including, utilities bills, document processing and packaging. These long codes are a challenge for full area imagers to read due to their narrow field of view and shorter depth of field.

The QuickScan QM2131 imager's extra-wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.

Featuring Datalogic's STAR 2.0 Cordless System for narrow band 433 Mhz radio communications, the QM2131 linear imager provides secure radio communications with no risk of interference from Wi-Fi infrastructure and very low sensitivity to obstacles like concrete walls, wood or metal shelves.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
1D
Barcode Symbology Supported:
1D / Linear Codes
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
Stacked Codes
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • UPC A/E Composites
Image Sensor Type:
Imager
Scan Rate:
400 scan/s
Network & Communication
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
  • Serial
  • USB
  • Keyboard Wedge
Physical Characteristics
Form Factor:
Handheld
Product Color:
White
Height:
6.4"
Width:
1.6"
Depth:
3.6"
Weight (Approximate):
6.70 oz
Miscellaneous
Additional Information:

USB Cable separate

Item Numbers
GTIN: 5711783171041
EAN: 5711783171041
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic QM2131-WH-433 Barcode Scanner is also known as DTL-QM2131WH433
