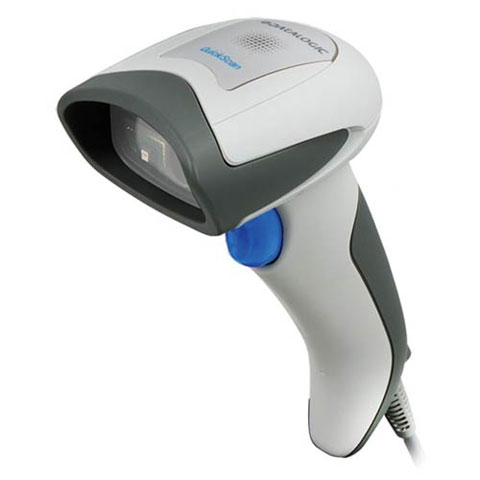

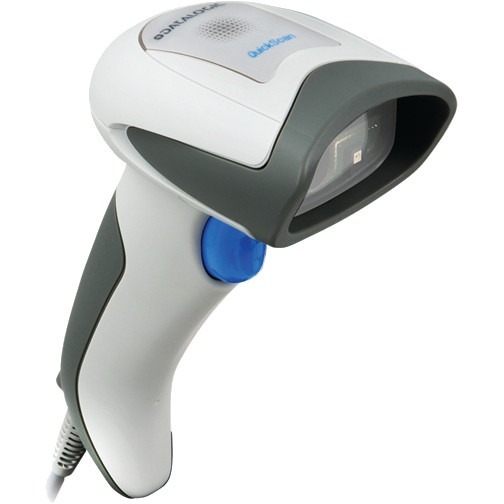

Datalogic QD2430-WHK1S Barcode Scanner

Datalogic QuickScan QD2430 - Corded Barcode Scanner, Datalogic QuickScan QD2430, 2D Area Imager, General Purpose, Handheld, USB Kit with 90A052065 Cable and Stand, White
  • Outstanding snappiness
  • Omnidirectional reading
  • Reduced visual stress with LED-based aiming system
  • Datalogic's patented 'Green Spot' technology for good-read feedback
  • Advanced motion tolerance optics
  • Host download capability ready
Read More
$288.38
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Datalogic Parts Accessory Model Overview
Products and parts from Datalogic.
Datalogic QD2430-WHK1S Barcode Scanner Overview

The popularity of 2D bar codes has spread across all market segments of the data capture industry. Now, with more affordable pricing and virtually no drawbacks with area imaging technology, 2D bar code readers are in high demand with features such as reading from mobile phone displays or in planning ahead for future 2D codes and imaging needs.

The QuickScan™ QD2400 2D imager was specifically created to address the needs of retailers and meet the market demand with outstanding omnidirectional reading performance on virtually all codes at an affordable price. Elegant design details are incorporated into a smaller, balanced lightweight enclosure without sacrificing Datalogic's well-known durability.

Ideally suited for applications at the point-of-sale (POS), the QuickScan QD2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during the daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code. The result is a precise aiming system which contributes to low eye fatigue, yet still allows top operator efficiency.

The QuickScan QD2400 imager reads typical printed linear bar codes as well as complex 2D bar codes displayed on the screen of a mobile device or loyalty cards. The QD2400 imager provides a fast, reliable scan from an elegant and robust 2D imager.

Imaging technology meets or exceeds the productivity compared to laser scanners and provides the additional advantages of a lower cost-of-ownership and greater product reliability over the long term.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D / Linear Codes:
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
2D Codes:
  • Aztec Code
  • Aztec Mesas
  • Data Matrix
  • MaxiCode
  • QR Code
  • Micro QR Code
  • China Han Xin Code
Postal Codes:
  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • Japanese Post
  • IMB
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)
Stacked Codes:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type:
Imager
Stand Included:
Yes
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Color:
White
Weight (Approximate):
5.11 oz
Miscellaneous
Package Contents:
  • QuickScan I QD2430 Handheld Barcode Scanner
  • 90A052065 Cable
  • Stand
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
  • EU RoHS
  • China RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0088442127011
UPC: 088442127011
EAN: 0088442127011
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic QD2430-WHK1S Barcode Scanner is also known as DTL-QD2430WHK1S or QD2430WHK1S.
