Datalogic QuickScan QD2430 – Barcode Scanner – Corded – 1D, 2D – Cable Only

Part Number: QD2430-WHK1
Model: QuickScan QD2400

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
USB
Scanner Capability
1D, 2D

Product Description:

  Corded Barcode Scanner, Datalogic QuickScan QD2430, 2D Imager, General Purpose, Handheld, USB Kit with 90A052065 Cable, White

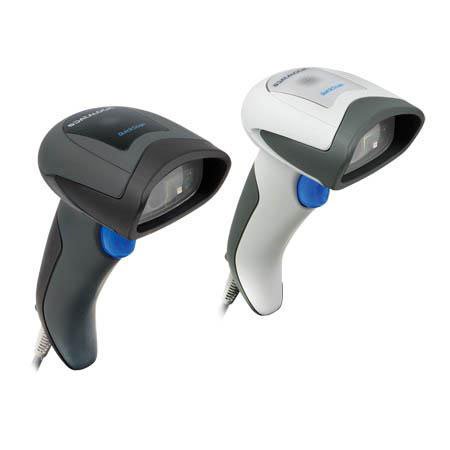

Datalogic QuickScan QD2400 Barcode Scanner Model Overview

The Datalogic QuickScan QD2400 2D imager was specifically created to address the needs of retailers and meet the market demand with outstanding omnidirectional reading performance on virtually all codes at an affordable price. Elegant design details are incorporated into a smaller, balanced lightweight enclosure on the QuickScan QD2400, without sacrificing Datalogic?s well-known durability. Ideally suited for applications at the point-of-sale (POS), the QuickScan QD2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during the daily scanning activities. The QuickScan QD2400 imager reads typical printed linear bar codes as well as complex 2D bar codes displayed on the screen of a mobile device or loyalty cards.
Datalogic QD2430-WHK1 Barcode Scanner Overview

The popularity of 2D bar codes has spread across all market segments of the data capture industry. Now, with more affordable pricing and virtually no drawbacks with area imaging technology, 2D bar code readers are in high demand with features such as reading from mobile phone displays or in planning ahead for future 2D codes and imaging needs.

The QuickScan™ QD2400 2D imager was specifically created to address the needs of retailers and meet the market demand with outstanding omnidirectional reading performance on virtually all codes at an affordable price. Elegant design details are incorporated into a smaller, balanced lightweight enclosure without sacrificing Datalogic's well-known durability.

Ideally suited for applications at the point-of-sale (POS), the QuickScan QD2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during the daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code. The result is a precise aiming system which contributes to low eye fatigue, yet still allows top operator efficiency.

The QuickScan QD2400 imager reads typical printed linear bar codes as well as complex 2D bar codes displayed on the screen of a mobile device or loyalty cards. The QD2400 imager provides a fast, reliable scan from an elegant and robust 2D imager.

Imaging technology meets or exceeds the productivity compared to laser scanners and provides the additional advantages of a lower cost-of-ownership and greater product reliability over the long term.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D / Linear Codes:
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
2D Codes:
  • Aztec Code
  • Aztec Mesas
  • Data Matrix
  • MaxiCode
  • QR Code
  • Micro QR Code
  • China Han Xin Code
Postal Codes:
  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • Japanese Post
  • KIX Post; Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)
Stacked Codes:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type:
Imager
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Product Color:
White
Height:
6.4"
Width:
1.6"
Depth:
3.6"
Weight (Approximate):
5.11 oz
Miscellaneous
Package Contents:
  • QuickScan I QD2430 Handheld Barcode Scanner
  • 90A052065 Cable
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Country of Origin:
Vietnam
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 5054629652329, 5712505724163
EAN: 5054629652329, 5712505724163
UNSPSC: 43211701
