Datalogic QD2430-WH Barcode Scanner

Datalogic QuickScan QD2430 - Corded Barcode Scanner, Datalogic QuickScan QD2430, 2D Imager, General Purpose, Handheld, Multi-Interface Connection, SCANNER ONLY, White
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Streamline your business processes with an imager that point-shoots with high-performance scanning
Read More
$249.62
Recommended TrueSupport Coverage (/mo.)
Quantity Unit Price Discount
2 $247.12 1% OFF
5 $242.13 3% OFF
Add to Quote

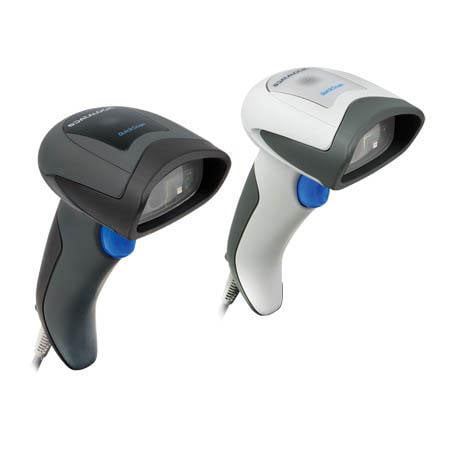

Datalogic QuickScan QD2400 Barcode Scanner Model Overview
The Datalogic QuickScan QD2400 2D imager was specifically created to address the needs of retailers and meet the market demand with outstanding omnidirectional reading performance on virtually all codes at an affordable price. Elegant design details are incorporated into a smaller, balanced lightweight enclosure on the QuickScan QD2400, without sacrificing Datalogic?s well-known durability. Ideally suited for applications at the point-of-sale (POS), the QuickScan QD2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during the daily scanning activities. The QuickScan QD2400 imager reads typical printed linear bar codes as well as complex 2D bar codes displayed on the screen of a mobile device or loyalty cards.
Datalogic QD2430-WH Barcode Scanner Overview

The popularity of 2D bar codes has spread across all market segments of the data capture industry. Now, with more affordable pricing and virtually no drawbacks with area imaging technology, 2D bar code readers are in high demand with features such as reading from mobile phone displays or in planning ahead for future 2D codes and imaging needs.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

2D Codes:

  • Aztec Code
  • Aztec Mesas
  • Data Matrix
  • MaxiCode
  • QR Code
  • Micro QR Code
  • China Han Xin Code

Postal Codes:

  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type:
Imager
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 0.2" - 5.9"@5mil - Code 39
  • 0.2" - 13.8"@13mil - EAN/UPCA
  • 0.4" - 5.1"@6.6mil - PDF417
  • 0.4" - 5.1"@10mil - Data Matrix
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
  • Keyboard Wedge
  • Serial
  • USB
Physical Characteristics
Form Factor:
Handheld
Product Color:
White
Height:
6.4"
Width:
1.6"
Depth:
3.6"
Weight (Approximate):
5.11 oz
Miscellaneous
Additional Information:

USB Cable separate

Country of Origin:
Vietnam
Item Numbers
GTIN: 5711045697920
EAN: 5711045697920
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic QD2430-WH Barcode Scanner is also known as DTL-QD2430-WH or QD2430WH.
