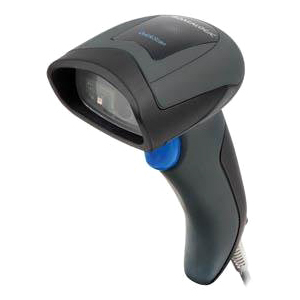

Datalogic QD2430-BKK1 Barcode Scanner

Datalogic QuickScan QD2430 - Corded Barcode scanner, Datalogic QuickScan QD2430, 2D Imager, General Purpose, Handheld, USB Kit with 90A052065 Cable, Black
$186.90
In Stock:
Ships Same Day

Full specifications (PDF)

Omnidirectional reading with advanced motion tolerance optics.

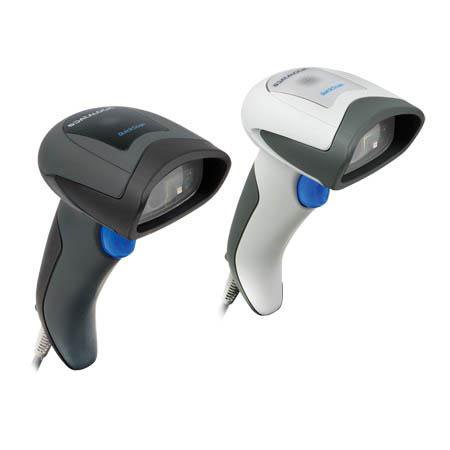

The Datalogic QuickScan QD2400 2D imager was specifically created to address the needs of retailers and meet the market demand with outstanding omnidirectional reading performance on virtually all codes at an affordable price. Elegant design details are incorporated into a smaller, balanced lightweight enclosure on the QuickScan QD2400, without sacrificing Datalogic's well-known durability. Ideally suited for applications at the point-of-sale (POS), the QuickScan QD2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during the daily scanning activities. The QuickScan QD2400 imager reads typical printed linear barcodes as well as complex 2D barcodes displayed on the screen of a mobile device or loyalty cards.
Datalogic QD2430-BKK1 Overview

The popularity of 2D bar codes has spread across all market segments of the data capture industry. Now, with more affordable pricing and virtually no drawbacks with area imaging technology, 2D bar code readers are in high demand with features such as reading from mobile phone displays or in planning ahead for future 2D codes and imaging needs.

Protect Your Product
Datalogic Service Contracts (ZSC2QD24R1)
Ease of Care Agreement, Datalogic QuickScan I QD2400, QD24XX, 2 Days, 1 Year Renewal, Comprehensive
Temporarily out of stock; available to order
$16.90
+ Add to Quote
Datalogic Service Contracts (ZSC1QD2451)
Ease of Care Agreement, Datalogic QuickScan I QD2400, QD24XX, Overnight Replacement, 5 Years, Comprehensive
Temporarily out of stock; available to order
$28.40
+ Add to Quote
Datalogic Service Contract - 5 year (ZSN5QD2451)
Ease of Care Agreement, Datalogic QuickScan I QD2400, QD24XX, 5 Days, 5 Years
Temporarily out of stock; available to order
$21.00
+ Add to Quote
Datalogic Service Contract - 3 year (ZSN5QD2431)
Ease of Care Agreement, Datalogic QuickScan I QD2400, QD24XX, 5 Days, 3 Years
Temporarily out of stock; available to order
$13.00
+ Add to Quote
Datalogic Service Contract - 5 year (ZSC2QD2451)
Ease of Care Agreement, Datalogic QuickScan I QD2400, QD24XX, 2 Days, 5 Years, Comprehensive
Temporarily out of stock; available to order
$32.00
+ Add to Quote

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

2D Codes:

  • Aztec Code
  • Aztec Mesas
  • Data Matrix
  • MaxiCode
  • QR Code
  • Micro QR Code
  • China Han Xin Code

Postal Codes:

  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type:
Imager
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 0.2" - 5.9"@5mil - Code 39
  • 0.2" - 13.8"@13mil - EAN/UPCA
  • 0.4" - 5.1"@6.6mil - PDF417
  • 0.4" - 5.1"@10mil - Data Matrix
Scan Pattern:
Omni-directional
Scanning Distance:
13.78"
Cable Type Included:
USB
Reading Angle (Skew):
60°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Motion Tolerance:
25 in/s
Maximum Ambient Light:
86000 lux
Drop Specification:
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Minimum Print Contrast:
25%
Maximum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
6.6 mil
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Color:
Black
Height:
6.4"
Width:
1.6"
Depth:
3.6"
Weight (Approximate):
5.11 oz
Miscellaneous
Additional Information:

USB Cable separate

Application/Usage:
Industrial
Item Numbers
GTIN: 0012304597193, 0056235205932, 0196645946787, 0625208286768, 0682017492322, 0996590941840, 5711045697937
UPC: 012304597193, 056235205932, 196645946787, 625208286768, 682017492322, 996590941840
EAN: 0012304597193, 0056235205932, 0196645946787, 0625208286768, 0682017492322, 0996590941840, 5711045697937
UNSPSC: 43211701
