Datalogic QD2430-BK-E Barcode Scanner

Datalogic QuickScan QD2400 E - QuickScan I QD2430 - Cable Connectivity - 1D, 2D - Imager - Black
  • Minimizes your manual entry and provides reliable scanning in a durable form factor
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
Read More

Full specifications (PDF)

Omnidirectional reading with advanced motion tolerance optics.

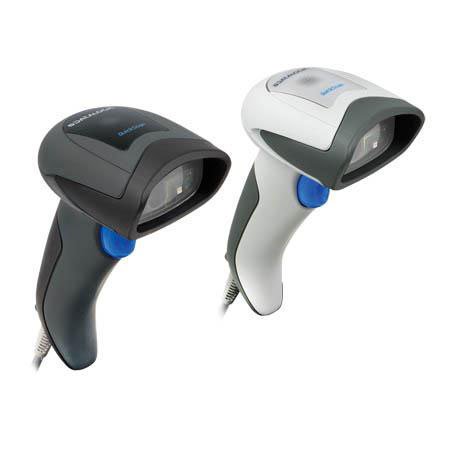

The Datalogic QuickScan QD2400 2D imager was specifically created to address the needs of retailers and meet the market demand with outstanding omnidirectional reading performance on virtually all codes at an affordable price. Elegant design details are incorporated into a smaller, balanced lightweight enclosure on the QuickScan QD2400, without sacrificing Datalogic's well-known durability. Ideally suited for applications at the point-of-sale (POS), the QuickScan QD2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during the daily scanning activities. The QuickScan QD2400 imager reads typical printed linear barcodes as well as complex 2D barcodes displayed on the screen of a mobile device or loyalty cards.
Datalogic QD2430-BK-E Overview

The popularity of 2D bar codes has spread across all market segments of the data capture industry. Now, with more affordable pricing and virtually no drawbacks with area imaging technology, 2D bar code readers are in high demand with features such as reading from mobile phone displays or in planning ahead for future 2D codes and imaging needs.

The QuickScan™ QD2400 2D imager was specifically created to address the needs of retailers and meet the market demand with outstanding omnidirectional reading performance on virtually all codes at an affordable price. Elegant design details are incorporated into a smaller, balanced lightweight enclosure without sacrificing Datalogic's well-known durability.

Loading...

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D / Linear Codes:
  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
2D Codes:
  • Aztec Code
  • Aztec Mesas
  • Data Matrix
  • MaxiCode
  • QR Code
  • Micro QR Code
  • China Han Xin Code
Postal Codes:
  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)
Stacked Codes:
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type:
Imager
Interfaces/Ports
Host Interface:
  • Keyboard Wedge
  • USB
  • Serial
Physical Characteristics
Color:
Black
Height:
6.4"
Width:
1.6"
Depth:
3.6"
Weight (Approximate):
5.11 oz
Miscellaneous
Additional Information:

USB Cable separate

Item Numbers
UNSPSC: 43211701

Loading...

The Datalogic QD2430-BK-E is also known as Data Logic DTL-QD2430BKE or QD2430BKE .
