Datalogic QD2330-WHK1 Barcode Scanner

Datalogic QD2131-WHK1 Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic QD2131-WHK1 Barcode Scanner.
Datalogic QuickScan L: QD2300 - QuickScan D2330 Laser Kit (USB and Cable) - Color: White
  • Metes out excellent operation and rugged structure with smart retailing features which is an ideal choice for bundling terminals, businesses, supermarkets and grocery stores
  • Scan barcodes with a staggering speed of 100 scan/s
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More
Discontinued See Replacement
Add to Quote

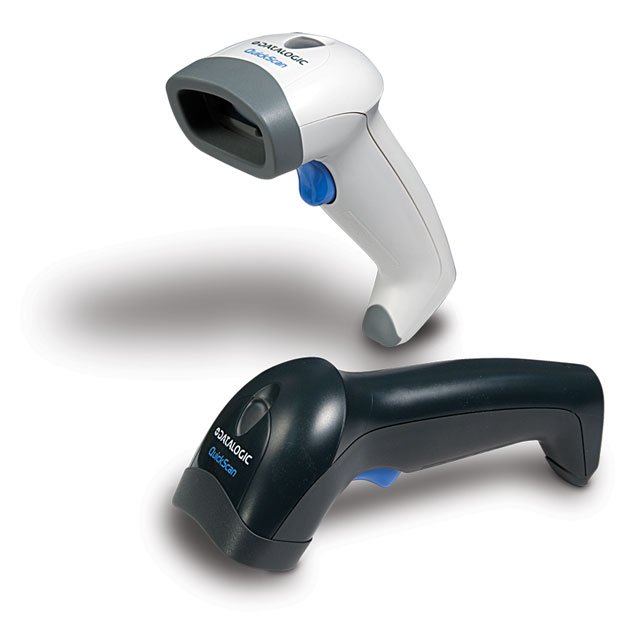

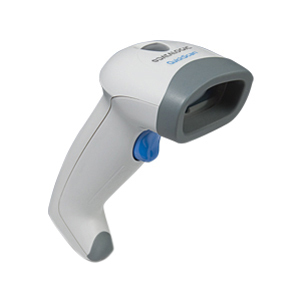

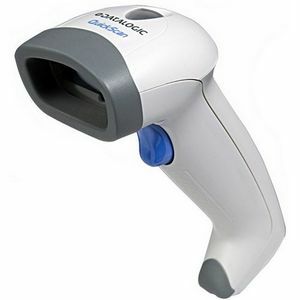

Datalogic QuickScan L: QD2300 Barcode Scanner Model Overview
The Datalogic QuickScan L: QD2300 barcode reader is a barcode scanner with laser technology at an affordable price. The QuickScan L: QD2300 reader is the perfect solution for general purpose users who prefer laser scanning technology and need to read barcodes at nominal distances. This scanner is lightweight and small with an ergonomic form factor which provides the user with ease of scanning during daily operations. The wider than usual scan angle allows users to read a longer barcode from a shorter distance. The gun shaped ergonomic design fits most users' hands comfortably and the scanner only weighs 4.5 oz / 128 gr (without the cable).
Datalogic QD2330-WHK1 Barcode Scanner Overview

The QuickScan L Bar Code Reader is a lightweight and small Reader with an ergonomic form factor which provides the user with ease of scanning in daily operations. The wider than usual scan angle allows users to read a longer bar code from a shorter distance. The QuickScan L reader was specially designed so that the end user can order a replacement window pack and replace the damaged window without having to send the scanner in for repairs saving time for the user and reducing the total cost of ownership (TCO).

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • Interleaved 2/5
  • Code 39 full ASCII
  • Code 39 TriOptic
  • Discrete 2/5
  • UPC/EAN with supplementals
  • UCC/EAN128
  • Code 128
  • Code 128 full ASCII
  • Code 93
  • CODABAR
  • Code MSI
  • Code 11
  • IATA
  • GS1 DataBar
  • Chinese 2 of 5
Light Source:
Laser
Scan Rate:
100 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 5.5"@5mil
  • 7.8"@7.5mil
  • 8.6"@10mil
  • 9.1"@13mil
  • 10.6"@20mil
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Handheld
Product Color:
White
Weight (Approximate):
4.50 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • RS-232
  • Keyboard Wedge
  • USB Keyboard
  • USB HID

USB Cable separate

Environmentally Friendly:
Yes
Item Numbers
GTIN: 3609740067709, 5052461753679
EAN: 3609740067709, 5052461753679
UNSPSC: 43211701
