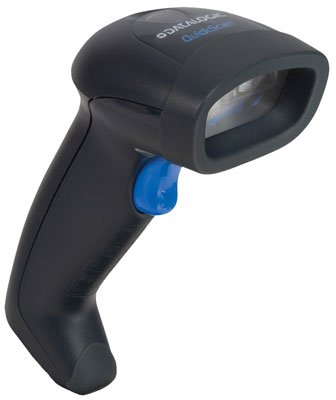

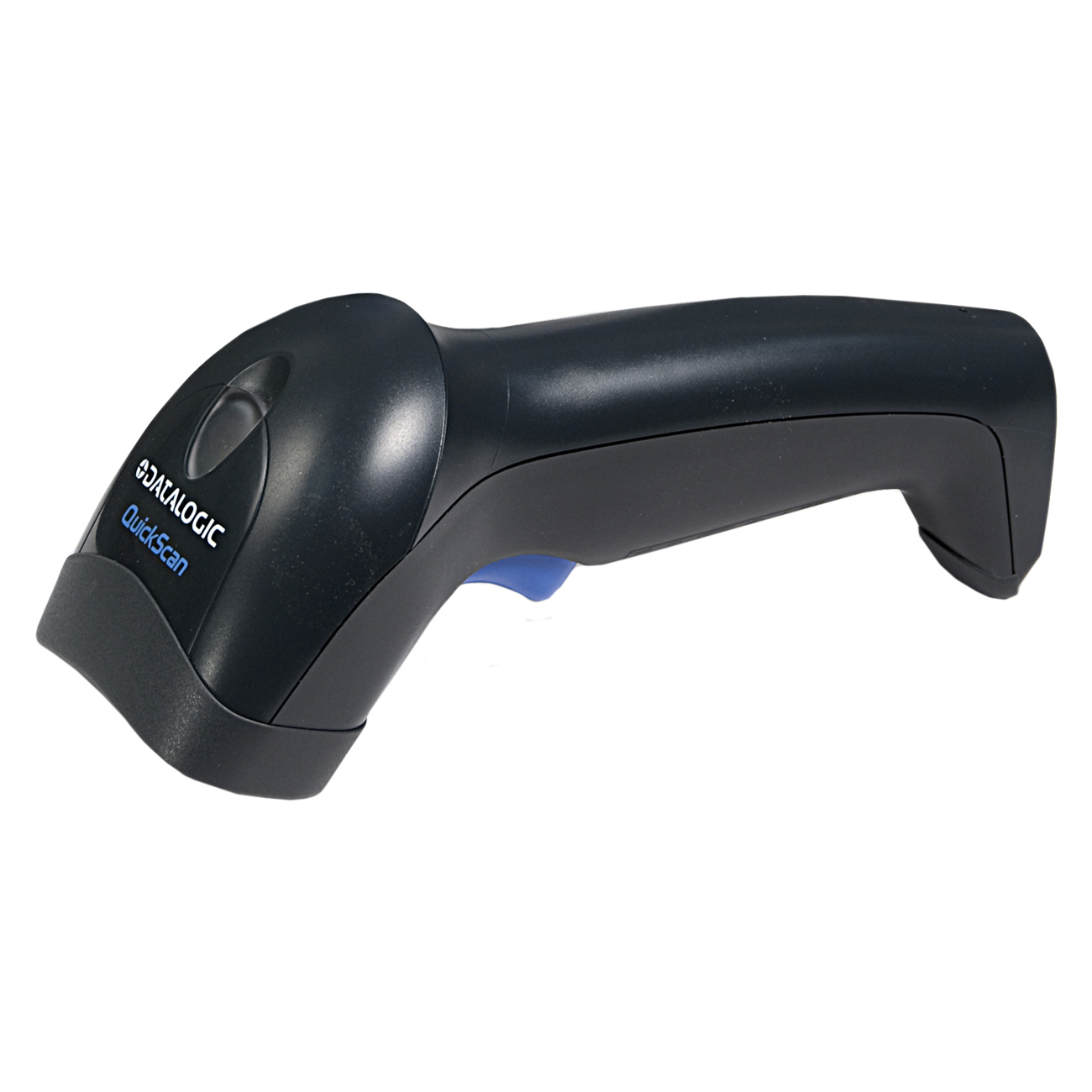

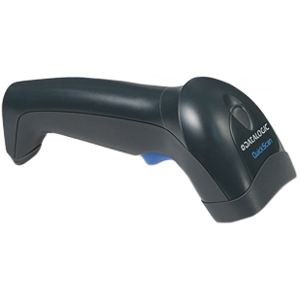

Datalogic QD2330-BKK3 Barcode Scanner

Datalogic QD2131-BKK3 Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic QD2131-BKK3 Barcode Scanner.
Datalogic QuickScan L: QD2300 - QuickScan D2330 Laser Kit (Keyboard Wedge and Cable) - Color: Black
  • Scan barcodes with a staggering speed of 100 scan/s
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More
Discontinued See Replacement
Add to Quote

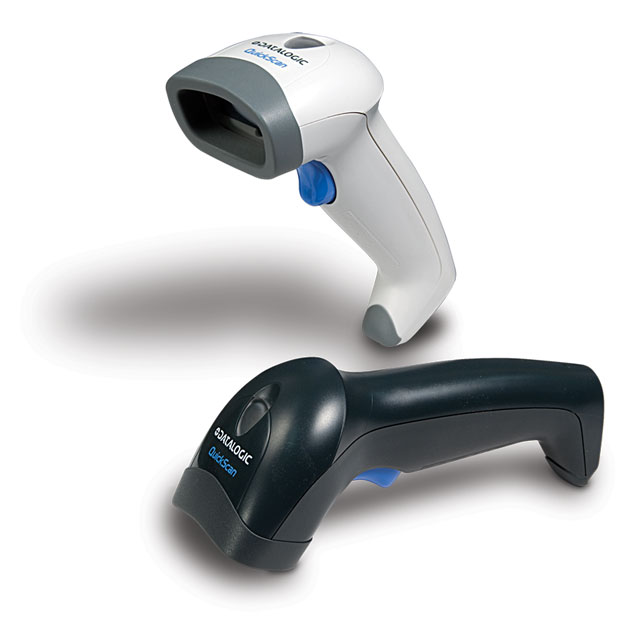

Datalogic QuickScan L: QD2300 Barcode Scanner Model Overview
The Datalogic QuickScan L: QD2300 barcode reader is a barcode scanner with laser technology at an affordable price. The QuickScan L: QD2300 reader is the perfect solution for general purpose users who prefer laser scanning technology and need to read barcodes at nominal distances. This scanner is lightweight and small with an ergonomic form factor which provides the user with ease of scanning during daily operations. The wider than usual scan angle allows users to read a longer barcode from a shorter distance. The gun shaped ergonomic design fits most users' hands comfortably and the scanner only weighs 4.5 oz / 128 gr (without the cable).
Datalogic QD2330-BKK3 Barcode Scanner Overview

The QuickScan L Bar Code Reader is a lightweight and small Reader with an ergonomic form factor which provides the user with ease of scanning in daily operations. The wider than usual scan angle allows users to read a longer bar code from a shorter distance. The QuickScan L reader was specially designed so that the end user can order a replacement window pack and replace the damaged window without having to send the scanner in for repairs saving time for the user and reducing the total cost of ownership (TCO).

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • Interleaved 2/5
  • Code 39 full ASCII
  • Code 39 TriOptic
  • Discrete 2/5
  • UPC/EAN with supplementals
  • UCC/EAN128
  • Code 128
  • Code 128 full ASCII
  • Code 93
  • CODABAR
  • Code MSI
  • Code 11
  • IATA
  • GS1 DataBar
  • Chinese 2 of 5
Light Source:
Laser
Scan Rate:
100 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 5.5"@5mil
  • 7.8"@7.5mil
  • 8.6"@10mil
  • 9.1"@13mil
  • 10.6"@20mil
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Weight (Approximate):
4.50 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • RS-232
  • Keyboard Wedge
  • USB Keyboard
  • USB HID

USB Cable separate

Environmentally Friendly:
Yes
Item Numbers
GTIN: 5052461753693
EAN: 5052461753693
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic QD2330-BKK3 Barcode Scanner is also known as DTL-QD2330-BKK3 or QD2330BKK3.
