Datalogic QuickScan 2200 Series – Barcode Scanner – Scanner Only

Part Number: QD2220-BK
Model: QuickScan 2200 Series
3-year Premium Plus ($66.92)
3-year Premium ($12.22)
No Support
Add to My Shopping List Add to Compare
$67.51
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D
Barcode Symbology Supported
1D / Linear Codes: ? Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
Light Source
LED

Product Description:

  Barcode Scanners, Datalogic QuickScan 2200 Series, QuickScan I QD2220, Linear Imager, USB Only, Black
Explore all Datalogic QuickScan 2200 Series Barcode Scanners
Add to Quote

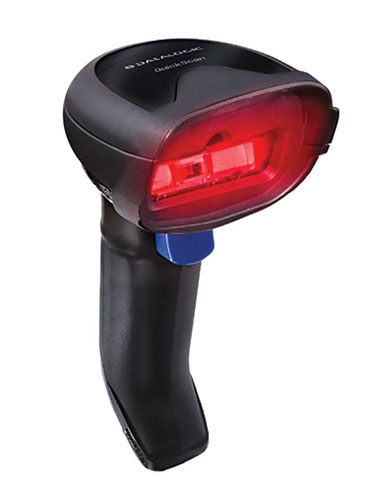

Datalogic QD2220-BK Barcode Scanner
Datalogic QD2220-BK Barcode Scanner
Datalogic QD2220-BK Barcode Scanner
Datalogic QD2220-BK Barcode Scanner Datalogic QD2220-BK Barcode Scanner Datalogic QD2220-BK Barcode Scanner
Full specifications (PDF)

Datalogic QuickScan 2200 Series Barcode Scanner Model Overview

The QuickScan™ QD2200 Series by Datalogic is an entry-level handheld imager designed for corded applications that efficiently handles 1D barcodes. With tailored linear imaging technology, this device excels in retail POS checkout situations and is robust enough to capture long barcodes with ease. Lightweight and user-friendly, it ensures rapid scanning and reliable performance, making it an ideal choice for businesses looking to enhance their checkout speed and accuracy without breaking the bank.


Key features
  • Lightweight and balanced design for comfortable handling
  • Extra-wide scan angle and extra-long scan line
  • Extended reading range and depth-of-field (DOF)
  • Datalogic's Green Spot technology for superior good-read feedback
  • USB interface, includes the latest USB-C
  • Aladdin TM 3.0 configurator for easy configuration
  • 5-Year Factory Warranty for peace of mind

Specifications
  • Decoding Capability: 1D/Linear Codes
  • Electrical:
    • Operating Current: <165 mA @ 5V
    • Input Voltage: 5 VDC +/- 5%
  • Environmental:
    • Ambient Light: 0 - 120,000 lux
    • Drop Resistance: 1.5 m / 5.0 ft
    • Humidity: 0-95% (Non-Condensing)
    • Sealing: IP42
  • Physical Characteristics:
    • Dimensions: 15.6 x 6.7 x 10.7 cm / 6.1 x 2.6 x 4.2 in
    • Weight: 123.0 g / 4.3 oz
  • Warranty: 5-Year Factory Warranty
Datalogic QD2220-BK Barcode Scanner Overview

TAILORED LINEAR IMAGING TECHNOLOGY

Today there is an increased trend towards 2D bar codes, however, linear bar codes are still widespread in Retail POS checkout applications. Long bar codes are also commonly used in a variety of applications including utility bills, document processing and packaging. These long barcodes are a challenge for full area imagers to read due to their narrow field-of-view and shorter depth-of-field.

THE MOST PROMPT RESPONSE AT THE POS CHECK-OUT

The QuickScan QD2200 imager is the 1D entry-level corded imager from Datalogic with a superior scanning performance in its category. It reliably reads any type of 1D barcode from up close to a distance with ease in capturing long bar codes

Unlike other devices on the market, this imager provides full control to the operator, from the linear aiming to the most prompt visual and audible good-read feedback. It seamlessly reads through plexiglass barriers and can scan electronic coupons from smartphone screens at an incredibly affordable price.

COMFORT AND RELIABILITY

Lightweight and easy to handle, the QuickScan QD2200 is very responsive at the pull of the trigger, providing a superior robustness for this class of products where the device is mostly stressed, because of the accurate design and quality of parts.

Offering simple configuration and ease of use, this robust entry-level scanner delivers continuous operation capabilities with no failures.

Finally, the QuickScan QD2200 imager will prove to be the best longterm choice, by cutting down-time, no read/misread management time, and service costs.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

1D / Linear Codes:

  • ? Auto discriminates all standard 1D codes including GS1 DataBar&trade; linear codes.
Light Source:
LED
Image Sensor Type:
  • Imager
  • CCD
Scan Mode:
Trigger
Scan Pattern:
Linear
Scanner Range:
Standard Range
Reading Angle (Skew):
65°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
45°
Motion Tolerance:
40 in/s
Maximum Ambient Light:
120000 lux
Drop Specification:

Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.

Minimum Print Contrast:
15%
Minimum Element Resolution (Code 39):
4 mil
Maximum Element Resolution (Code 39):
20 mil
Illumination Type:
LED
Illumination Color:
Red
Interfaces/Ports
Host Interface:
USB
Power Description
Input Current:
165 mA
Standby Current:
40 mA
Environmental Conditions
Operating Temperature:
32°F (0°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Weight (Approximate):
4.34 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP42
Application/Usage:
  • Retail
  • Industrial
  • Commercial Service
  • Hospitality
  • Government
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (9)
  • Mounting Hardware and Stands (5)
  • Scanner Accessories (12)

Recommended Accessories for Model: Datalogic QD2220-BK Barcode Scanner

Top Cables, Connectors, and Adapters Purchased With Datalogic QD2220-BK

See All Cables, Connectors, and Adapters for Datalogic QD2220-BK Barcode Scanner >

Top Mounting Hardware and Stands Purchased With Datalogic QD2220-BK

See All Mounting Hardware and Stands for Datalogic QD2220-BK Barcode Scanner >

Top Scanner Accessories Purchased With Datalogic QD2220-BK

See All Scanner Accessories for Datalogic QD2220-BK Barcode Scanner >

Frequently Asked Questions

The QD2220 is a linear imager that reads all standard 1D barcode symbologies, including GS1 DataBar linear codes, postal codes, and stacked codes. This makes it ideal for retail POS environments where 1D barcodes remain the standard, and it can even read barcodes through plexiglass barriers for maximum flexibility in your work environment.

Yes, the QD2220 is built for durability with an IP42 rating for particulate and water sealing, and it withstands repeated drops from 1.5 meters (5 feet) onto concrete surfaces. The scanner also features a user-replaceable window pack, which lowers your cost of ownership by allowing you to replace damaged scan windows without replacing the entire unit.

The QD2220-BK model features USB connectivity, making it straightforward to integrate into your existing POS or warehouse management systems. This wired connection ensures reliable, uninterrupted data transmission without the complexity of wireless pairing.

The QD2220 features Datalogic's patented 'Green Spot' technology that provides visual feedback directly on the barcode, combined with an adjustable audible beeper for good-read confirmation. In Stand Mode, the Green Spot remains illuminated to show operators exactly where to position the code for quick and intuitive reading.

The QD2220 operates in temperatures from 0 to 50°C (32 to 122°F) with humidity tolerance of 5-95% non-condensing, and can handle ambient light up to 100,000 lux. It also provides 16 kV ESD protection and maintains reading performance across pitch angles of ±65°, roll of ±45°, and skew of ±70°.

The QD2220 represents Datalogic's refined approach to 1D scanning with improved ergonomic design for comfortable all-day use, enhanced reading performance on hard-to-read barcodes, and the durable user-replaceable window pack design that reduces long-term service costs. Contact us today to learn how this scanner can reduce downtime and misreads in your retail or warehouse operations.

The Datalogic QD2220-BK Barcode Scanner is also known as DTL-QD2220BK or QD2220BK.
