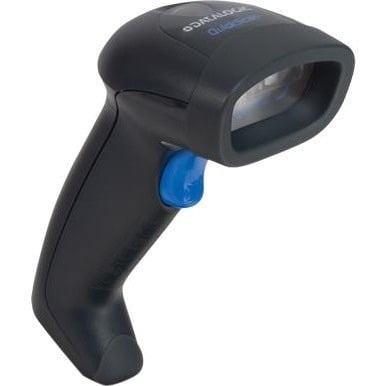

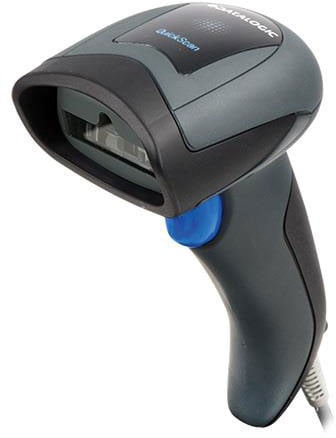

Datalogic QuickScan QD2131 – Barcode Scanner – Corded – 1D

Part Number: QD2131-BKK1S
Model: QuickScan I QD2131

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
USB
Scanner Capability
1D

Product Description:

  Corded Barcode Scanner, Datalogic QuickScan QD2131, 1D Linear Imager, General Purpose, Handheld, USB Kit with 90A052258 Cable and Stand, Black, 270 Scans/Second

Datalogic QuickScan QD2131 Barcode Scanner Model Overview

The PD3000 Series Customer Displays offer outstanding performance with a clear, bright optical display that ensures visibility in any environment. With a digit height of 0.20 inches and a resolution of 20 digits in two rows, this display efficiently communicates essential information to customers. Designed for versatility, it supports both serial and parallel interfaces, making it suitable for a wide range of applications. The robust construction ensures durability even in demanding settings, while the easy-to-use command sets enhance its adaptability.

Key Features:
  • 20 Digits per Row across 2 rows for effective customer communication
  • High Brightness display (200 fl) for superb visibility
  • Versatile Connectivity options with both Serial and Parallel interfaces
  • Long Life Span with MTBF rated at 300,000 hours
  • Adaptable Command Set for emulating other pole displays

Specifications:
  • Optical:
    • Digit Height: 0.20 in. (5.0mm)
    • Digit Width: 0.14 in. (3.5mm)
    • Brightness: 200 fl (690 cd/m2) max.
    • Display Color: Green
  • Mechanical:
    • Weight: 2.7 lbs.
    • Dimensions: 7.87 x 3.37 x 1.75 inches
    • Base Plate: 2.12 x 2.00 x 2.25 inches
    • Overall Height: 8.00 inches
  • Environmental:
    • Operating Temperature: 0 to +50°C
    • Storage Temperature: -20 to +70°C
    • Relative Humidity: 85% max. non-condensing
  • Electrical:
    • Input Power: 120VAC, 60Hz. or 220VAC, 60Hz. (optional)
    • Output Power: 6.0VAC, 1000ma.
Datalogic QD2131-BKK1S Barcode Scanner Overview
The QuickScan reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan I QD2100 linear imaging reader is an entry level product that is perfect for use in retail and office environments plus activities associated with couriers and postal services.

The QD2100 is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance especially on hard to read bar codes and is capable of reading a wide range of symbologies including the majority of 1D codes plus GS1 DataBar™ linear codes. The QD2100 reader features Datalogic's exclusive patented 'Green Spot' for good read feedback directly on the code. When in Stand Mode, the Green Spot remains on to show the operator where to position the code for quick and intuitive reading.

Like the QuickScan L reader, the QD2100 has been designed with durability in mind. One of the most vulnerable features of any scanner is damage to the scan window. When such incidents happen, the scanner may have to be replaced. The QD2100 was specifically designed so that a replacement window pack can be ordered to replace damaged or scratched windows without having to send the scanner away for repairs. This helps to reduce the total cost of ownership during the life of the scanner and helps to ensure that it is always available for use.
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
1D / LINEAR CODES
  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
POSTAL CODES
  • China Post
STACKED CODES
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Image Sensor Type:
Imager
Scan Rate:
270 scan/s
Scanner Range:
Extended Range
Scanning Distance:
29.53"
Cable Type Included:
USB
Stand Included:
Yes
Reading Angle (Skew):
70°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
45°
Maximum Ambient Light:
120000 lux
Drop Specification:
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Minimum Print Contrast:
25%
Minimum Element Resolution (Code 39):
4 mil
Maximum Element Resolution (Code 39):
20 mil
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
7.3"
Width:
3.9"
Length:
8.7"
Weight (Approximate):
4.30 oz
Miscellaneous
Additional Information:

USB Cable separate

Ingress Protection (IP) Rating:
IP42
Application/Usage:
  • Industrial
  • Retail
  • Inventory
Platform Supported:
  • iOS
  • Android
Country of Origin:
Vietnam
Item Numbers
GTIN: 0028595561003, 0053926383764, 0088064293088, 4250389269406, 5712505728451
UPC: 028595561003, 053926383764, 088064293088, 783555143261
EAN: 0028595561003, 0053926383764, 0088064293088, 4250389269406, 5712505728451
UNSPSC: 43211701
