Datalogic QD2130-WHK1S Barcode Scanner

Datalogic QD2131-WHK1S Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic QD2131-WHK1S Barcode Scanner.
Datalogic QuickScan I QD2100 - Datalogic QuickScan QD2130 Bar Code Reader - Linear
  • Creates a high ROI because of diminishment in workforce and descend inventory errors
  • Scan barcodes with a staggering speed of 270 scan/s
  • Allows productive and precise reading of 1D barcodes
  • Laser-free design provides high-performance scanning without the risk of eye injury
Read More
Discontinued See Replacement
Add to Quote

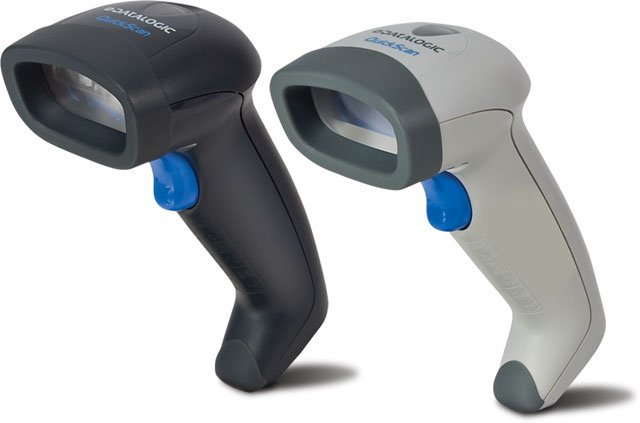

Datalogic QuickScan I QD2100 Barcode Scanner Model Overview
The Datalogic QuickScan I QD2100 linear imaging reader is an entry level product perfect for use in retail and office environments plus activities associated with couriers and postal services. The QuickScan I QD2100 is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance especially on hard to read barcodes and is capable of reading a wide range of symbologies including the majority of 1D codes plus GS1 DataBar linearcodes. The Datalogic QuickScan I QD2100 reader features Datalogic's exclusive patented 'Green Spot' for good read feedback directly on the code. When in Stand Mode, the Green Spot remains on to show the operator where to position the code for quick and intuitive reading.
Datalogic QD2130-WHK1S Barcode Scanner Overview

The QuickScan QD2130 Bar Code Reader is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance especially on hard to read bar codes and is capable of reading a wide range of symbologies including the majority of 1D codes plus GS1 DataBar linear codes. The QuickScan QD2130 Bar Code Reader features Datalogic's exclusive patented 'Green Spot' for good read feedback directly on the code. When in Stand Mode, the Green Spot remains on to show the operator where to position the code for quick and intuitive reading.

Technical Information
Scanning Capability:
1D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

Postal Codes:

  • China Post

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
270 scan/s
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 0.8" - 4.3"@4mil
  • 0.6" - 6.0"@5mil
  • 0.3" - 10.0"@7.5mil
  • 0.3" - 15.0"@10mil
  • 0.7" - 18.0"@13mil
  • 1.0" - 26.0"@20mil
Cable Type Included:
USB
Stand Included:
Yes
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Product Color:
White
Height:
6.7"
Width:
2.8"
Depth:
2.6"
Weight (Approximate):
4.30 oz
Miscellaneous
Package Contents:
  • QuickScan QD2130 Bar Code Reader

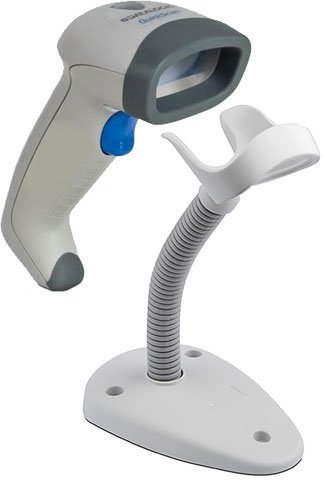

  • USB Cable and Stand
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 5051964550457
EAN: 5051964550457
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic QD2130-WHK1S Barcode Scanner is also known as DTL-QD2130-WHK1S or QD2130WHK1S.
