You've just added this product to the cart:

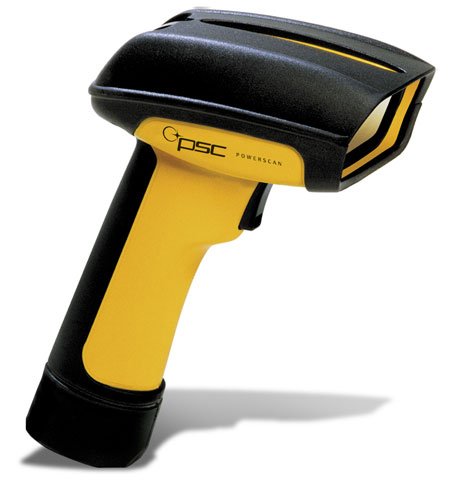

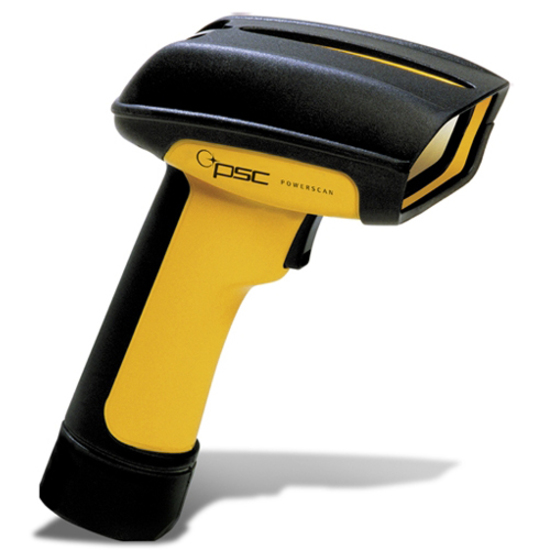

Datalogic PSSR-1000-02 Barcode Scanner

Datalogic PowerScan - Standard range with RS-232 interface. Includes RS-232 cable (Part# 8-0423-80) and US power supply.
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Scan barcodes with a staggering speed of 37 scan/s
Read More

Full specifications (PDF)

Designed from the ground up to meet the demands of industrial users.
The PowerScan family of handheld laser barcode scanners has been specifically designed "from the ground up" to meet the demands of industrial users. In this tough environment, the right tool makes all the difference. With a PowerScan scanner on the job, you'll have one of the toughest, most reliable tools around. Each unit ships with one user's guide.
Datalogic PSSR-1000-02 Overview

The PowerScan Standard Range Industrial Bar Code Reader belongs to the family of handheld laser Bar Code Readers has been designed "from the ground up" to meet the demands of industrial users. In this tough environment, the right tool makes all the difference. With a PSC PowerScan scanner on the job, you'll have one of the toughest, most reliable tools around.

Protect Your Product

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Code 39
  • Code 39 Full ASCII
  • Code 93
  • Code 128
  • Codabar
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • JAN-8
  • JAN-13
  • MSI/PLESSEY
  • Pharmacode 39
  • Standard 2 of 5
  • UPC-A
  • UPC-E
  • Code 128 EAN Add-ons
  • UPC/EAN 5 Digit Add-on
  • UPC/EAN 2 Digit Add-on
Light Source:
Laser
Scan Rate:
37 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 3" - 6"@5mil
  • 2" - 10"@7.5mil
  • 1" - 16"@10mil
  • 0.5" - 27"@15mil
  • 0.5" - 36"@20mil
  • 5" - 48"@40mil
  • 6" - 60"@55mil
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
14 V DC
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
Handheld
Color:
  • Black
  • Yellow
Height:
7.2"
Width:
2.7"
Depth:
4.4"
Weight (Approximate):
9.90 oz
Miscellaneous
Package Contents:
  • PowerScan Standard Range Industrial Bar Code Reader
  • CD
  • Power Supply
  • 12" DB9 Cable
Additional Information:

Supported Interface:

RS-232

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories for Model: Datalogic PowerScan Barcode Scanner

Category

  • Accessories (67)
  • Batteries (2)
Recommended Accessories for Model: Datalogic PowerScan Barcode Scanner

Accessories

Datalogic (8-0736-80)
Cable, Datalogic PowerScan 2D, RS-232, Coiled, External Power, 9D Serial, 12 ft
In Stock: Ships Same Day
$27.45
+ Add to Quote
Datalogic PowerScan Accessories (7-0404)
Take Up Reel, Datalogic Powerscan, Industrial
In Stock: Ships Same Day
$75.94
+ Add to Quote
Datalogic PowerScan Accessories (11-0339)
Accessory (Holder Bucket) for the PS7000
Datalogic (891000094)
Cable Retainer Spacer (5 PCS) for the PowerScan
Datalogic (1002135)
PART, END CAP, TETHERED, RoHS POWERSCAN
Datalogic (90ACC1963)
90ACC1963 Data Transfer Cable Adapter - Data Transfer Cable
Datalogic (11-0111)
Mount, PowerScan PD7100 series, Universal mounting kit
Ships in 3-5 Days
$22.53
+ Add to Quote
Datalogic (8-0734-10)
Cable, 6 ft, USB (PC) cable, Straight, Black, for QS6, QS25, PowerScan
Datalogic (8-0738-17)
Keyboard wedge Cable - mini-DIN (PS/2) - 11 ft.
Datalogic (8-0736-01)
Cable, 8 ft, 25-pin Female, RS-232 cable, for QS100/6000/PowerScan, Requires power supply
Datalogic (8-0738-01)
Cable assembly, 12 ft, Keyboard wedge, 5/6-pin Din, IBM, AT / PS/2, POT, E/P
PSC (8-0424-16)
Unicable, 12 ft., 25 Pin D order together with CWPoweredUSBO1.5 for USB operation of scanner
Ships in 3-5 Days
$60.53
+ Add to Quote
Datalogic (11-0133)
PowerScan stand, Autosense
Datalogic (8-0424-21)
Keyboard wedge Cable - DIN Male - mini-DIN (PS/2) Female - 23 ft.
Datalogic (8-0740-09)
Wand Emulation cable - 8 ft. Data Transfer Cable
Datalogic (8-0742-51)
12 feet, Undecoded, 8 Pin Fisher POT, for the PowerScan/QuickScan1K and QuickScan 6K
Datalogic (11-0139)
Heated Holder, Datalogic Powerscan, 24VDC, (not for use with PBT8300-D/-DK models)
Ships in 3-5 Days
$388.09
+ Add to Quote
Datalogic (11-0140)
Heated Holder, Datalogic Powerscan, 48VDC, for the PowerScan (not for use with PBT8300-D/-DK models)
Ships in 3-5 Days
$393.42
+ Add to Quote
Datalogic (94508)
End Cap Kit (for the PowerScan)
Datalogic (4004-0794)
120V US power supply, Wall mount, for QS6/PowerScan/VS800/Duet
Datalogic (8-0742-15)
Cable Assembly, 8 feet, DB-9P, Intermec, Black, For the PowerScan
Datalogic (11-0070)
Scan Stand for the PowerScan Imager
Datalogic (11-0191)
Universal mounting kit for the PowerScan
Datalogic (7-0477)
7-0477 PSC PowerScan Scanner Stand
Datalogic (R44-2094)
Manual User's Guide (Included with product) - English
Datalogic (R44-2172)
Programming Guide - English
Datalogic (08246-02)
Mounting Bracket for heated holder
Datalogic (11-0060)
Powerhood accessory kit for the PowerScan
Datalogic (192758)
Battery pack, Quick change, NiMH, for the PowerScan RF
Datalogic (7-0660)
Heated Holder for the PowerScan and 53IP90, 48 Volt
Datalogic (8-0419-27)
Cable, 12 ft, Undecoded, 7-pin, LXE1280, POT, for the PowerScan
Datalogic (8-0419-55)
Cable assembly, 8 ft, Undecode, 7D, P, TEK 7025/8045 POT, Coiled
Datalogic (8-0422-03)
Wand emulation cable, 8 ft., 6-pin RJ, for UBI terminal
Datalogic (8-0422-05)
Cable for the PowerScan, QS1000 and QS6000, 12 feet, Wand Emulation, 9-Pin Din, Squeeze
Datalogic (8-0423-23)
RS-232 Serial Cable - DB-25 Male Serial - DB-25 Male - 8 ft.
Datalogic (8-0423-39)
Cable, 8 ft, 9-pin Female, RS-232 cable, for QS1000/6000/PowerScan, Requires power supply
Datalogic (8-0736-39)
8-0736-39 Data Transfer Cable - 8 ft. Serial Data Transfer Cable - 9-pin DB-9 Serial
Datalogic (8-0736-54)
Serial cable - 25 ft. Serial Data Transfer Cable - First End: 1 x DB-9 Serial
Datalogic (8-0738-26)
Keyboard wedge Cable - RJ45 - RJ45 - 20 ft.
Datalogic (8-0740-11)
Cable, 8 ft, Wand emulation, 8-pin RJ, POT, TKLNX/Telxon RO, for the QS1K/QS6K and PowerScan
Datalogic (PSB-1100)
Base, Powerscan RF, RS/N.AM, MEX
Datalogic (1053269)
Metal Strips (5-Pack- Attach Rings to Hang Unit) for the PowerScan
Datalogic (4004-0709)
Power supply (Wall Mount, 220V - Europe) for the PowerScan
Datalogic (8-0423-48)
Cable (12 feet, 6-Pin Mini Data Card) for the PowerScan
Datalogic (8-0577-07)
Cable Assembly (8 feet, RS-232, 9D-S 9D-P, Y-cable) use with PowerScan
Datalogic (8-0738-24)
Cable (15 feet, Keyboard wedge, 5/6Din, IBM PS/2, POT) for the PowerScan
Datalogic (R44-2766)
PowerScan Programming Guide Printed Manual
Datalogic (CWPUSBO1.5)
USB adapter cable - must order 8-0424-16 cable to enable USB operation of scanner
Datalogic (10-2749)
Part - Cable Retainer (5-Pack) for the PowerScan
Datalogic (8-0424-06)
Keyboard wedge direct connect cable, 12 ft., PS/2 (for use with laptops)
Datalogic (7-0658)
Heated Holder works with PowerScan and 5300, 24 Volt
Datalogic (8-0424-03)
Keyboard wedge POT Cable - DIN Male - mini-DIN (PS/2) Male - 11 ft.
Datalogic (7-0462)
Universal Mounting Kit For New Part# 11-0191
Datalogic (7-0430)
Holster/Fork Lift Mount
Datalogic (4004-0705)
Power supply, wall-mount, with US power cord. Backordered, see replacement Part Number.
Datalogic (8-0740-03)
Wand emulation cable, 8 ft., 6-pin RJ, for UBI terminal.
Datalogic (11-0095)
Autosense Stand for PowerScan
Datalogic (8-0423-80)
RS-232 cable, DB9 with external power jack. Power supply not included. See (Part# 4004-0705) (wall plug) or (Part# 4004-0710) (desktop style with AC line cord).
Datalogic (8-0423-47)
Cable, 12 ft, 9-pin D, RS-232, Terminal at Pin 9, for PowerScan/QS1000/6000
Datalogic (8-0419-51)
Cable, 12 ft, Undecoded, 8-pin fisher POT, for the PowerScan/QuickScan1000/QuickScan6000 and Symbol VRC
Datalogic (8-0419-39)
DLS Powerscan 12' 7 PIN DIN plug for TEKLOGIX 7025/8025
Datalogic (8-0423-95)
Cable Assembly (8 feet, RS, Micro, DB-9, POT) for the Dolphin 7400
PSC (8-0422-02)
Wedge emulation cable, 8 ft., 9-pin D-Sub
Datalogic (8-0740-18)
Cable, 8 ft, Wand emulation, 10-pin RJ, for the PowerScan, QS1000 and QS6000Plus
Datalogic (7-0519)
PowerScan Holster Kit, Replaces 7-0430
Datalogic (8-0736-08)
Cable for the PowerScan/QS1000/QS6000, 12 feet, RS-232, 25 Pin D, Power Off External
Datalogic (11-0138)
Heater Holder (36 Volt) Works with PowerScan/5300. (not for use with PBT8300-D/-DK models)

Batteries

Datalogic (RBP-PM91-LK)
PowerScan RBP-9001 Battery Pack, 3550 mAh PLUS, Locking System
In Stock: Ships Same Day
$62.30
+ Add to Quote
Datalogic (RBP-PM91)
PowerScan RBP-9001 Battery Pack, 3550 mAh PLUS
Ships in 3-5 Days
$54.50
+ Add to Quote

The Datalogic PSSR-1000-02 is also known as Data Logic PSC-PSSR100002 or PSSR100002 .
