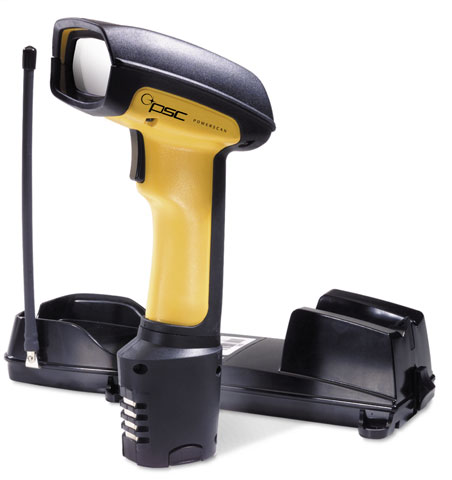

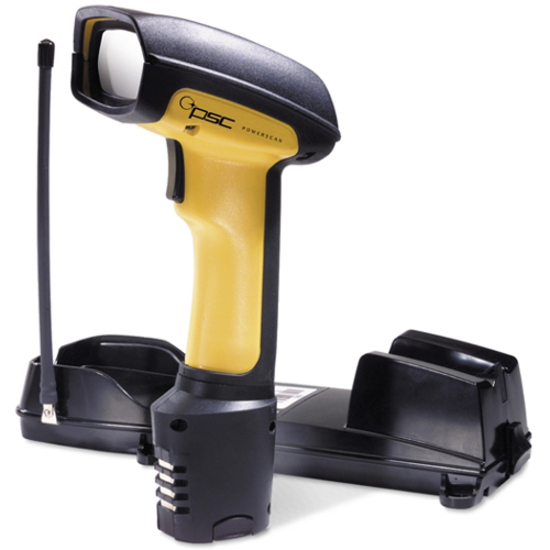

Datalogic PSRF-8100 Barcode Scanner

The Datalogic PSRF-8100 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic PowerScan RF - Datalogic PowerScan RF HD Bar Code Reader - Wireless
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Scan barcodes with a staggering speed of 37 scan/s
  • Increase productivity and performance by excluding the cable
Read More
Discontinued Need Assistance?
Add to Quote
Datalogic PowerScan RF Barcode Scanner Model Overview
With the PowerScan RF wireless scanner, you now have the freedom to go where the work is, not the other way around. Now you only have to take the 27.5 oz. (0.8 kg) PowerScan RF scanner to the 500 lb. (227 kg) pallet; not the pallet to the scanner. Utilizing the latest in Radio Frequency (RF) technology, the PowerScan RF has a range of up to 150.0' (45.7 m). This allows you the freedom to scan pallets at the other end of the loading dock or boxes at the end of a warehouse aisle up to 150.0 (45.7 m) from your fork truck. Its unique acknowledgment tone lets you know that your data transmission was successful. With multi-point capability the PowerScan RF allows you to assign multiple scanners to a single base station thereby increasing throughput and reducing the cost of additional base stations and host terminals. Each unit ships with one user's guide.
Datalogic PSRF-8100 Barcode Scanner Overview

Freedom, Are restrictive interface cables keeping you from doing business the way you want? Are you restricted to scanning only in the 25' / 7.6 m area around your host terminal? Well, not anymore! with the PSC PowerScan RF wireless scanner (High Density), you now have the freedom to go where the work is, not the other way around. Now you only have to take the 12.7 oz./360 g PowerScan RF scanner to the 500 lb. / 227 kg pallet not the pallet to the scanner.

Technical Information
Connectivity Technology:
Wireless
Barcode Symbology Supported:
  • UPC/EAN/JAN
  • Code 39 Full ASCII
  • Code 39
  • Codabar
  • Code 128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • MSI/PLESSEY
  • Pharmacode 39
  • EAN-128
Light Source:
Laser
Scan Rate:
37 scan/s
Maximum Scan Resolution:
10 mil
Depth of Field:
  • 1.25" - 2"@2.5mil - Code 39
  • 1" - 2.25"@3mil - Code 39
  • 1" - 3"@4mil - Code 39
  • 0.7" - 4"@5mil - Code 39
  • 0.5" - 4.5"@7.5mil - Code 39
  • 0.5" - 5"@10mil - Code 39
Scanning Distance:
150 ft
Network & Communication
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
110 V AC
Battery Information
Battery Chemistry:
Nickel Metal Hydride (NiMH)
Physical Characteristics
Form Factor:
Handheld
Height:
9.4"
Width:
2.8"
Depth:
4"
Weight (Approximate):
12.70 oz
Miscellaneous
Package Contents:
  • PowerScan RF High Density Bar Code Reader
  • Battery
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • USB
  • Certifications & Standards:

    Electrical:

    • UL
    • TÜV
    • cUL

    Emissions:

    • FCC -A
    • EN 55022-B
    • BCIQ CNS13438
    • AS/NZS 3548

    Laser Classification:

    • CDRH Class II (CAUTION: Laser Radiation - do not stare into beam)
    • IEC 60825 Class 2

    Radio:

    • ETSI-ETS-300 220
    • FCC Part 15.249
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Datalogic PSRF-8100 Barcode Scanner is also known as PSC-PSRF8100 or PSRF8100.
