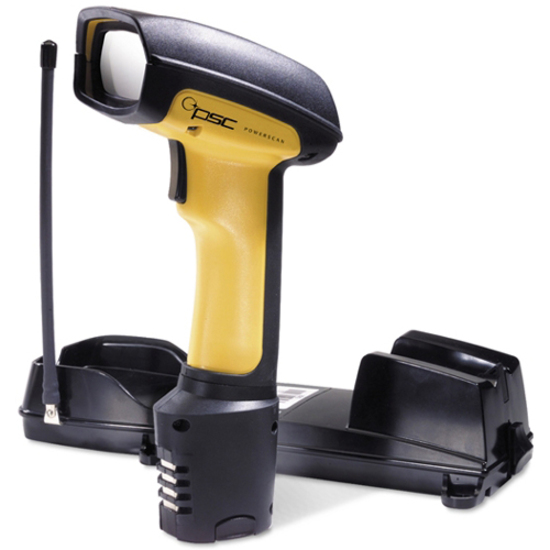

Datalogic PSRF-1000-01 Barcode Scanner

Datalogic PowerScan RF - PowerScan RF 1000 Barcode Reader - Wireless
  • Increases productivity by giving the opportunity to wander, without the tangle of cables
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Scan barcodes with a staggering speed of 37 scan/s
  • Bluetooth technology - Allows compatibility with most of your smart devices
Read More

Full specifications (PDF)

A wireless barcode scanner to go where the work is.
With the PowerScan RF wireless scanner, you now have the freedom to go where the work is, not the other way around. Now you only have to take the 27.5 oz. (0.8 kg) PowerScan RF scanner to the 500 lb. (227 kg) pallet, not the pallet to the scanner. Utilizing the latest in Radio Frequency (RF) technology, the PowerScan RF has a range of up to 150.0' (45.7 m). This allows you the freedom to scan pallets at the other end of the loading dock or boxes at the end of a warehouse aisle up to 150.0 (45.7 m) from your fork truck. Its unique acknowledgment tone lets you know that your data transmission was successful. With multi-point capability the PowerScan RF allows you to assign multiple scanners to a single base station thereby increasing throughput and reducing the cost of additional base stations and host terminals. Each unit ships with one user's guide.

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • Pharmacode 39
    • UPC/EAN/JAN
    • Code 39
    • Standard 2 of 5
    • Code 93
    • Code 39 Full ASCII
    • Codabar
    • Code 128
    • UPC
    • Interleaved 2 of 5
    • MSI/PLESSEY
  • Scanner Type: Laser
  • Scan Rate: 37 scan / sec
  • Interface Options: Keyboard Wedge
  • Interface Connectivity: Cordless
  • Cordless Range: 46m
  • Input Voltage Range: 7.5 to 14 V DC
  • Depth of Field:
    • 3.0 - 6.0"@5mils - Standard Range (Decoded, Code 39)
    • 2.0 - 10.0"@7.5mils
    • 1.0 - 16.0"@10mils
    • 0.5 - 27.0"@15mils
    • 0.5 - 36.0"@20mils
    • 5.0 - 48.0"@40mils
    • 6.0 - 60.0"@55mils
    • 1.25 - 2.0"@2.5mils - High Density (Decoded, Code 39)
    • 1.0 - 2.25"@3mils
    • 1.0 - 3.0"@4mils
    • 0.7 - 4.0"@5mils
    • 8 - 13"@7.5mils - Long Range (Decoded, Code 39)
    • 9 - 7.0"@40mils
    • 15 - 9.0"@55mils
    • 3.3 - 5.0"@15mils - Extra Long Range (Decoded, Code 39)
    • 2.3 - 12.0"@40mils
    • 3.3 - 15.0"@55mils

General Information

  • Manufacturer: Datalogic S.p.A
  • Product Line: PowerScan
  • Product Name: PowerScan RF 1000 Barcode Scanner

Physical Characteristics

  • Weight:
    • 12.7 oz - Scanner
    • 16 oz - Base Station
  • Color:
    • Yellow
    • Black

Agency Approvals

  • Agency Approvals:
    • Complies to: TÜV
    • UL
    • cUL
    • Complies to: FCC A
    • EN 55022 B
    • BCIQ CNS13438
    • AS/NZS 3548
    • CDRH Class II
    • XLR model is Class IIIA. (CAUTION: Laser Radiation do not stare into beam)
    • IEC 60825 Class 2
    • Model with 433MHz radio complies to EU RoHS

Other

  • Package Contents:
    • PowerScan RF 1000 Barcode Scanner
    • Base
    • Power Supply
    • Battery
    • Cable

Environmental Conditions

  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 3 Year(s)
Protect Your Product

Full specifications (PDF)

Brand Datalogic
Model PowerScan RF
