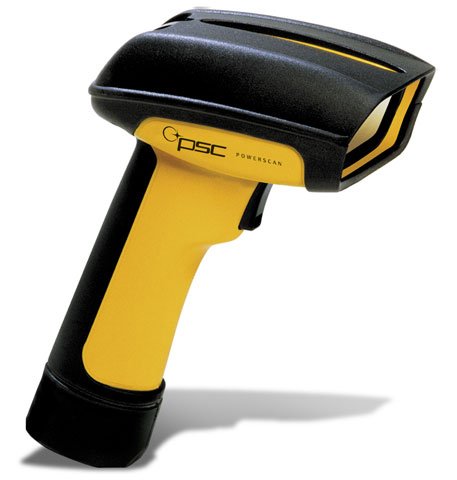

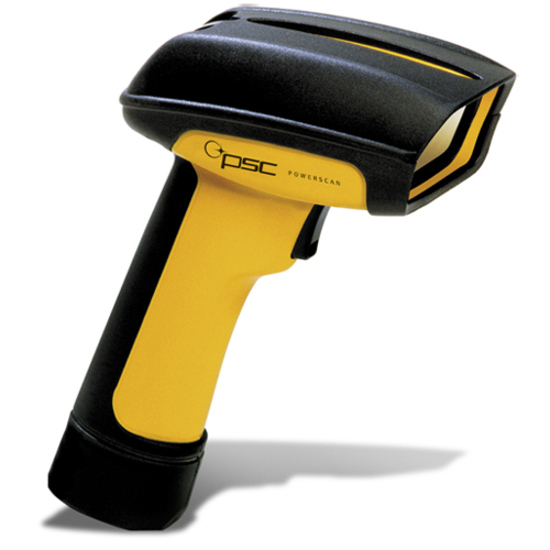

Datalogic PSHD-1000 Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Datalogic PowerScan - High density, Keyboard wedge, RS-232 & wand emulation interfaces. Order cables separately. See accessories. See PSC PowerWedge for required decoder (for wand emulation operation).
Designed from the ground up to meet the demands of industrial users.

The PowerScan family of handheld laser barcode scanners has been specifically designed "from the ground up" to meet the demands of industrial users. In this tough environment, the right tool makes all the difference. With a PowerScan scanner on the job, you'll have one of the toughest, most reliable tools around. Each unit ships with one user's guide.

Technical Information

  • Form Factor: Handheld Scanner
  • Symbologies Supported:
    • UPC-A
    • UPC-E
    • JAN-8
    • JAN-13
    • EAN-13
    • EAN-8
    • Code 39 Full ASCII
    • Code 39
    • Codabar
    • Code 128
    • Code 93
    • Interleaved 2 of 5
    • Standard 2 of 5
    • MSI/PLESSEY
    • Pharmacode 39
    • UPC/EAN 5 Digit Add-on
    • UPC/EAN 2 Digit Add-on
    • BC 412 (Special order)
    • Code 128 EAN Add-ons
  • Scanner Type: Laser
  • Scan Rate: 37 Scans/sec
  • Interface Options:
    • Keyboard Wedge
    • RS-232
  • Interface Connectivity: Corded
  • Input Voltage Range: 4 to 14 V DC
  • Depth of Field:
    • 1.25 - 2"@2.5mils - Paper Labels
    • 1.0 - 2.25"@3mils - Paper Labels
    • 1.0 - 3.0"@4mils - Paper Labels
    • 0.7 - 4"@5mils - Paper Labels
    • 0.5 - 4.5"@7.5mils - Paper Labels
    • 0.5 - 5.0"@10mils - Paper Labels

General Information

  • Manufacturer:
  • Product Line: PowerScan
  • Product Name: PowerScan High Density Industrial Barcode Scanner

Physical Characteristics

  • Weight: 9.9 oz - Without cable

Agency Approvals

  • Agency Approvals:
    • Gost R
    • UL
    • TUV
    • cUL
    • FCC -A BCIQ CNS13438
    • EN 55022-B
    • AS/NZS 3548
    • VCCI-B
    • CDRH Class 2
    • IEC 60825 Class 2
    • Caution: Laser Light Avoid Direct Eye Exposure
    • FCC -A BCIQ CNS13438

Environmental Conditions

  • Temperature:
    • -30°C (-22°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 3 Year(s)

Full specifications (PDF)
