Datalogic PS72-3100-0300-303 Barcode Scanner

The Datalogic PS72-3100-0300-303 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic PowerScan 7000 - Datalogic PowerScan 7000 2D Bar Code Reader - Wired
  • Creates a high ROI because of diminishment in workforce and descend inventory errors
  • Scan barcodes with a staggering speed of 500 scan/s
  • Allows productive and precise reading of 1D barcodes
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Powerful laser scan source provides 500 scan/s decode rate
  • Perfect for applications that require direct association with a workstation or a notebook
Read More

Need a different version? See all Datalogic PowerScan 7000 Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Datalogic PS72-3100-0300-303 Barcode Scanner
Datalogic PS72-3100-0300-303 Barcode Scanner Datalogic PS72-3100-0300-303 Barcode Scanner Datalogic PS72-3100-0300-303 Barcode Scanner
Datalogic PS72-3100-0300-303 Barcode Scanner
Datalogic PS72-3100-0300-303 Barcode Scanner
Datalogic PS72-3100-0300-303 Barcode Scanner
Full specifications (PDF)
Datalogic PowerScan 7000 Barcode Scanner Model Overview

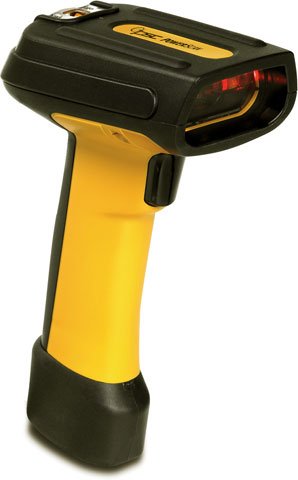

The PowerScan 7000 Standard Range Linear Imaging Scanner (SRI) is the most rugged, durable and reliable industrial handheld scanner on the market. It has a protective overmold to protect it from drops and to seal it from dust and water and can operate between -30 degrees C and 50 degrees C. The PowerScan 7000 can scan up to 500 scans per second and is available in multiple connections, including USB, RS-232, Keyboard Wedge and more. The PowerScan 7000 is perfect for package handling and tracking, warehouse applications, shipping and receiving, manufacturing shop floor and other demanding applications.
Datalogic PS72-3100-0300-303 Barcode Scanner Overview

The PowerScan 7000 2D Imager offers best performance, features and durability. There is not a more rugged 2D scanner on the market, and the PowerScan 7000 2D even reads OCR fonts in addition to all of the other 1D and 2D labels. It is industry leading environmental performance in shock/drop, sealing and temperature extremes. It is high performance image capture and omni-directional, point-and-shoot label reading.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Code 11
  • RSS
  • Code 39
  • Code 93
  • Code 128
  • Codabar
  • Code 2 of 5
  • UPC/EAN/JAN
  • Interleaved 2 of 5
  • PDF 417
  • Micro PDF
  • Code 49
  • MaxiCode
  • DataMatrix
  • EAN-UCC Composite
  • Aztec Mesas
  • Aztec
  • QR Code
  • Postnet
  • Canadian Post
  • British Post
  • China Post
  • Japanese Post
  • Kix
  • Planet Code
  • OCR-A
  • OCR-B
Light Source:
Laser
Image Sensor Type:
Imager
Scan Rate:
500 scan/s
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 2.6" - 4.2"@6.6mil - Code 39
  • 1.8" - 5"@8.3mil - PDF417
  • 1" - 7.9"@10mil - Code 39
  • 2.4" - 4.7"@13mil - Data Matrix
  • 1.2" - 6.6"@15mil - PDF417
  • 1" - 7.9"@35mil - UPC
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
14 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
  • Yellow
  • Black
Height:
7.5"
Width:
3"
Depth:
4.5"
Weight (Approximate):
10 oz
Miscellaneous
Package Contents:
  • PowerScan 7000 2D Bar Code Reader
  • 12 Ft. Long Mini-Din Cable
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • USB

    • Certifications & Standards:

    Electrical:

    • TÜV
    • UL
    • cUL

    Emissions:

    • FCC
    • EN 55022-B
    • CNS 13438
    • AS/NZS 3548
    • VCCI

    Restriction of Hazardous Substances:

    • RoHS
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Datalogic PS72-3100-0300-303 Barcode Scanner is also known as PSC-PS7231000300303
