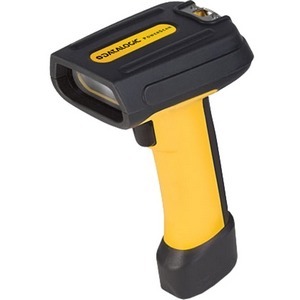

Datalogic PS72-2000-0200-201 Barcode Scanner

The Datalogic PS72-2000-0200-201 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Datalogic PowerScan 7000 - Standard Range Imager, USB kit. Includes USB cable (Part# 8-0734-08). Color: Yellow/Black

Scanner Capability

Creates a high ROI because of diminishment in workforce and descend inventory errors
Allows productive and precise reading of 1D barcodes
LED aimer is a perfect choice for patient-facing applications
Perfect for applications that require direct association with a workstation or a notebook

Need a different version? See all Datalogic PowerScan 7000 Barcode Scanners

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Datalogic PS72-2000-0200-201 Barcode Scanner

Overview

Full specifications (PDF)

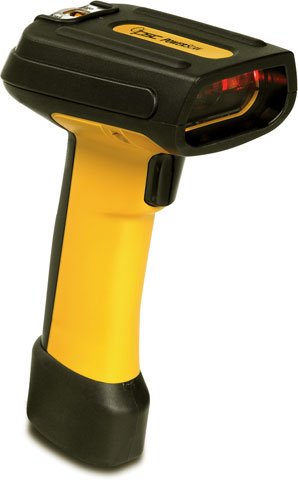

Datalogic PowerScan 7000 Barcode Scanner Model Overview

The PowerScan 7000 Standard Range Linear Imaging Scanner (SRI) is the most rugged, durable and reliable industrial handheld scanner on the market. It has a protective overmold to protect it from drops and to seal it from dust and water and can operate between -30 degrees C and 50 degrees C. The PowerScan 7000 can scan up to 500 scans per second and is available in multiple connections, including USB, RS-232, Keyboard Wedge and more. The PowerScan 7000 is perfect for package handling and tracking, warehouse applications, shipping and receiving, manufacturing shop floor and other demanding applications.

Datalogic PS72-2000-0200-201 Barcode Scanner Overview

PSC is pleased to announce the new 2D imaging scanner in the PowerScan 7000 family of industrial handheld scanners. These new 2D scanners carry on the strong PowerScan brand, while raising the bar for performance and ruggedness. The PowerScan 7000 2D employs the latest solid state area imaging technology to offer industry leading 2D imaging and read performance in the most durable handheld scanner on the market.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

Code 11
Code 128
UPC/EAN/JAN
RSS
Code 39
Codabar
Interleaved 2 of 5
Code 93
Code 2 of 5
PDF 417
MaxiCode
Aztec Mesas
Aztec
Micro PDF
DataMatrix
EAN-UCC Composite
Code 49
QR Code
Postnet
Canadian Post
British Post
China Postal Code
Japanese Post
Kix
Planet Code
OCR-A
OCR-B

Light Source:

LED

Maximum Scan Resolution:

6.60 mil

Depth of Field:

2.5" - 6.6"@8mil - Linear
1.5" - 11.5"@13mil - UPC
3.5" - 5.3"@6.6mil - PDF417
2.7" - 5.5"@15mil - Data Matrix
1" - 12"@35mil - Maxi Code

Scan Pattern:

Linear

Interfaces/Ports

Host Interface:

Multi-interface

Power Description

Input Voltage:

14 V DC

Physical Characteristics

Form Factor:

Handheld

Product Color:

Yellow
Black

Height:

7.5"

Width:

Depth:

4.5"

Weight (Approximate):

9.60 oz

Miscellaneous

Package Contents:

PowerScan 7000 Bar Code Reader
12ft USB Series A POT Cable

Additional Information:

Supported Interfaces:

Serial
USB

USB Cable separate

Certifications & Standards:

Vibration: Meets MIL-STD-810E
Water & Dust: IEC529 Rating IP54DW

Electrical:

TÜV
UL
cUL

Emissions:

FCC
EN 55022-B
CNS13438
AS/NZS 3548
VCCI

Warranty

Limited Warranty:

5 Year

Item Numbers

GTIN: 5711045844997

EAN: 5711045844997

UNSPSC: 43211701
