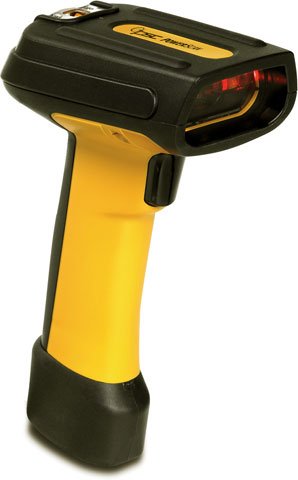

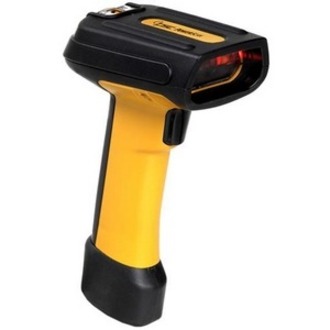

Datalogic PS72-1000-1101-106 Barcode Scanner

The Datalogic PS72-1000-1101-106 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic PowerScan 7000BT - PowerScan 7000 2D Imager (2D, RS, SR, US, RS/UPS, E/P-12, Y/B)
  • Allows productive and precise reading of 1D barcodes
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • LED aimer is a perfect choice for patient-facing applications
  • Perfect for applications that require direct association with a workstation or a notebook
Read More

Need a different version? See all Datalogic PowerScan 7000BT Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Datalogic PS72-1000-1101-106 Barcode Scanner
Datalogic PS72-1000-1101-106 Barcode Scanner Datalogic PS72-1000-1101-106 Barcode Scanner Datalogic PS72-1000-1101-106 Barcode Scanner Datalogic PS72-1000-1101-106 Barcode Scanner Datalogic PS72-1000-1101-106 Barcode Scanner
Datalogic PS72-1000-1101-106 Barcode Scanner
Datalogic PS72-1000-1101-106 Barcode Scanner
Datalogic PS72-1000-1101-106 Barcode Scanner
Datalogic PS72-1000-1101-106 Barcode Scanner
Datalogic PS72-1000-1101-106 Barcode Scanner
Full specifications (PDF)
Datalogic PowerScan 7000BT Barcode Scanner Model Overview
The Datalogic PowerScan 7000BT is extremely popular for heavy-duty use because its solid state design and IP65 dust & water rating make it the most rugged unit on the market. Decode 1D and PDF codes while traveling freely up to 328' (100m) from the base station. The PowerScan 7000BT is the Bluetooth-enabled scanner that will get the job done. Datalogic is a part of Datalogic Scanning, Inc, the recognized worldwide leader in high-performance data capture.
Datalogic PS72-1000-1101-106 Barcode Scanner Overview

The PowerScan 7000 2D Imager offers best-in-class performance, features and durability. There is not a more rugged 2D scanner0 on the market, and the PowerScan 7000 2D even reads OCR fonts in addition to all of the other 1D and 2D labels.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • RSS
  • Code 11
  • Code 39
  • Code 93
  • Codabar
  • Code 128
  • Code 2 of 5
  • UPC/EAN/JAN
  • Interleaved 2 of 5
  • PDF 417
  • Micro PDF
  • Code 49
  • MaxiCode
  • DataMatrix
  • EAN-UCC Composite
  • Aztec Mesas
  • Aztec
  • QR Code
  • Postnet
  • Canadian Post
  • British Post
  • China Post
  • Japanese Post
  • Kix
  • Planet Code
  • OCR-A
  • OCR-B
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 3.5" - 5.2"@6.6mil
  • 2.5" - 6.6"@8.3mil - Code 39
  • 2.1" - 8"@10mil - PDF417
  • 1.1" - 12.2"@13mil - UPC
  • 1.3" - 9.2"@15mil - Data Matrix
  • 1" - 12"@35mil - Maxi Code
Scan Pattern:
Omni-directional
Cable Type Included:
Serial
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
14 V DC
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
Handheld
Product Color:
  • Yellow
  • Black
Height:
7.5"
Width:
3"
Depth:
4.5"
Weight (Approximate):
10 oz
Miscellaneous
Package Contents:
  • PowerScan 7000 Bar Code Reader
  • 12' RS-232 Cable
  • European Power Supply
Additional Information:

USB Cable separate

Certifications & Standards:

Electrical:

  • TÜV
  • UL
  • cUL

Emissions:

  • FCC
  • EN 55022-B
  • CNS 13438
  • AS/NZS 3548
  • VCCI

Restriction of Hazardous Substances:

  • RoHS
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic PS72-1000-1101-106 Barcode Scanner is also known as DTL-PS7210001101106
