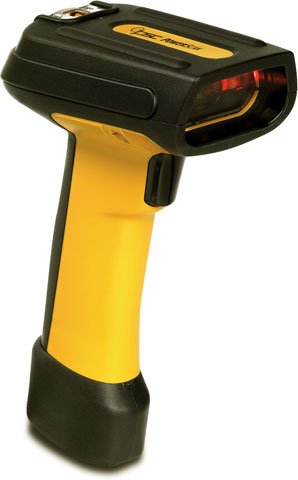

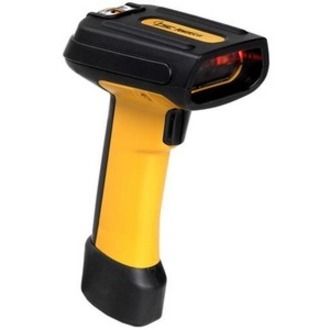

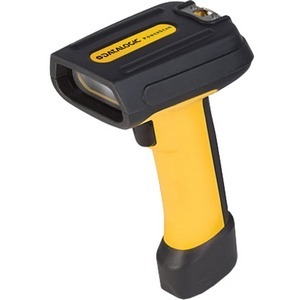

Datalogic PS72-1000-1100-106 Barcode Scanner

The Datalogic PS72-1000-1100-106 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Datalogic PowerScan 7000 - PowerScan 7000 SRI Industrial Strength Imaging Scanner (2D, RS-232, Standard Range, US Power supply and Cable) - Color: Yellow/Black

Scanner Capability

At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
Incredible and responsive 2D scanning even on curved or translucent surfaces
Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
LED aimer is a perfect choice for patient-facing applications
Perfect for applications that require direct association with a workstation or a notebook

Need a different version? See all Datalogic PowerScan 7000 Barcode Scanners

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Datalogic PS72-1000-1100-106 Barcode Scanner

Overview

Full specifications (PDF)

Datalogic PowerScan 7000 Barcode Scanner Model Overview

The PowerScan 7000 Standard Range Linear Imaging Scanner (SRI) is the most rugged, durable and reliable industrial handheld scanner on the market. It has a protective overmold to protect it from drops and to seal it from dust and water and can operate between -30 degrees C and 50 degrees C. The PowerScan 7000 can scan up to 500 scans per second and is available in multiple connections, including USB, RS-232, Keyboard Wedge and more. The PowerScan 7000 is perfect for package handling and tracking, warehouse applications, shipping and receiving, manufacturing shop floor and other demanding applications.

Datalogic PS72-1000-1100-106 Barcode Scanner Overview

The PowerScan 7000 2D Imager offers best-in-class performance, features and durability. There is not a more rugged 2D scanner on the market, and the PowerScan 7000 2D even reads OCR fonts in addition to all of the other 1D and 2D labels.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

Code 11
RSS
Code 39
Code 93
Code 128
Codabar
Code 2 of 5
UPC/EAN/JAN
Interleaved 2 of 5
PDF 417
Micro PDF
Code 49
MaxiCode
DataMatrix
EAN-UCC Composite
Aztec
Aztec Mesas
QR Code
Postnet
Canadian Post
British Post
China Post
Japanese Post
Kix
Planet Code
OCR-A
OCR-B

Light Source:

LED

Image Sensor Type:

Imager

Maximum Scan Resolution:

6.60 mil

Depth of Field:

3.5" - 5.2"@6.6mil
2.5" - 6.6"@8.3mil - Code 39
2.1" - 8"@10mil - PDF417
1.1" - 12.2"@13mil - UPC
1.3" - 9.2"@15mil - Data Matrix
1" - 12"@35mil - Maxi Code

Cable Type Included:

Serial

Interfaces/Ports

Host Interface:

Serial

Power Description

Input Voltage:

14 V DC

Power Supply Included:

Yes

Physical Characteristics

Form Factor:

Handheld

Product Color:

Black
Yellow

Height:

7.5"

Width:

Depth:

4.5"

Weight (Approximate):

10 oz

Miscellaneous

Package Contents:

PowerScan 7000 Bar Code Reader
12 feet RS-232 Cable
European Power Supply

Additional Information:

USB Cable separate

Certifications & Standards:

Restriction of Hazardous Substances:

RoHS

Electrical:

TÜV
UL
cUL

Emissions:

FCC
EN 55022-B
CNS 13438
AS/NZS 3548
VCCI

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

5 Year

Item Numbers

GTIN: 5711045936593

EAN: 5711045936593

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Datalogic PS72-1000-1100-106 Barcode Scanner is also known as PSC-PS7210001100106 or PS7210001100106.
